RECEIVE AND TRANSMIT
The memory keyer memorizes and can re-transmit 4
CW key codes for often-used CW sentences, antenna
types, etc. Total capacity of the memory keyer is 55
characters in each memory channel.
• Programming the memory keyer
q Push [CW] to select CW mode.
w Push [KEYER] to select keyer set mode.
e Push [ (F-2) EDIT] to enter the memory keyer edit
screen.
r Push [M1...M4] one or more times to select the de-
sired keyer memory channel.
t Input the desired character by pushing the charac-
ter keys (as shown above) one or more times or by
pushing the band key for number input.
- Push [ (F-1) Ω ] or [ (F-2) ≈ ] for cursor movement.
- Push [ (F-3) DEL] to delete the selected character.
- Push [ (F-4) SPACE] to input a space.
- “ ” is for contact numbers and can be input for the
count up trigger channel (underlined memory channel).
y Repeat step t until the desired contents are input.
u Push [M1...M4] to select next memory channel and
repeat step
t for character input, if desired.
i Push [ (F-5) EXIT] to exit the memory keyer edit
screen.
• Transmitting memory keyer contents
q Push [CW] to select CW mode.
w Push [KEYER] to select keyer set mode.
e Push [ (F-1) SEND] to enter the memory keyer
screen.
r Push [ (F-1) M1] – [ (F-4) M4] momentarily to transmit
the contents one time; push these keys for 2 sec.
to transmit the contents repeatedly.
- “M1”–“M4” are highlighted while transmitting.
- “M1”–“M4” blink while transmitting repeatedly.
- Set the repeat interval of the memory keyer to 1, 2, 10
or 30 sec. See the the previous page for keyer set
mode.
- To count down the contact number, push [COUNT–1].
t Push [ (F-5) EXIT] to exit memory keyer screen.
• Setting the contact (serial) number
Contact number can be automatically transmitted
from one of the memory keyer channels. The morse
cut numbers can be used as the contact numbers.
The maximum number for contact numbers is 9999.
q Push [CW] to select CW mode.
w Push [KEYER] to select keyer set mode.
e Push [ (F-3) 001] to enter contact number screen.
r Rotate the tuning dial to select the cut number
type, if desired.
- “
NORMAL
” does not use morse cut numbers.
- “ 190 → ANO ” sets 1 as A, 9 as N and Ø as O.
- “ 190 → ANT ” sets 1 as A, 9 as N and Ø as T.
- “ 90 → NO ” sets 9 as N and Ø as O.
- “
90 → NT
” sets 9 as N and Ø as T.
t Push [F-2] to select the “Count up trigger” item.
y Rotate the tuning dial to select the desired mem-
ory channel for contest numbers.
u Push [ (F-5) EXIT] to exit keyer set mode.
• Clearing contact numbers
q Push [CW] to select CW mode.
w Push [KEYER] to select keyer set mode.
e Push [ (F-3) 001] to enter the contact number screen.
r Push [ (F-4) 001CLR] for 2 sec. to clear the contact
number.
t Push [ (F-5) EXIT] to exit keyer set mode.
001CLR 001CLR
BK-IN BK-IN
OFF OFF
AGC AGC
MID
MID [CONTACT NUMBER (001)] [CONTACT NUMBER (001)]
EXIT EXIT ≥ ≥ DEF DEF ≤ ≤
N u m b e r s t y l e 1 9 0 ˘ A N T
M 2
0 0 1
C o u n t u p t r i g g e r
P r e s e n t n u m b e r
001CLR 001CLR
BK-IN BK-IN
OFF OFF
AGC AGC
MID
MID [CONTACT NUMBER (001)] [CONTACT NUMBER (001)]
EXIT EXIT ≥ ≥ DEF DEF ≤ ≤
N u m b e r s t y l e 1 9 0 ˘ A N T
M 2
0 0 1
C o u n t u p t r i g g e r
P r e s e n t n u m b e r

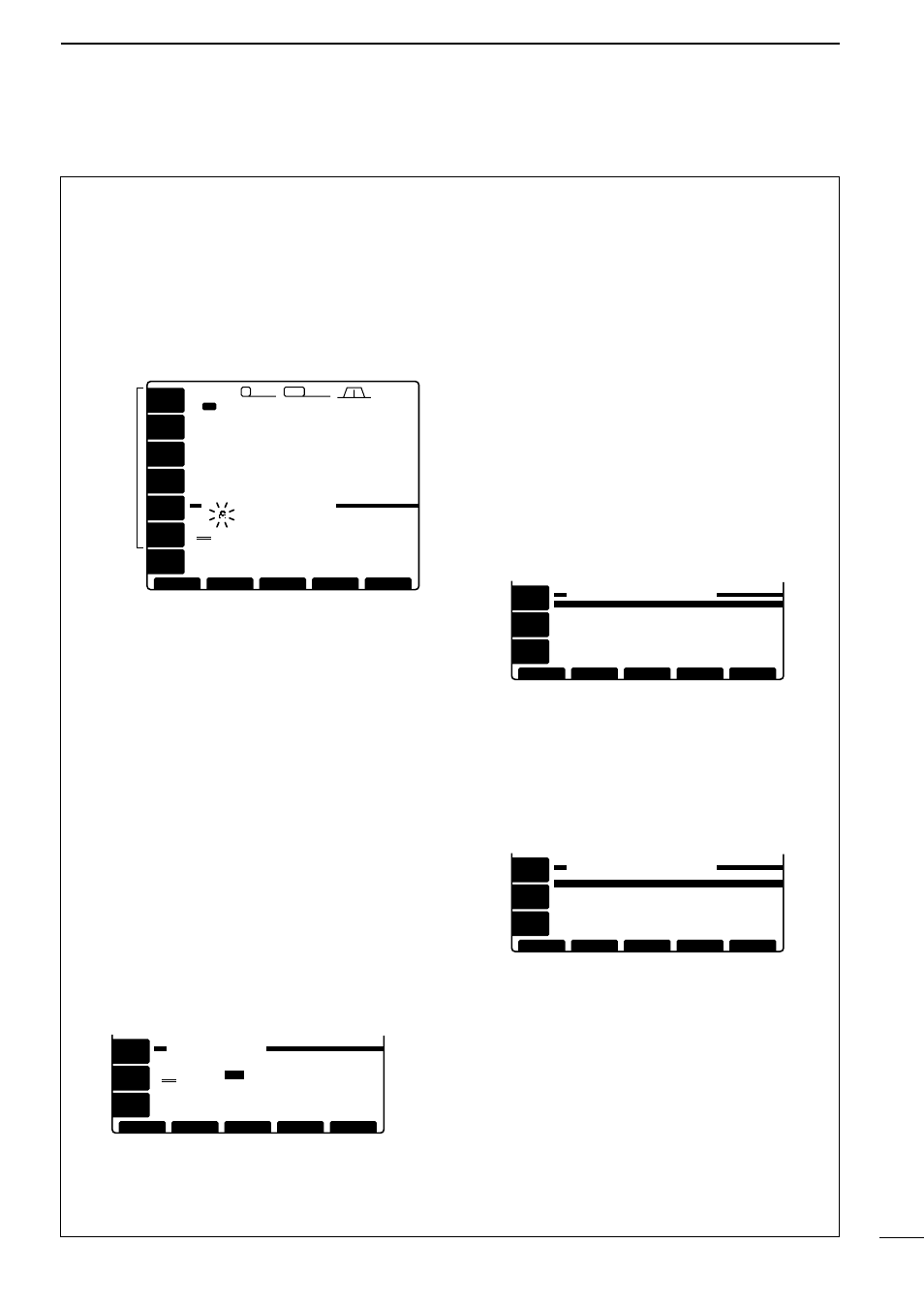

■ Memory keyer
