16
2
INSTALLATION AND CONNECTIONS

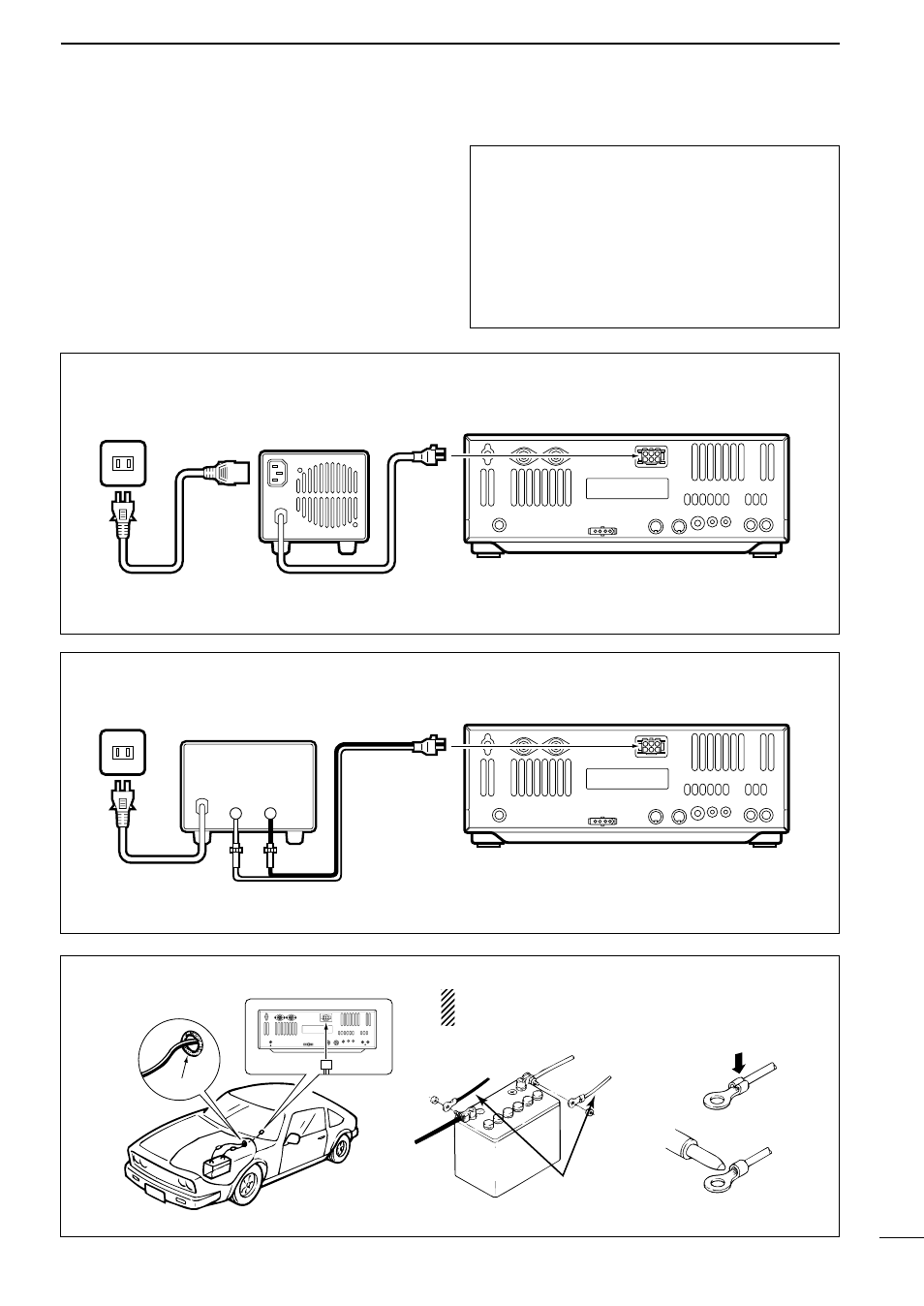

■ Power supply connections
Use an optional PS-85 DC POWER SUPPLY , etc. when
operating the transceiver with AC power. Refer to the
diagrams below.
CONNECTING AN ICOM DC POWER SUPPLY
to DC power socket
PS-85
AC outlet
AC cable
Transceiver
CONNECTING A NON-ICOM DC POWER SUPPLY
to DC power
socket
Non-Icom power supply
AC outlet
AC cable
20 A fuses
Supplied
DC power cable
13.8 V 20 A
Black
_
Red
+
Transceiver
CONNECTING A VEHICLE BATTERY
12 V
battery
Supplied
DC power cable
+ red
- black
Crimp
Solder
Grommet
CAUTION: Before connecting the DC power cable,
check the following important items. Make sure:
• The [POWER] switch is OFF.
• Output voltage of the power source is 12–15 V when you
use a non-Icom power supply.
• DC power cable polarity is correct.
Red : positive + terminal
Black : negative _ terminal
NEVER connect
to a 24 V battery.
NOTE: Use terminals for
the cable connections.
