38
4
RECEIVE AND TRANSMIT
A repeater amplifies received signals and retransmits
them at a different frequency. When using a repeater,
the transmit frequency is shifted from the receive fre-
quency by an offset frequency. A repeater can be ac-
cessed using split frequency operation with the shift
frequency set to the repeater’s offset frequency.
NOTE: For accessing a repeater which requires a
subaudible tone, set the subaudible tone frequency
in set mode. Refer to p. 57.
q Set the offset frequencies (HF, 50 MHz) and turn
ON the quick split function in set mode in advance.
w Push [VFO/MEMO] to select VFO mode.
e Push the desired band key.
r Push [FM] to select FM mode.
t Set the receive frequency (repeater output fre-
quency).
y Push [SPLIT] for 2 sec. to start repeater operation.
- Subaudible tone encoder is turned ON automatically.
- Shifted transmit frequency and
“ ” appear in the sub
readout.
- The transmit frequency can be monitored while push-
ing [XFC] or using dualwatch.
u Push and hold [PTT] to transmit; release [PTT] to
receive.
i To return to simplex, push [SPLIT] momentarily to
clear the sub display.
TX TX

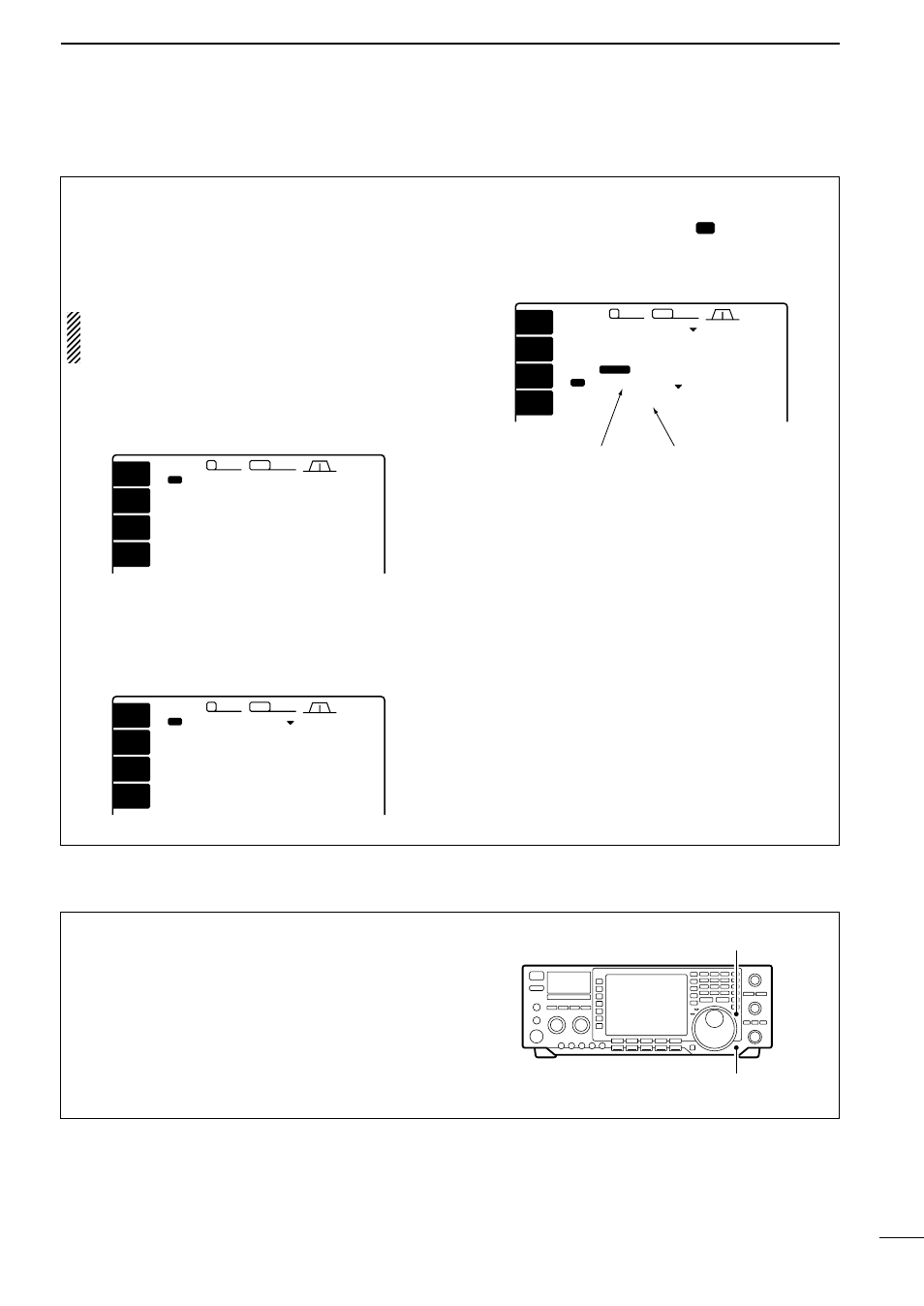

■ Repeater operation
1ß
29.680.00 29.680.00 VFO VFO
USB USB
FM-T FM-T
14.100.00 14.100.00
29.580.00
USB USB
FM-T FM-T
14.100.00 14.100.00
VFO VFO
ANT ANT
1
METER METER
Po Po
P.AMP P.AMP
OFF OFF
ATT ATT
OFF
OFF
2.4k 2.4k 9 2.8k 2.8k 455 455 12:34 12:34
SPLIT SPLIT
T X
1ß
Tone encoder is auto-
matically turned ON. Shifted frequency appears.
1ß
29.680.00 VFO VFO
USB USB
FM FM
14.100.00 14.100.00
14.205.00 14.205.00
USB USB
USB USB
14.100.00 14.100.00
T X
ANT ANT
1
METER METER
Po Po
P.AMP P.AMP
OFF OFF
ATT ATT
OFF
OFF
2.4k 2.4k 9 2.8k 2.8k 455 455 12:34 12:34
VFO VFO
1Я
1Я
21.290.00 VFO VFO
USB USB
USB USB
14.100.00 14.100.00
14.205.00 14.205.00
USB USB
USB USB
14.100.00 14.100.00
T X
ANT ANT
1
METER METER
Po Po
P.AMP P.AMP
OFF OFF
ATT ATT
OFF
OFF
2.4k 2.4k 9 2.8k 2.8k 455 455 12:34 12:34
VFO VFO
1ß
The dial lock function prevents accidental changes
caused by the tuning dial. The lock function electron-
ically locks the dial.
• Push [LOCK] to toggle the dial lock function ON and
OFF.
- The [LOCK] indicator lights when the dial lock function is
in use.
■ Dial lock function
[LOCK] switch
[LOCK] indicator
