65
10

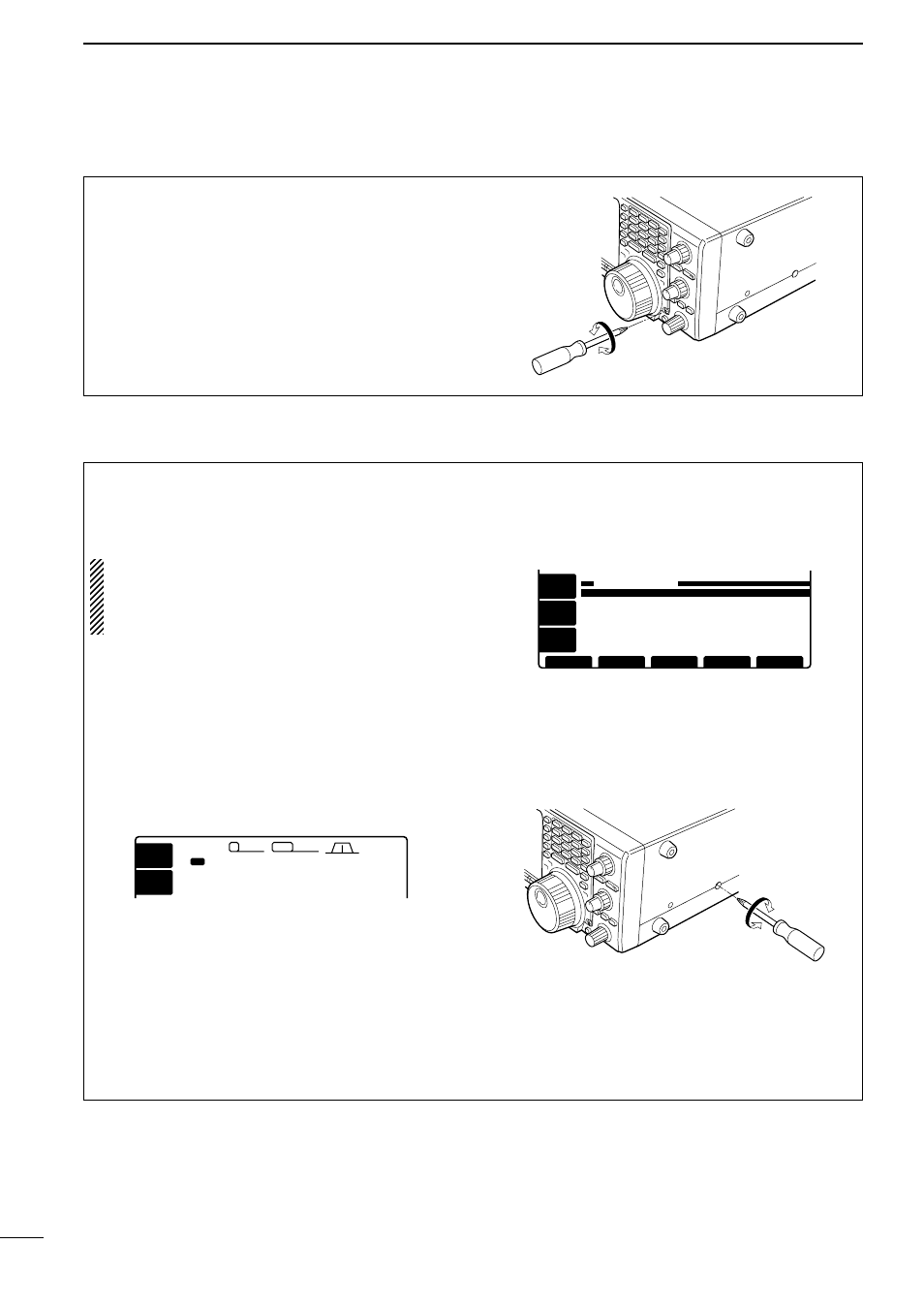

MAINTENANCE
The tension of the tuning dial may be adjusted to suit
your preference.
The brake adjustment screw is located on the right
side of the tuning dial. See the figure at right.
Turn the brake adjustment screw clockwise or coun-
terclockwise to obtain a comfortable tension level
while turning the dial continuously and evenly in one
direction.
■ Tuning dial brake adjustment
Light
Heavy
A very accurate frequency counter is required to cali-
brate the frequency of the transceiver. However, a
rough check may be performed by receiving radio sta-
tion WWV, or other standard frequency signals.
CAUTION: Your transceiver has been thoroughly
adjusted and checked at the factory before being
shipped. You should not calibrate frequencies, ex-
cept for special reasons.
q Push [SSB] to select USB mode. Make sure the
[TWIN PBT] controls are set to the center position
and RIT/
∂ TX function is not activated.
w Set the frequency to the standard frequency sta-
tion minus 1 kHz.
- When receiving WWV (10.000.00 MHz) as a standard
frequency, set the operating frequency for 9.999.00
MHz.
- Other standard frequencies can also be used.
e If the start up screen is not selected (if [F-5]’s func-
tion is [EXIT]), push [F-5] one or more times to exit.
r Push [ (F-5) SET] to select the set mode screen.
t Push [ (F-4) OTHERS] to enter miscellaneous (oth-
ers) set mode.
y Push [ (F-1) Y ] several times to select the “Calibra-
tion marker” item.
u Rotate the tuning dial clockwise to turn the calibra-
tion marker ON.
- Side tone may be heard.
i Adjust the calibration pot on the right side panel of
the transceiver for a zero beat with the received
standard signal as shown below.
- Zero beat means that two signals are exactly the same
frequency, resulting in a single tone being emitted.
o Rotate the tuning dial counterclockwise to turn the
calibration marker OFF.
!0 Push [ (F-5) EXIT] twice to exit set mode.
■ Frequency calibration
(approximate)
AGC AGC
MID
MID
≥ ≥ DEF DEF
VOX VOX
OFF
OFF
COMP COMP
OFF
OFF
≤ ≤
[OTHERS SET] [OTHERS SET]
EXIT EXIT
C a l i b r a t i o n m a r k e r O N
N O N E
N O N E
O N
O N
H I G H
O N
R F + S Q L
O N
F i l t e r ( 9 M H z )
F i l t e r ( 4 5 5 k H z )
B e e p ( c o n f i r m a t i o n )
B e e p ( b a n d e d g e )
S c a n s p e e d
S c a n r e s u m e
R F / S Q L c o n t r o l
Q u i c k d u a l w a t c h
1ß
9.999.00 VFO VFO
USB USB
USB USB
14.100.00 14.100.00
T X
ANT ANT
1
METER METER
Po Po
2.4k 2.4k 9 2.8k 2.8k 455 455 12:34 12:34
