PAGE 44 — DCA25USIXF/DCA25USI2XF — OPERATION AND PARTS MANUAL — REV. #2 (07/26/11)

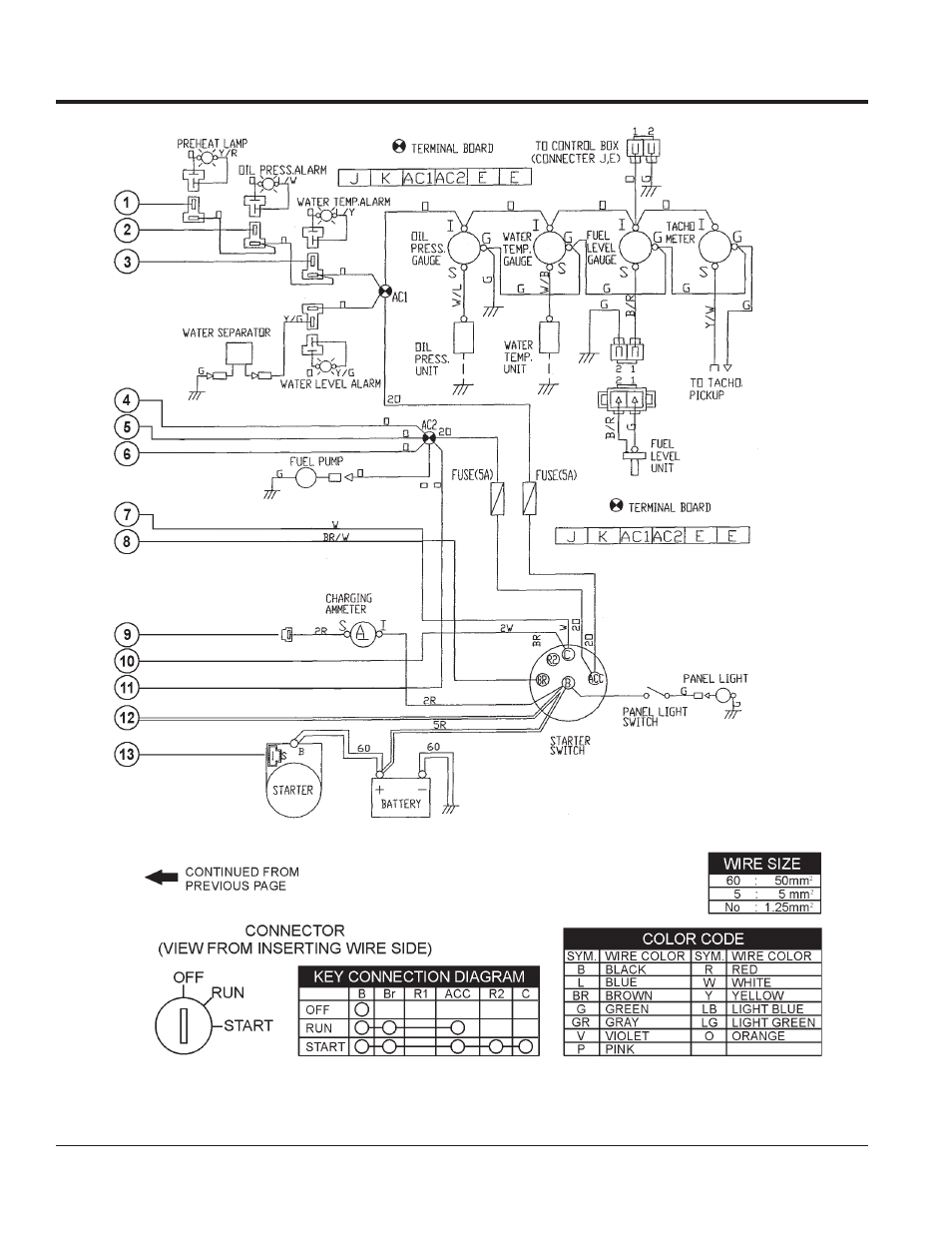

Figure 59B. Engine Wiring Diagram(Continued)

ENGINE WIRING DIAGRAM
