1

DCA25USIXF/DCA25USI2XF — OPERATION AND PARTS MANUAL — REV. #2 (07/26/11) — PAGE 23

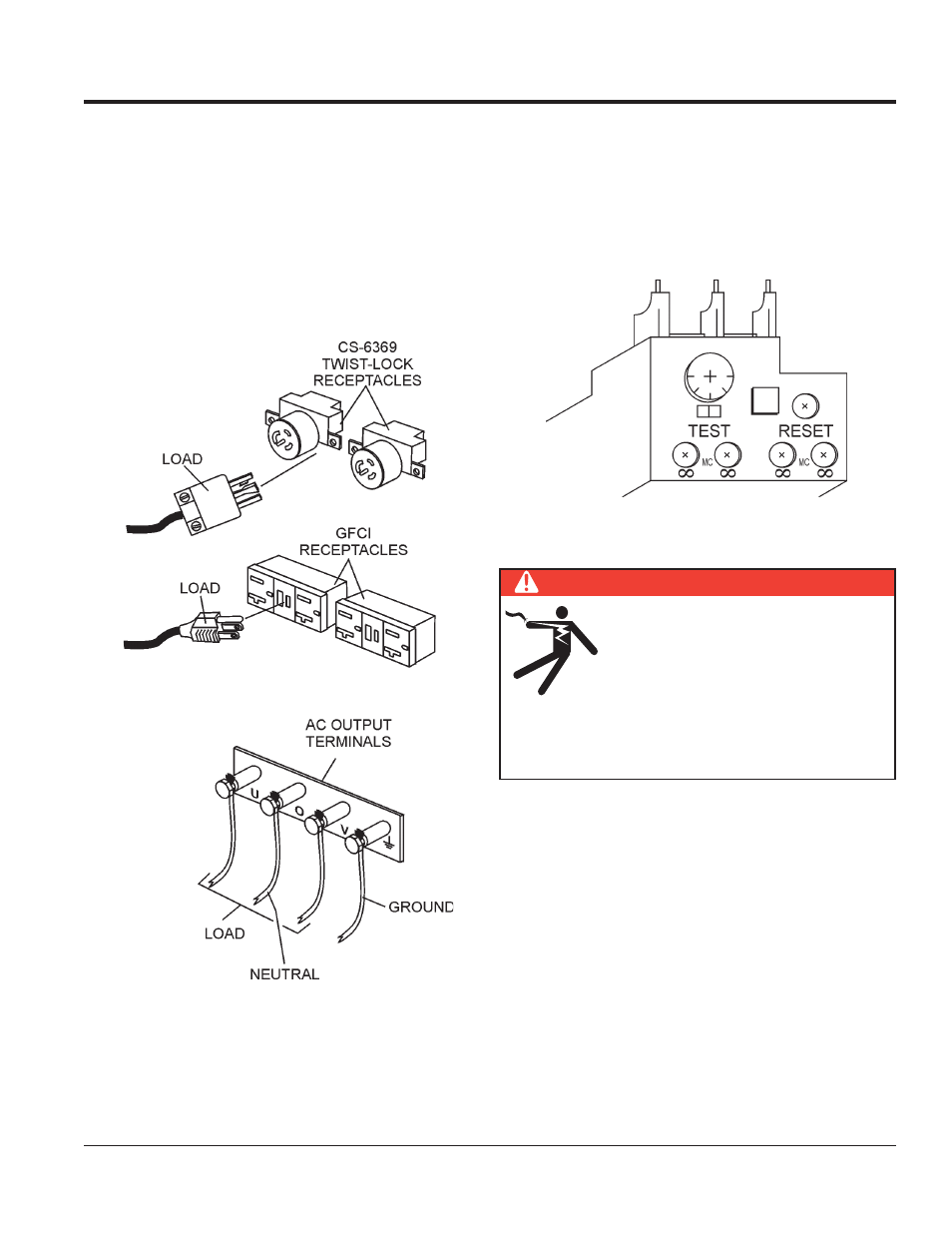

Figure 13. Connecting Loads

Connecting Loads

Loads can be connected to the generator by the UVWO terminal
lugs or the convienience receptacles. (See Figure 13). Make
sure to read the operation manual before attempting to connect
a load to the generator.

To protect the UVWO output terminals from overload, a 3-pole,
60 amp,

main

circuit breaker is provided. Make sure to switch

ALL

circuit breakers to the "OFF" position prior to starting the

engine.

Over Current Relay

An

over current relay (Figure 14) is connected to the main

circuit breaker. In the event of an overload, both the circuit
breaker and the over current relay may trip. If the circuit
breaker can not be reset, the

reset button on the over cur-

rent relay must be pressed. The over current relay is lo-
cated in the control box.

Figure 14. Over Current Relay

OUTPUT TERMINAL PANEL

This fuse has current running through it
any time the engine is running. This fuse
is NOT connected to the main circuit
breaker of the generator. Attempting to
replace the fuse with the engine and/or

generator operating could result in

electrocution and

severe bodily harm. ALWAYS turn the unit completely
off before attempting to replace or handle this fuse.

DANGER
