DCA25USIXF/DCA25USI2XF — OPERATION AND PARTS MANUAL — REV. #2 (07/26/11) — PAGE 27

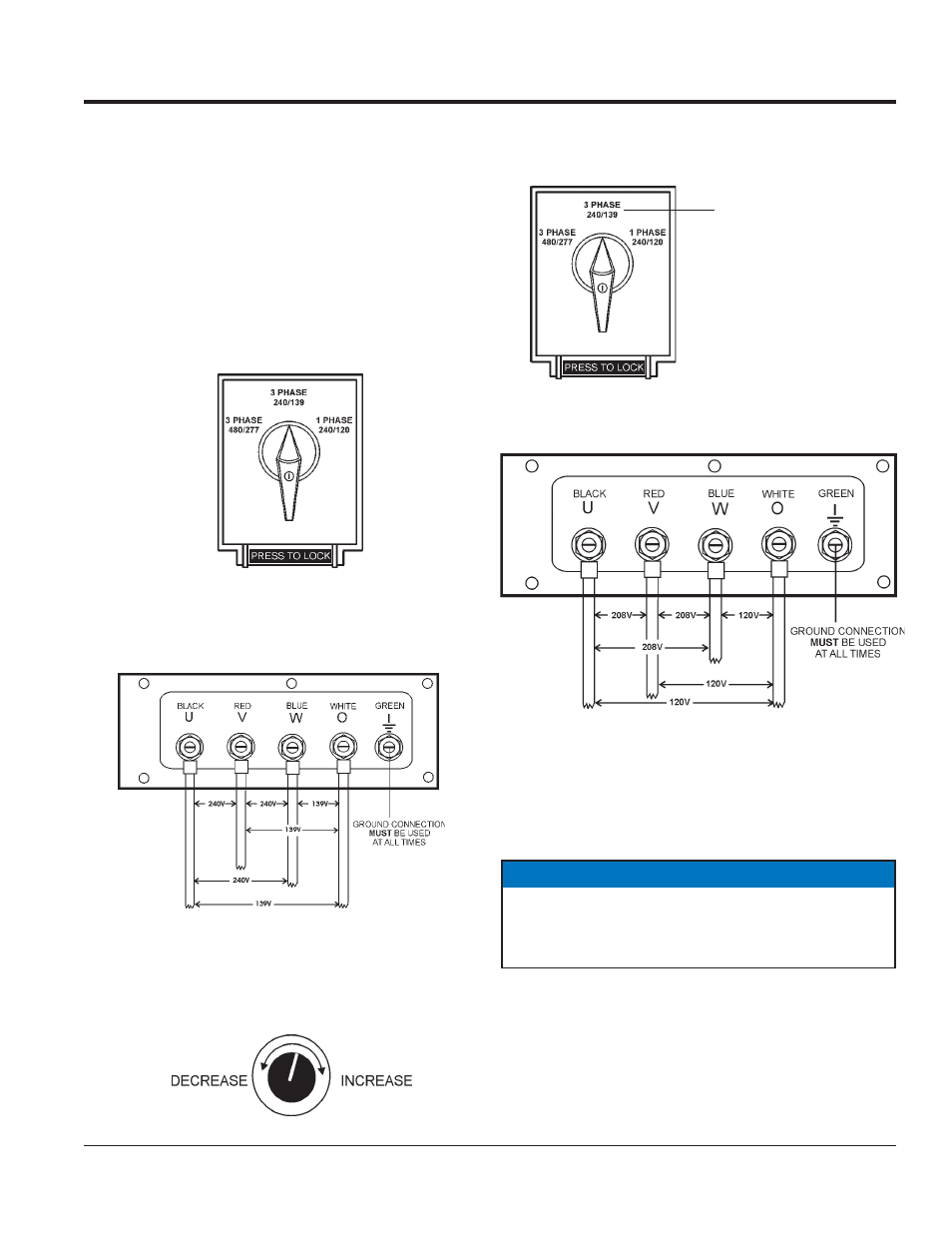

Figure 21. Voltage Selector Switch 240/139V
Three-Phase Position
UVWO Terminal Output Voltages
Various output voltages can be obtained using the Output
Terminal Lugs. The voltages at the terminals are depen-
dent on the position of the
Voltage Selector Switch and the
adjustment of the Voltage Regulator Control Knob.
Remember the voltage selector switch determines the range
of the output voltage. The voltage regulator (VR) allows the
user to increase or decrease the selected voltage.
3Ø 240/139 Output Terminal Lug Voltages
1. Place the voltage selector switch in the 3Ø 240/139
position as shown in Figure 21.
Figure 22. Output Terminal Lugs
3Ø-240/139V Connections
2. Connect the load wires to the Output Terminal Lugs as
shown in Figure 22.
3. Turn the voltage regulator knob (Figure 23) clockwise to
increase voltage output, turn counterclockwise to
decrease voltage output.
3Ø 208V/1Ø120V Output Terminal Lug Voltages
1. Place the voltage selector switch in the 3Ø 240/139
position as shown in Figure 24.
Figure 23. Voltage Regulator Knob (139V/240V)
Use this position for
3Ø-240 or 1Ø120V.
2. Connect the load wires to the Output Terminal Lugs as
shown in Figure 25.
3. Turn the voltage regulator knob (Figure 23) clockwise to
increase voltage output, turn counterclockwise to
decrease voltage output.
Figure 25. Output Terminal Lugs
3Ø-208/120V Connections
Figure 24. Voltage Selector
Switch 240/139V
Three-Phase Position
OUTPUT TERMINAL PANEL CONNECTIONS
To achieve a 3Ø 208V output the voltage selector switch
must be in the 3Ø-240/139 position and the voltage
regulator must be adjusted to 208V.
