PAGE 28 — DCA25USIXF/DCA25USI2XF — OPERATION AND PARTS MANUAL — REV. #2 (07/26/11)

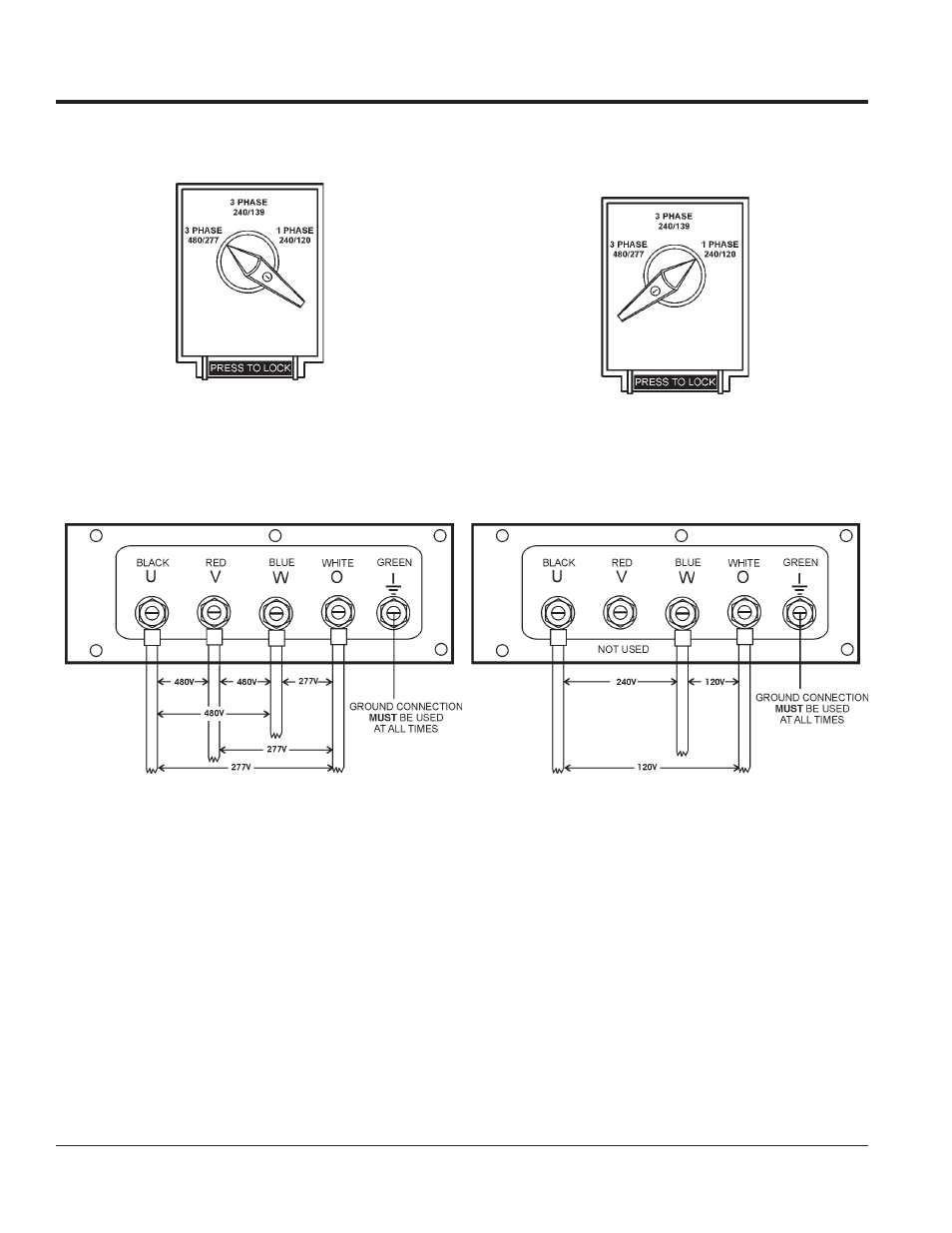

Figure 26. Voltage Selector Switch 480/277V

Three-Phase Position

3Ø 480/277 Output Terminal Lug Voltages
1. Place the voltage selector switch in the 3Ø 480/277

position as shown in Figure 26.

Figure 27. Output Terminal Lugs

3Ø-480/277V Connections

2. Connect the load wires to the

Output Terminal Lugs as

shown in Figure 27.

3. Turn the voltage regulator knob (Figure 23) clockwise to

increase voltage output, turn counterclockwise to
decrease voltage output.

1Ø 240V/120V Output Terminal Lug Voltages

1. Place the voltage selector switch in the 1Ø 240/120

position as shown in Figure 28.

2. Connect the load wires to the

Output Terminal Lugs as

shown in Figure 29.

3. Turn the voltage regulator knob (Figure 23) clockwise to

increase voltage output, turn counterclockwise to
decrease voltage output.

Figure 29. Output Terminal Lugs

1Ø-240/120V Connections

Figure 28. Voltage Selector Switch 240/120V

Single-Phase Position

OUTPUT TERMINAL PANEL CONNECTIONS
