DCA25USIXF/DCA25USI2XF — OPERATION AND PARTS MANUAL — REV. #2 (07/26/11) — PAGE 21

Output Terminal Familiarization

The “

Output Terminal Panel ” (Figure 6) is provided with the

following:

Two (2) 120/240V output receptacles @ 50 amp

Two (2) Circuit Breakers @ 50 amps

Two (2) 120V GFCI receptacles @ 20 amp

Two (2) GFCI Circuit Breakers @ 20 amps

Five (5) Output Terminal Lugs ( U, V, W, O, Ground)

Output Terminal Panel

The

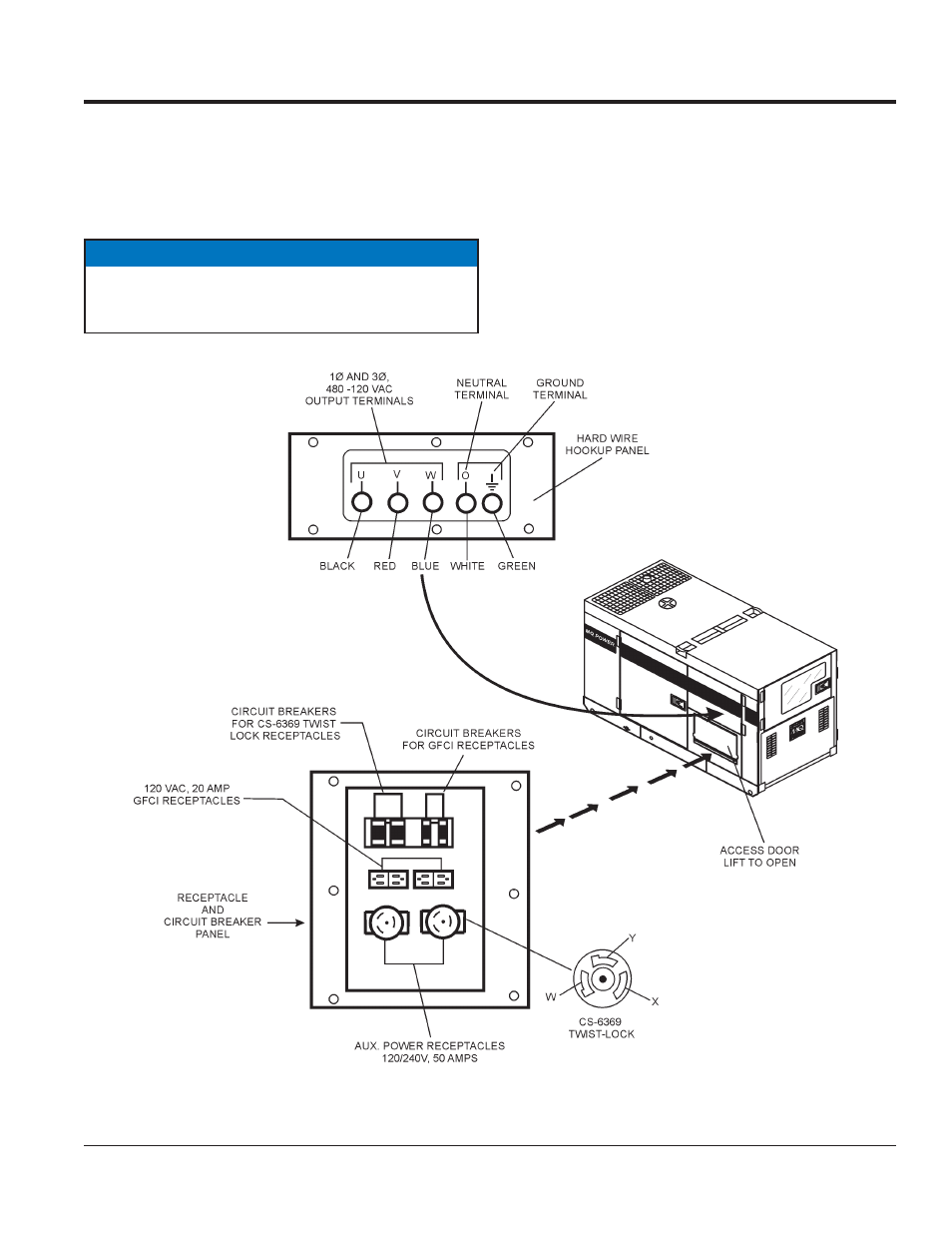

Output Terminal Panel (Figure 8) shown below is located

on the right-hand side (left from control panel) of the generator.
Lift up on the cover to gain access to receptacles and terminal
lugs.

Figure 8. Output Terminal Panel

One Main Circuit Breaker @60 amps

OUTPUT TERMINAL PANEL

Terminal legs “O” and “Ground” are considered

bonded

grounds.
