DCA25USIXF/DCA25USI2XF — OPERATION AND PARTS MANUAL — REV. #2 (07/26/11) — PAGE 35

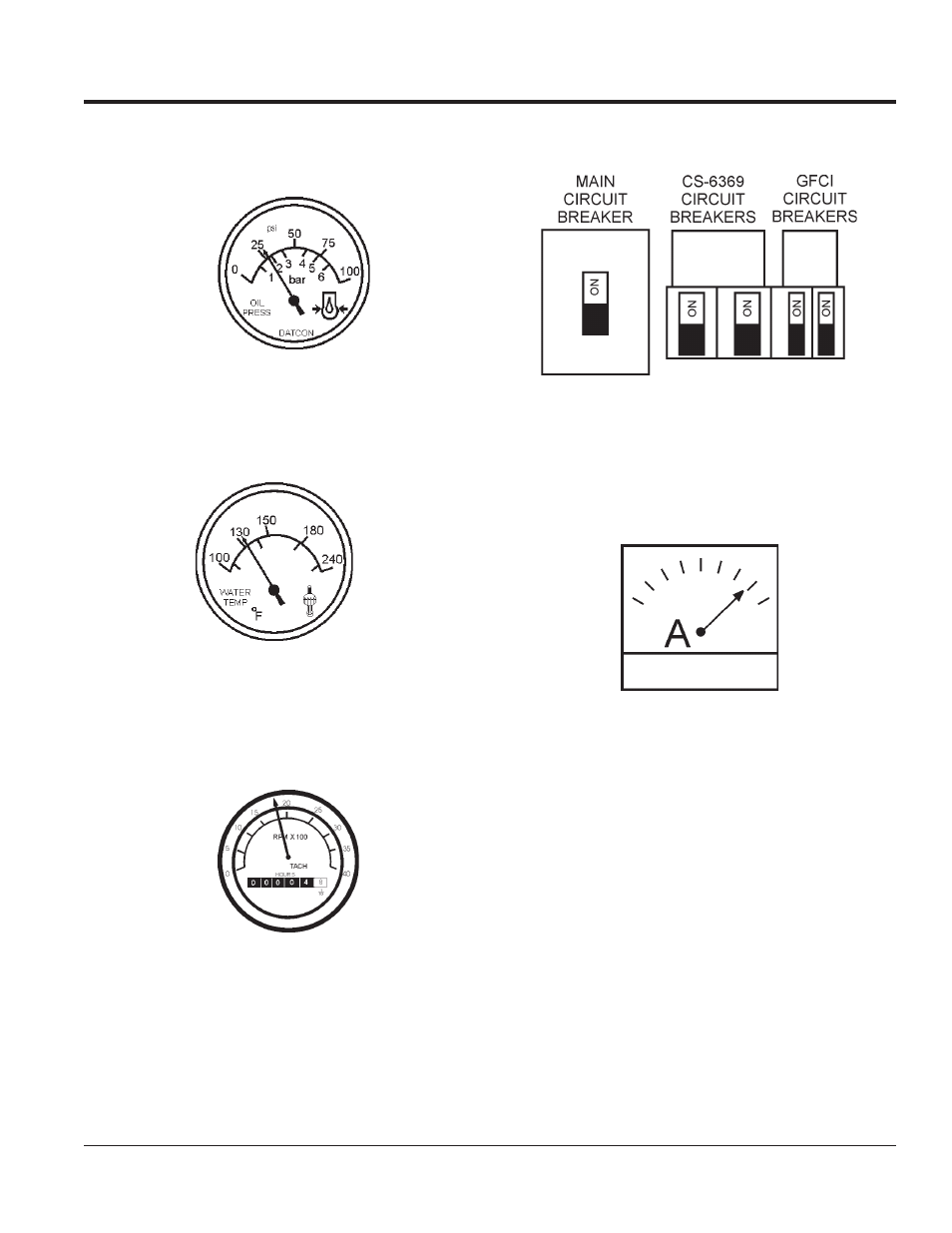

Figure 50. Engine Tachometer

10. The tachometer (Figure 50) will indicate the speed of

the engine when the generator is operating. Under normal
operating conditions this speed is approximately 1800
RPM’s.

11. Turn the

main, GFCI, and aux. circuit breakers to the

ON position (Figure 51).

Figure 49. Coolant Temperature Gauge

12. Observe the generator's ammeter (Figure 52) and verify

it reads the anticipated amount of current with respect
to the load. The ammeter will only display a current
reading if the load is in use.

Figure 52. Ammeter (Load)

Figure 51. Main, AUX. and GFCI

Circuit Breakers (ON)

Figure 48. Oil Pressure Gauge

13. The generator will run until manually stopped or an

abnormal condition occurs.

DCA-25USIXF/DCA-25USI2XF— GENERATOR START-UP PROCEDURE

8. The engine oil pressure gauge (Figure 48) will indicate

the oil pressure of the engine. Under normal operating
conditions the oil pressure is approximately 28~71 psi
(193~490 kPa).

9. The coolant temperature gauge (Figure 49) will indicate the

coolant temperature. Under normal operating conditions the
coolant temperature is between 165°~203° F. (74°~95° C).
