Page 35
SECTION 3: WIRING AND INSTALLATION
DS2100 User's Manual (Preliminary)
PAGE 3-29
3.7.1.2
Size A & B
EMC Filter,
Fuses etc.
See
Section 2
Installation
4 5 6
L1 L2 L3
Connector J6
A & B
PE
Stud
a.c. Mains
L1
L2
L3
Protective
Earth

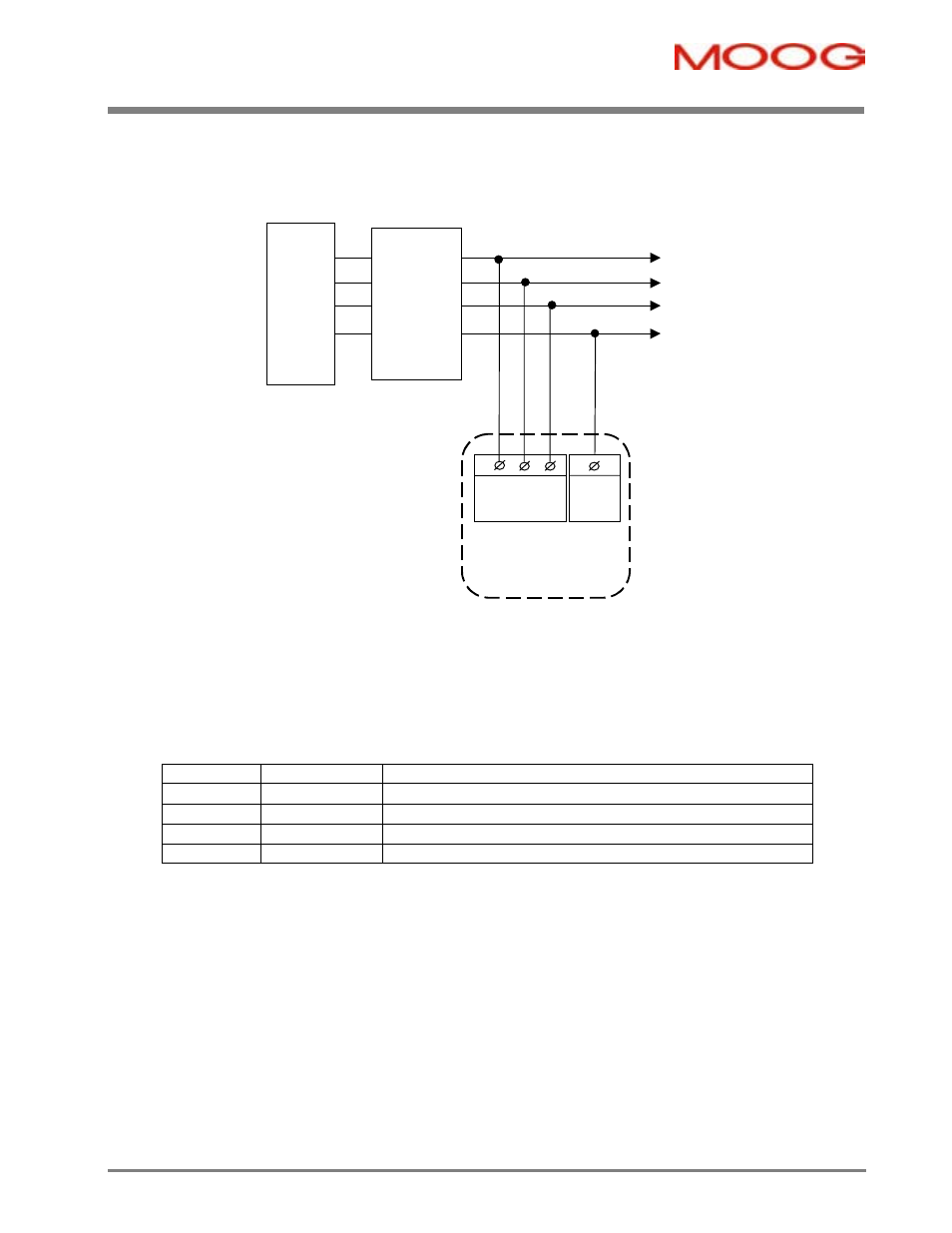

Figure 3.16 A & B AC Mains Input Connection
-
Fixed connector: 10 pins, male connector
-
Mating connector, 10 pins, female, supplied with the drive. Phoenix Contact (Part # PC4 HV/10-ST-7.62)
-
A size wiring: cable 14AWG (2.1 mm
2
). Wire stripping: 7 mm
-
B size wiring: cable 12AWG (3.3 mm
2
). Wire stripping: 7 mm
-
PE Stud wiring: cable 6 AWG (13mm
2
)
-
Tightening torque: 0.5Nm.
Pos.
Name
Function
J6.4
L1
Phase "L1", three-phase voltage input 230/460Vac
±10%
J6.5
L2
Phase "L2", ", three-phase voltage input 230/460Vac
±10%
J6.6
L3
Phase "L3", ", three-phase voltage input 230/460Vac
±10%
PE
PE
Protective Earth Stud on Chassis
Table 3.4 J6 AC Mains Power connector, A & B Size
