73
25. Registering AV Devices
Setting signal types DVI/HDMI
The signal type always refers to the input
and output of the AV device.
AV devices equipped with a DVI or HDMI socket
can be connected to the LCD TV with the aid of a
DVI or HDMI cable, respectively.
The connected device must be registered in the
menu "AV devices" with "Signal OUT" set to
"DVI" or "HDMI", as applicable. Connection via a
DVI or HDMI interface permits digital transfer of
the picture signal from the device to the TV set.
The sound signal must be connected with an addi-
tional Cinch or optical (Toslink) audio cable.
Setting the signal type DVI or HDMI
• Press the "MENU" key to open the TV menu.
• Press the yellow key to open the menu "AV
devices".
• Use the cursor control key
to select the AV device
whose signal type you wish
to change and press the
"OK" key.
• Press numeric key
·
, use
the cursor control key to
select " Signal OUT", and
use the - + key to change
the setting to " RGB".
• Press the "OK" key to con-
firm your selection.
• Press the "EXIT" key to close the TV menu.
Caution ! This may cause an existing con-
nection diagram to be modified. If so, you
must reconnect the AV devices accordingly.
☞
☞
MENU
OK
ᕢ
OK
EXIT

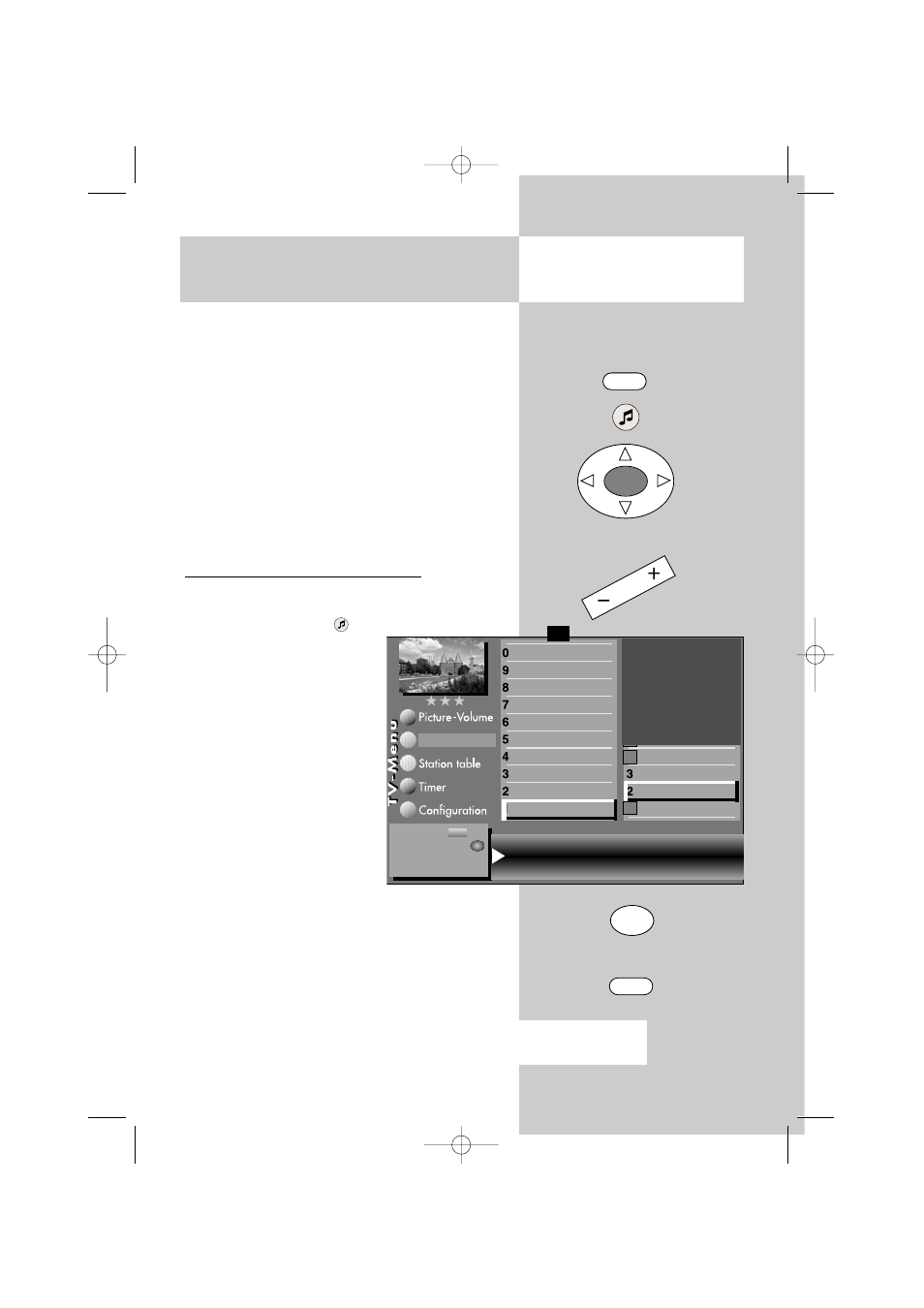

Opening the menu
Caution ! This may cause an existing connection diagram to be
modified. If so, you must reconnect the AV devices accordingly.
☞
Signal OUT HDMI Signal IN no Signal
DataLogic
Name
Signal types
connect
HiFi amplifier
AV-Receiver
Other device 2
Other device 1
PC
Satellit / set top
DVD Player 2
DVD Player 1
DVD/Videorec.2
DVD/Videorec.1
F1 ➔
✗
AV devices
Change with
Accept value with .
OK
– +
