Introduction to Analog MultiVOIP FX
SIP Gateway Voice-over-IP Units
(MVPFX2-2/4/8)
VOIP: The Free Ride. We proudly present Multi-Tech's MVPFX2-2/4/8 MultiVOIP TM FX SIP Gateways.
These three models allow voice/fax communication to be transmitted at no additional expense over your
existing IP network, which has ordinarily been data only. To access this free voice and fax communication,
you simply connect the MultiVOIP to your telephone equipment and your existing Internet connection.
These analog MultiVOIPs inter-operate readily with T1 or E1 MultiVOIP units.
WAN
SPD COL
1 2 3 4 5 6 7 8

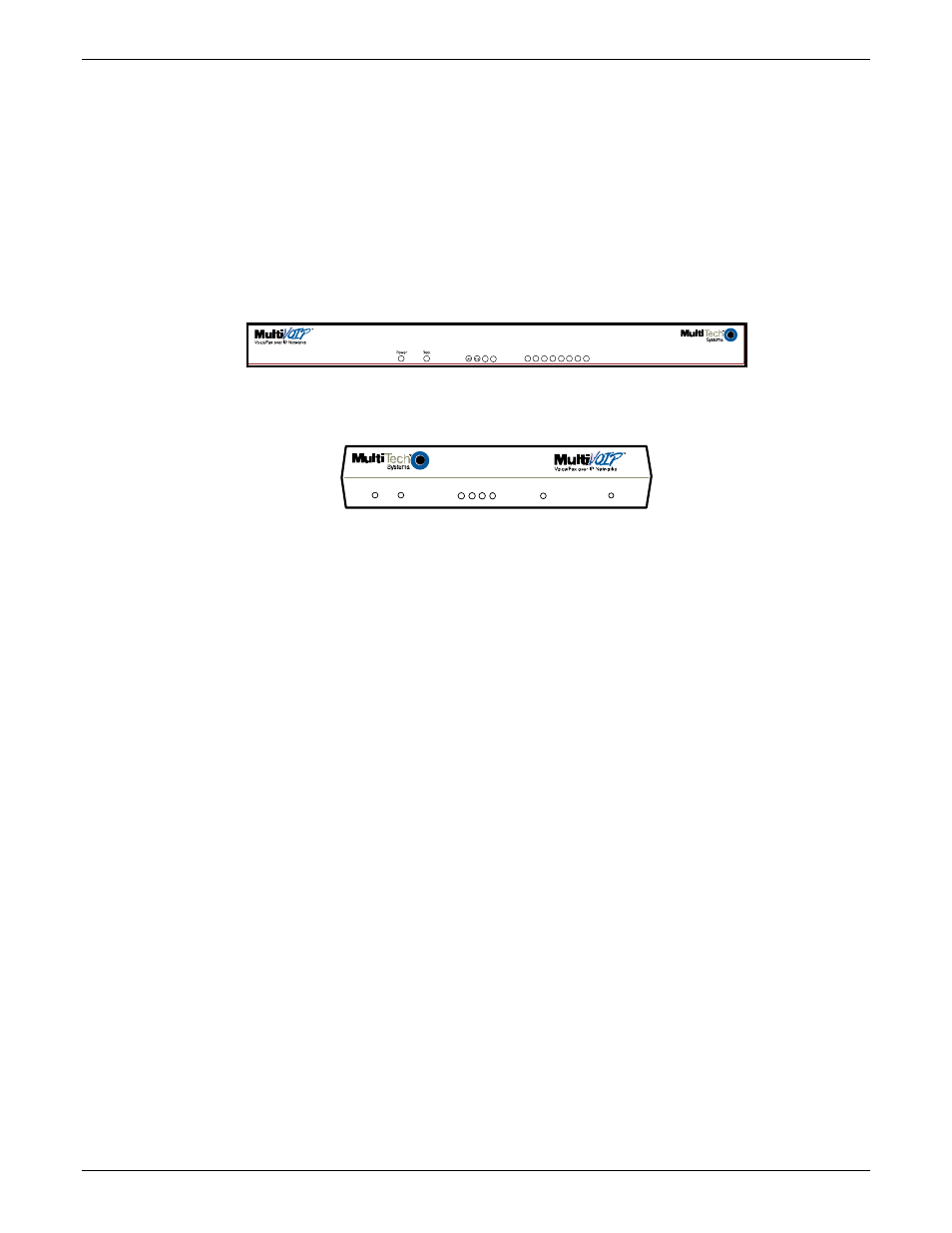

Figure 1-1: MVPFX2-8 Chassis
Voice/Fax 1 Voice/Fax 2 Ethernet
Bo ot Powe r L NK FDX SPD COL
Figure 1-2: MVPFX2-2 Chassis
Capacity. The MultiVOIP FX model MVPFX2-8 is an eight-channel unit, the model MVPFX2-4 is a four-
channel unit, and the MVPFX2-2 is a two-channel unit. All three of these MultiVOIP units have a
10/100Mbps Ethernet interface for its full-featured web-based configuration GUI and a console port for
local access to basic startup configuration parameters (like the gateway’s IP address and password).
Mounting. Mechanically, the MVPFX2-4 and MVPFX2-8 MultiVOIP FX units are designed for a one-high
industry-standard EIA 19-inch rack enclosure. The product must be installed by qualified service
personnel in a restricted-access area, in accordance with Articles 110-16, 10-17, and 110-18 of the National
Electrical Code, ANSI/NFPA 70. The MVPFX2-2 is a table-top unit.
