Operation and Maintenance MultiVOIP FX User Guide
150
To transfer files using the FTP server functionality in the MultiVOIP, follow these directions.
1. Establish Network Connection and IP Addresses. Both the controller PC and the MultiVOIP unit(s)
must be connected to the same IP network. An IP address must be assigned for each.
IP Address of Control PC ____ . ____ . ____ . ____
IP Address of voip unit #1 ____ . ____ . ____ . ____
:
.
:
.
:
.
:
.
:
.
IP address of voip unit #n ____ . ____ . ____ . ____
2. Establish User Name and Password. You must establish a user name and (optionally) a password for
contacting the voip over the IP network. (When connection is made via a local serial connection between
the PC and the voip unit, no user name is needed.)

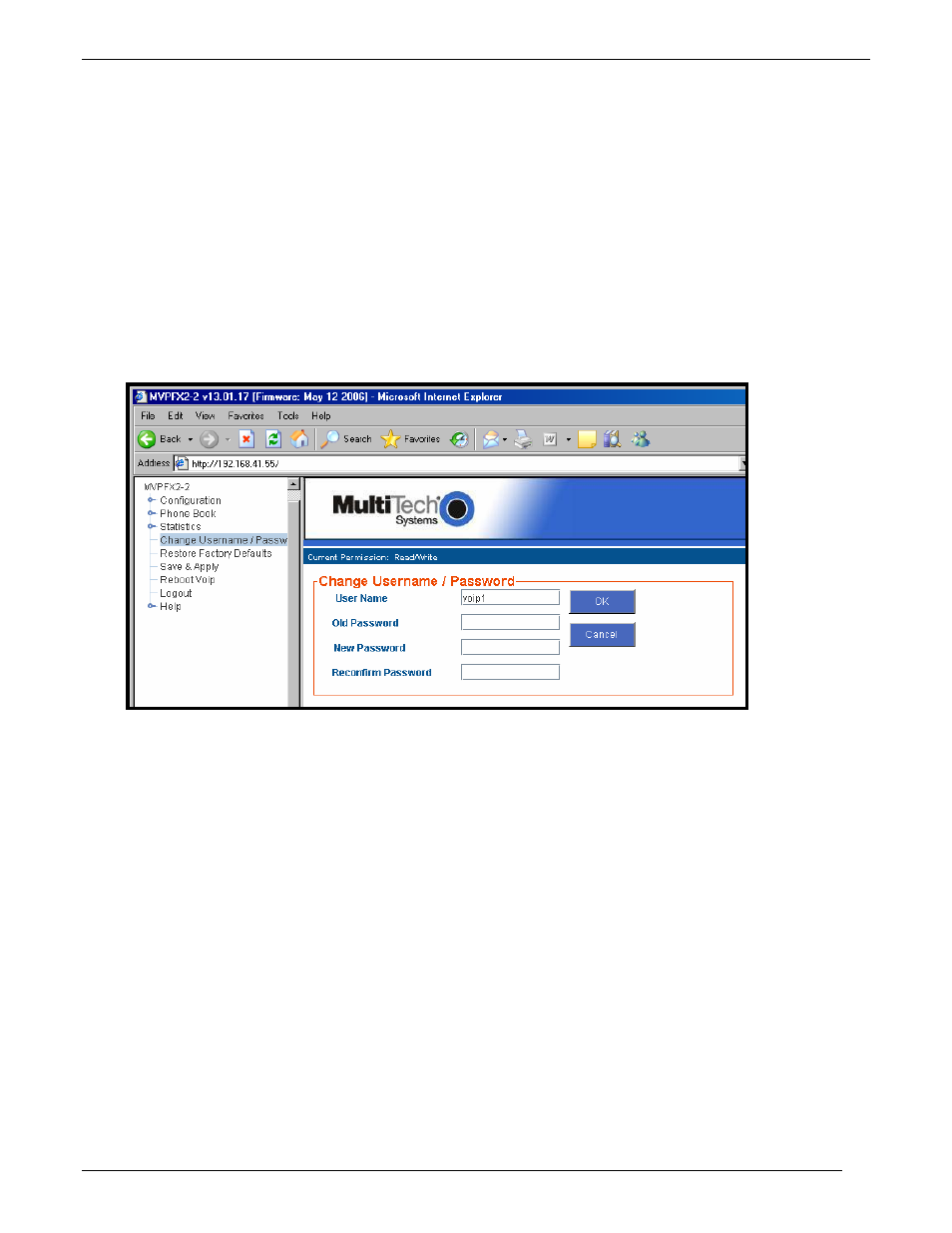

As shown above, the username and password must be set in the web GUI.
