MultiVOIP FX User Guide

Mechanical Installation & Cabling

49

Rack Mounting Instructions for

MVPFX2-4 & MVPFX2-8

The MultiVOIPs can be mounted in an industry-standard EIA 19-inch rack enclosure, as shown in Figure 3-

3.

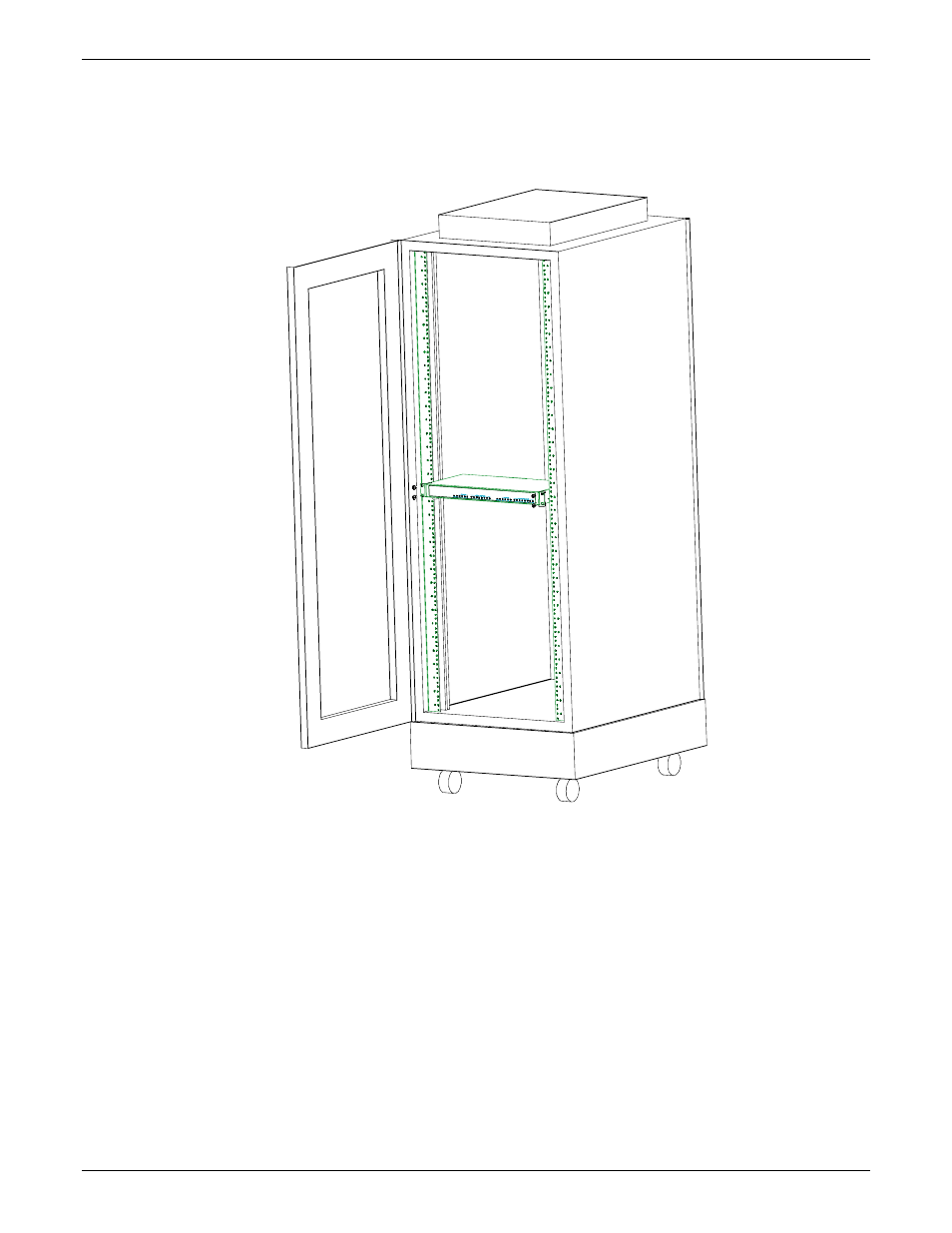

Figure 3-3: Rack-Mounting (MVPFX2-4 or MVPFX2-8)
