Maxon SP200/210 Radio SP20/210
INSTALLATION, COMMISSIONING & ALIGNMENT -
Issue 1.0
Page 4-12
03/01
All further adjustments require the use of the ACC-2003 Alignment Box.
Refer to the ACC-2003 User Manual (on floppy disk) for operational information.
Power ATE
TXD
RXD
ATE
AUDIO
PTT
Power
DC POWER SUPPLY
OSCILLOSCOPE
RADIOCOMMUNICATIONS
TEST SET
7.5VDC @ 2.4A max.
SERIAL DATA
AUDIO
SERIAL DATA
ACC-2003
INTERFACE
BOX
DEMOD
AF IN
AF OUT
AUDIO OUT
AUDIO IN

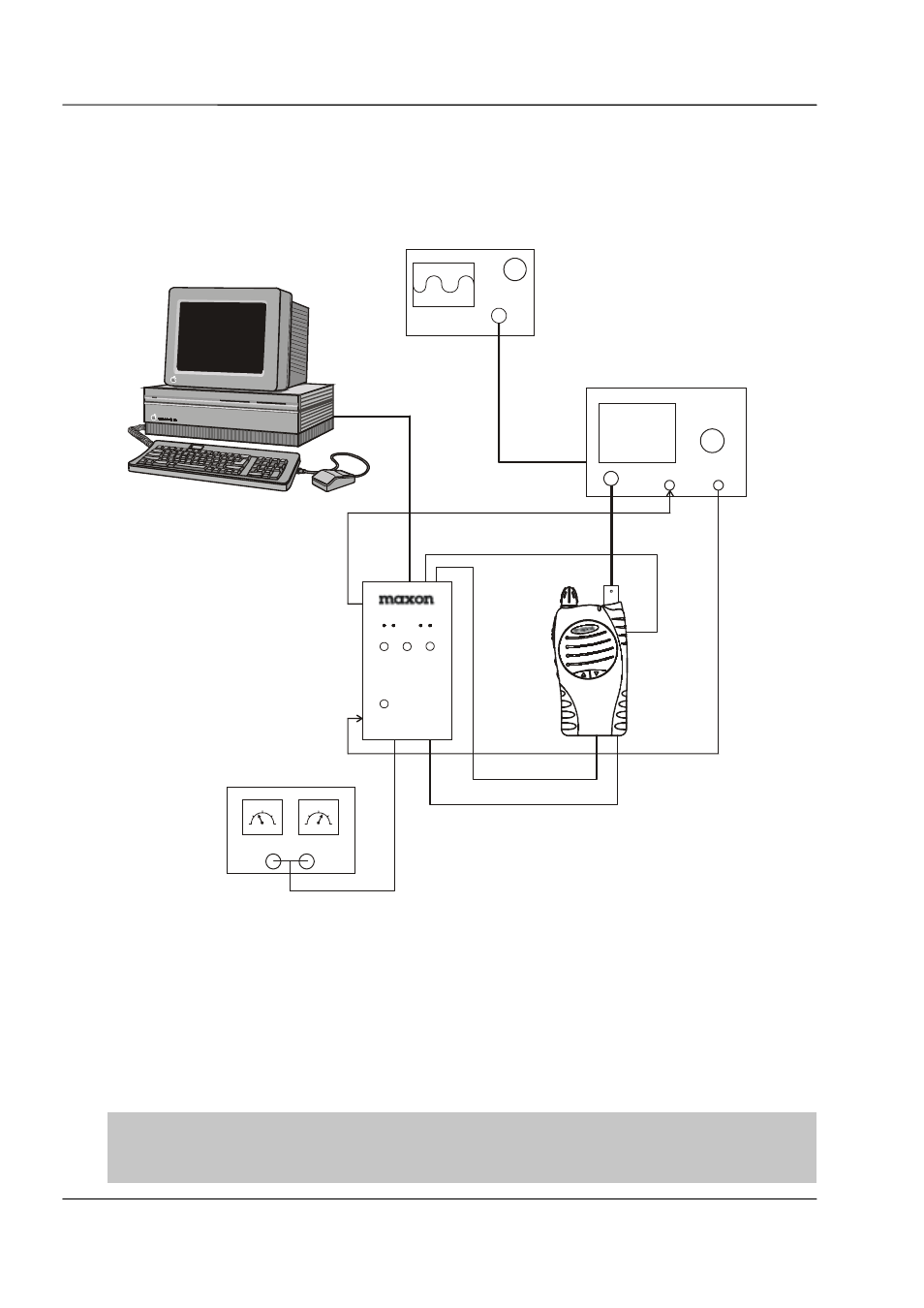

Figure 4-15 – ACC-2003 Alignment Box Test Setup
Please refer to the ACC-2003 Interface Test Jig User Guide for details on how to use the ACC-2003
Interface Box.
The radio should remain programmed as Section 4.5.1 with ASIC values being read as per the
instructions.
Note: The ASIC programmer DOES NOT read frequency data, so only default frequencies will be
displayed even though the actual radio is programmed and operational on different frequencies.
Any adjustments to deviation and balance must be carried out in accordance to the R&TTE directive.
