Installation

Maxtor Atlas 10K III 3-15

+06'4(#%' %100'%614 ,

The configuration of J1 is different for the 68-pin and 80-pin SCSI variations.
Figure 3-7 shows the various connector styles.

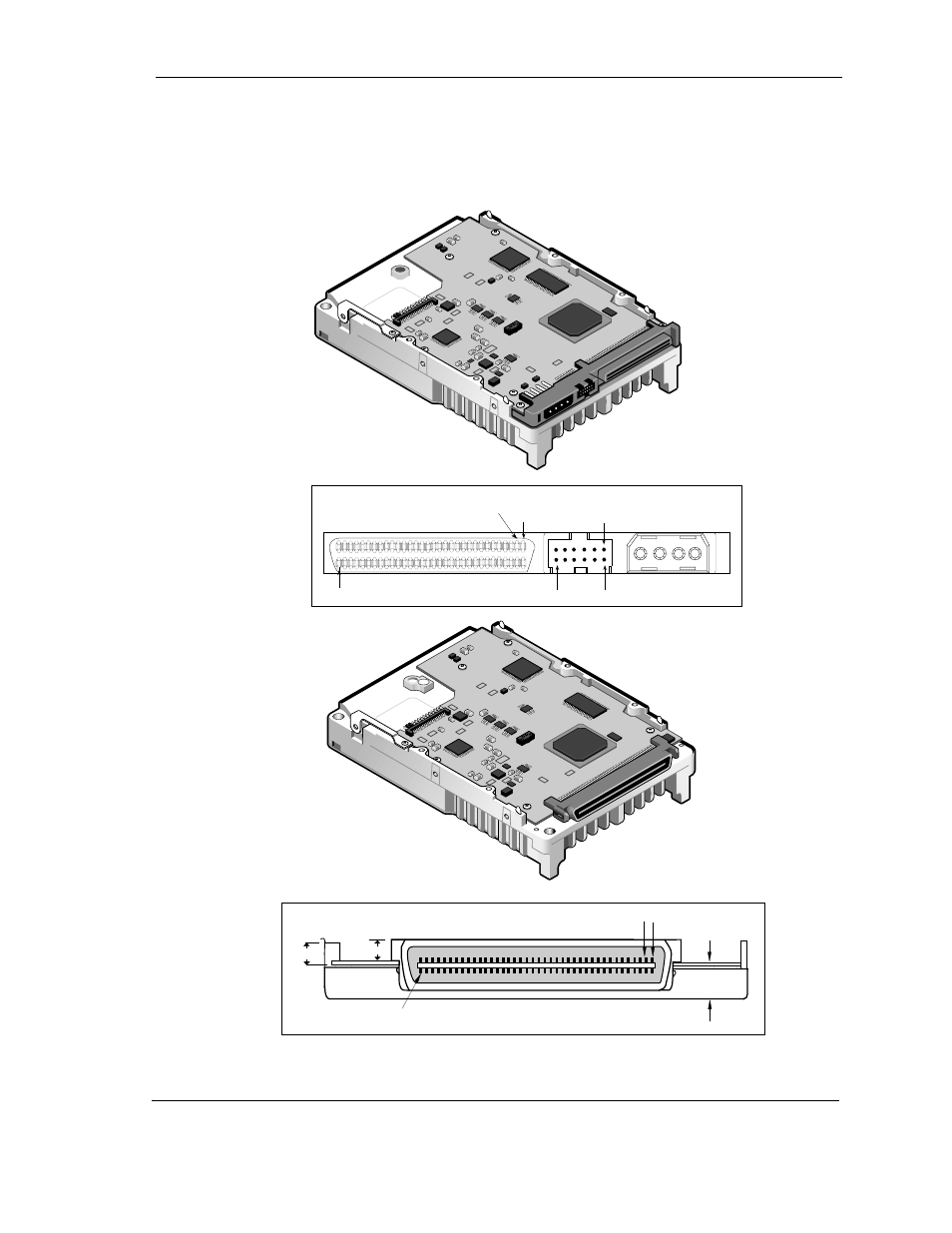

(KIWTG

J1 Interface Connector Configurations

A M P

Pin 2

Pin 1

Pin 1

Pin 2

Pin 12

12-Pin Option

Connector

68-Pin SCSI-Bus Interface Connector

4-Pin DC

Power Connector

Pin 68

4

3

2

1

4.6±0.50

2.25±0.1

Pin 80

Pin 1

Pin 2

Bottom

Top

J1 SCSI (68-Pin)/DC (4-Pin)/Auxiliary (12-pin) Combination Connector

J1 SCSI (80-Pin) SCA Connector
