Installation

3-10 Maxtor Atlas 10K III

5%5+ $WU 6GTOKPCVKQP 2QYGT ,WORGT 6'4/294

The TERMPWR jumper enables the active termination circuit to receive power

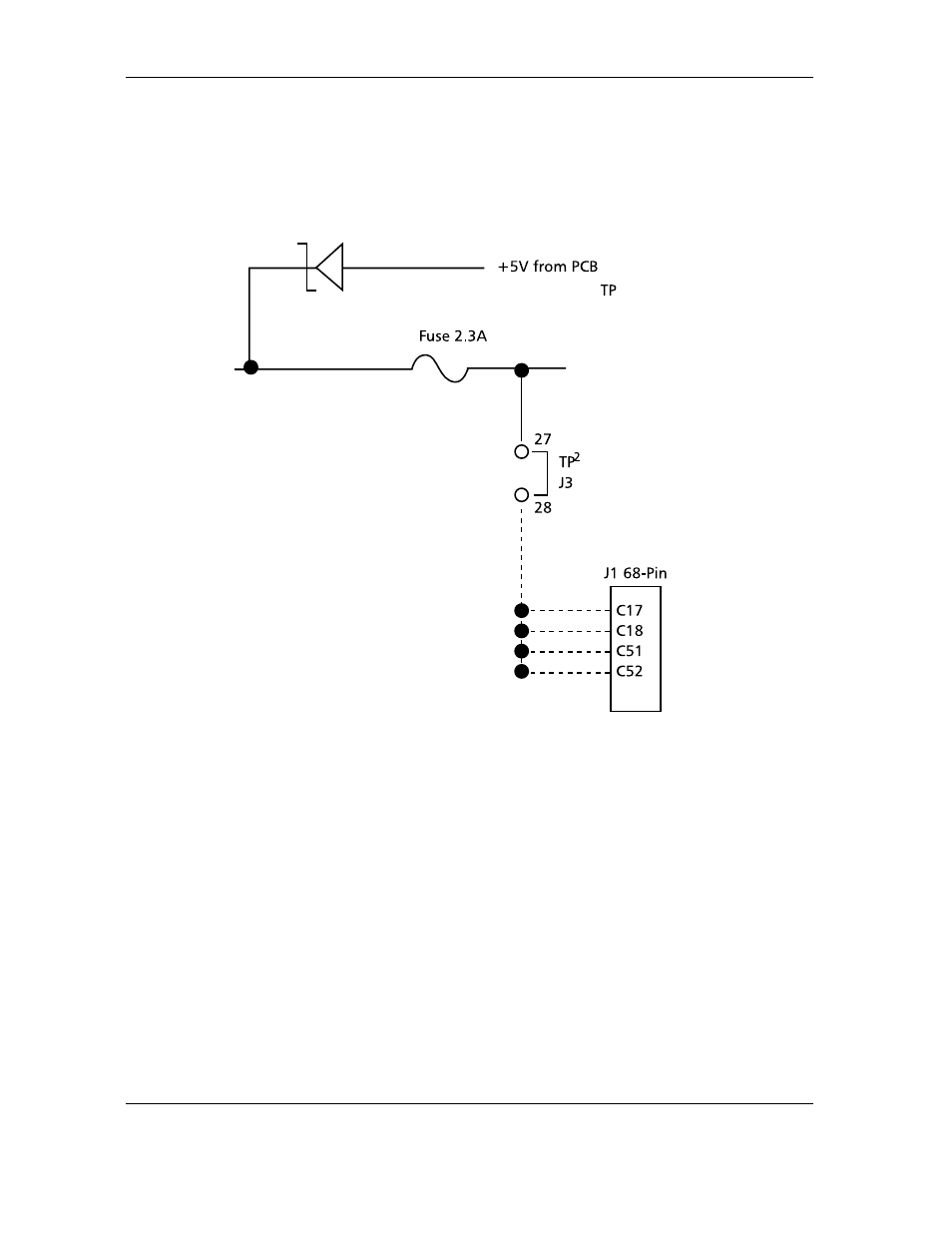

from an external host when installed. Figure 3-4 shows the termination power
circuitry.

(KIWTG

Termination Power Circuitry

1P DQCTF $WU[ CPF (CWNV +PFKECVQTU

The drive has an on-board green ‘Busy’ LED and a yellow ‘Fault’ LED.

5%# 2KP %QPPGEVQT 8GTUKQPU

This section describes the SCA-2 (Single Connector Attachment) 80-pin connector
for Maxtor Atlas 10K III drives with the following features:

• SCSI ID

• Spin Up

• Activity LED displays
