Installation
Maxtor Atlas 10K III 3-7
The drives are shipped from the factory with the jumpers installed across the A1 and
A2 locations. This is the default configuration. The rest of the jumper positions are
open.
The configuration of a Maxtor Atlas 10K III hard disk drive depends on the host
system in which it is to be installed. Figure 3-3 shows the printed circuit board
(PCB) assemblies for 68-pin SCSI configurations, indicating the jumpers that
control some of these options.

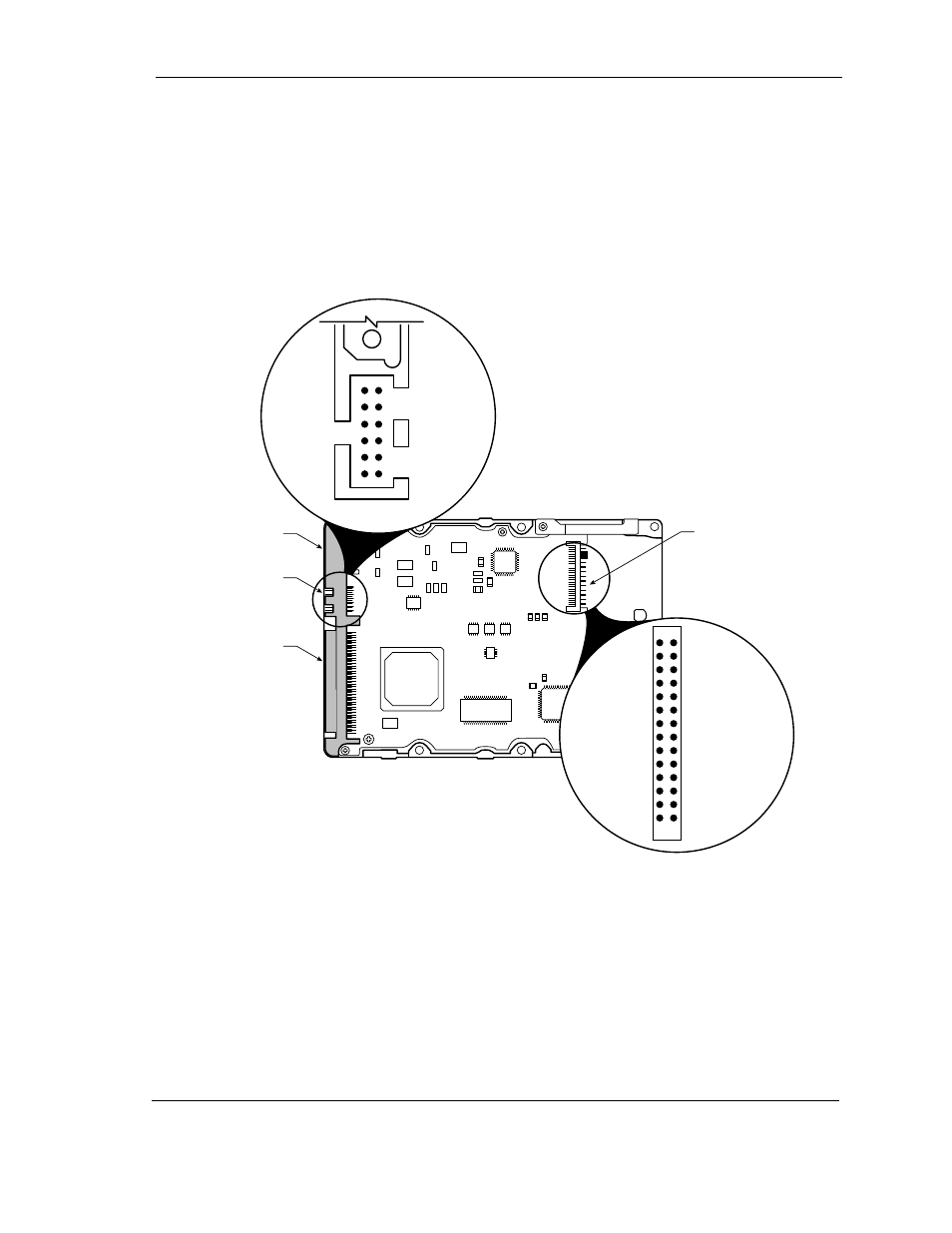

(KIWTG Jumper Locations on the 68-Pin Wide SCSI Drive PCB
12-pin Option
Connector
1
4
1
12
Back of Drive
Front of Drive
4-pin Power
Connector
Options
Header
68-pin SCSI
Connector
J1 - 12-pin Option
Connector
(side view)
J3 - Option
Header
(side view)
FAULT
GND
GND
BUSY
GND
NC A0
1 2
11 12
28 27
2 1
A1
A2
A3
NC
+5V
SCSI ID (3)
SCSI ID (2)
SCSI ID (1)
SCSI ID (0)
NO PIN PRESENT
DELAY SPIN
FORCE SE
NC
BUSY OUT
WRITE PROTECT
STAGGER SPIN
NO WIDE
RESERVED
TERMPWR GND
GND
GND
GND
FAULT OUT
GND
GND
NC
+5 OUT
GND
GND
GND
GND
TERMPWR
