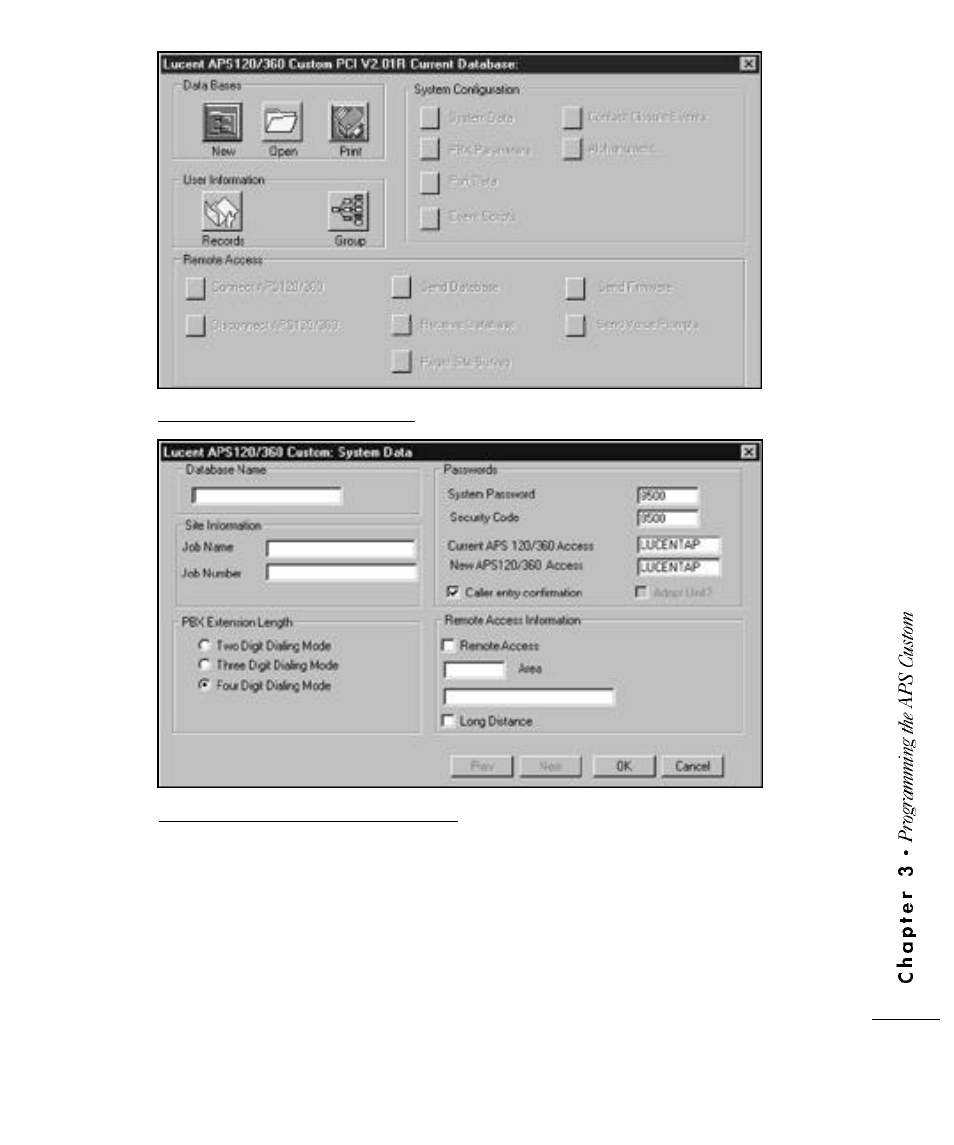

F i g u re 3-1: PCI Main Dialog Scre e n
F i g u re 3-2: Database Information Scre e n
To create a database, select the New Database icon at the top of the screen. The Data-
base Information screen appears (Figure 3-2).
Database information fields include:
Database Name a user-defined 20 character alphanumeric field.
Site Inform a t i o n optional fre e - f o rm fields.
(Job Name, Job Number)
PBX Extension Length selectable field identifying the dialing mode of the PBX.
You select from a two, three or four-digit dialing mode.
3 • 3
