-28-
Model g1033X (Mfg. since 4/12)
the Model g1033X features factory-sealed bear-
ings. A sealed bearing requires no lubrication dur-
ing its lifetime. should a bearing fail, your planer
will probably develop a noticeable rumble/vibra-
tion, which will increase when the machine is put
under load. Bearings are standard sizes and can
be replaced through grizzly.
proper lubrication of other planer components are
essential for long life and trouble-free operation.
Below is a list of components that require periodic
lubrication. schedules are based on daily use.
Adjust accordingly for your level of use.
Lubrication

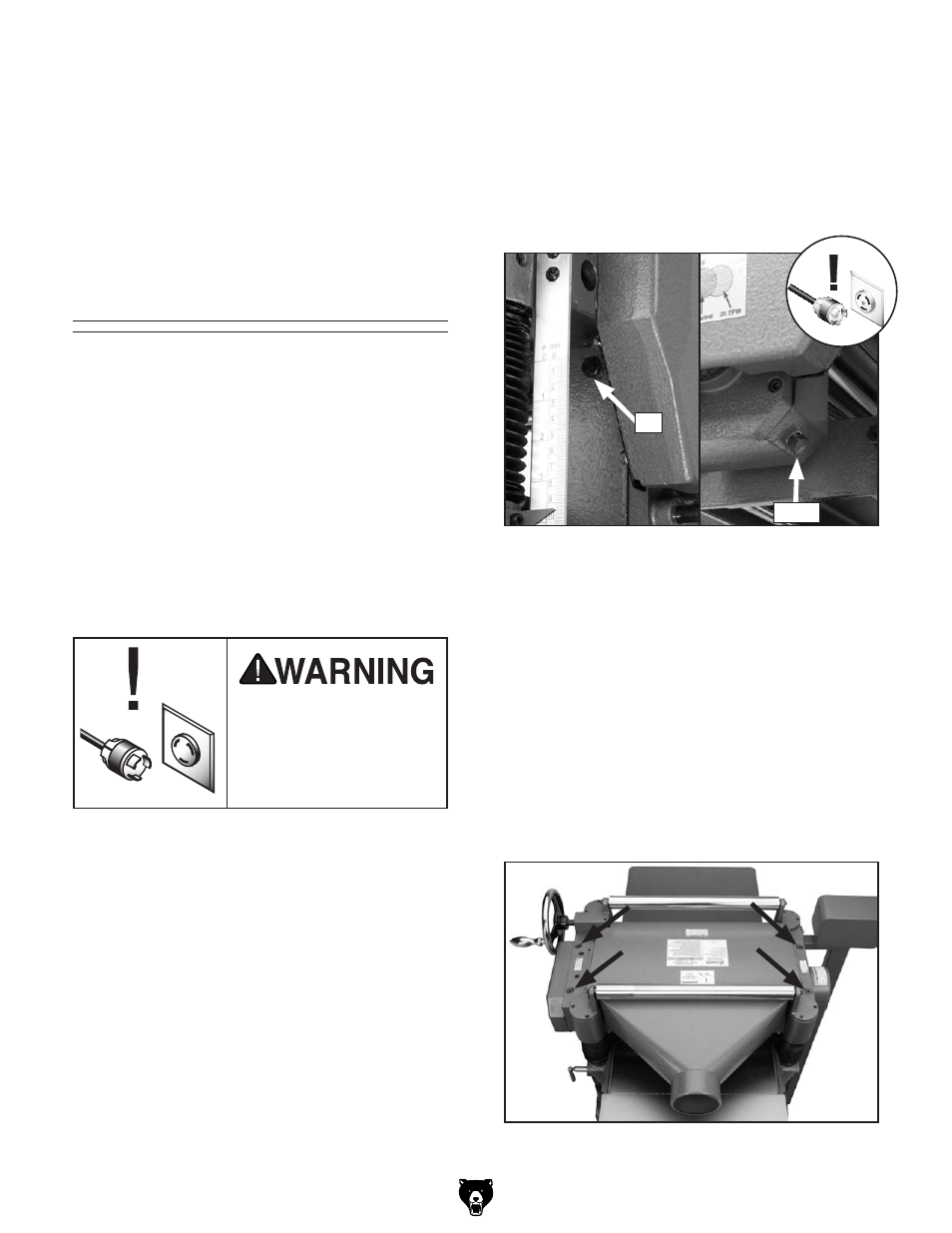

figure 23. gearbox oil drain/fill locations.
figure 24. tension screw locations.
Drive Chain: the drive chain should be inspected
and lubricated monthly. Check sprocket, chain
and cotter pin during inspection. Use a general
purpose grease. some chains will have master
links instead of cotter pins.
feed Rollers: regular lubrication of feed rollers
is crucial to the operation of your planer. lubricate
every 30 hours of use. Each end of each power
feed roller has an oiling port located on the top
of the head casting (
figure 24). Apply sAE 30W
oil, making sure that the lubricant penetrates the
bearing.
Fill
drain
Always disconnect power
to the machine before
lubricating! failure to do
this may result in serious
personal injury.
Columns/Lead Screws: the four columns should
be lubricated weekly with sAE 30W oil. Unfasten
dust covers to gain access. the four lead screws
should be lubricated with general purpose grease
once a month.
Worm Gear: the worm gear should be inspected
monthly and lubricated with general purpose
grease when needed. remove the worm gear box
to inspect. see parts diagram for location.
Chain: the table height adjustment chain (see
figure 26 on Page 32) should be inspected
monthly and lubricated with general purpose
grease when needed.
Gear box: gear box oil should be changed after
the first 20 hours of operation (see
figure 23).
replace with 80W-90W gear oil. inspect levels
periodically and change yearly. replace gear
oil more frequently under heavy use. Fill until oil
reaches the top of the filler plug port for correct
oil level.
6. Close the v-belt cover and motor access
panel.
Note: The correct tension for the V-belts is 1 ⁄
4
"
deflection when pushed in the center with moder-
ate pressure. After the first 16 hours of belt life,
retension them, as they will stretch and seat dur-
ing this time.
