Model g1033X (Mfg. since 4/12)
-21-
SECTION 4: OPERATIONS
Damage to your eyes, lungs, and ears could
result from using this machine without
proper protective gear. Always wear safety
glasses, a respirator, and hearing protection
when operating this machine.
NOTICE
If you have never used this type of machine
or equipment before, WE STRONGLy REC-
OMMEND that you read books, review
industry trade magazines, or get formal
training before beginning any projects.
Regardless of the content in this section,
Grizzly Industrial will not be held liable for
accidents caused by lack of training.
To reduce the risk of
serious injury when using
this machine, read and
understand this entire
manual before beginning
any operations.
Loose hair, clothing, or
jewelry could get caught
in machinery and cause
serious personal injury.
Keep these items away
from moving parts at all
times to reduce this risk.

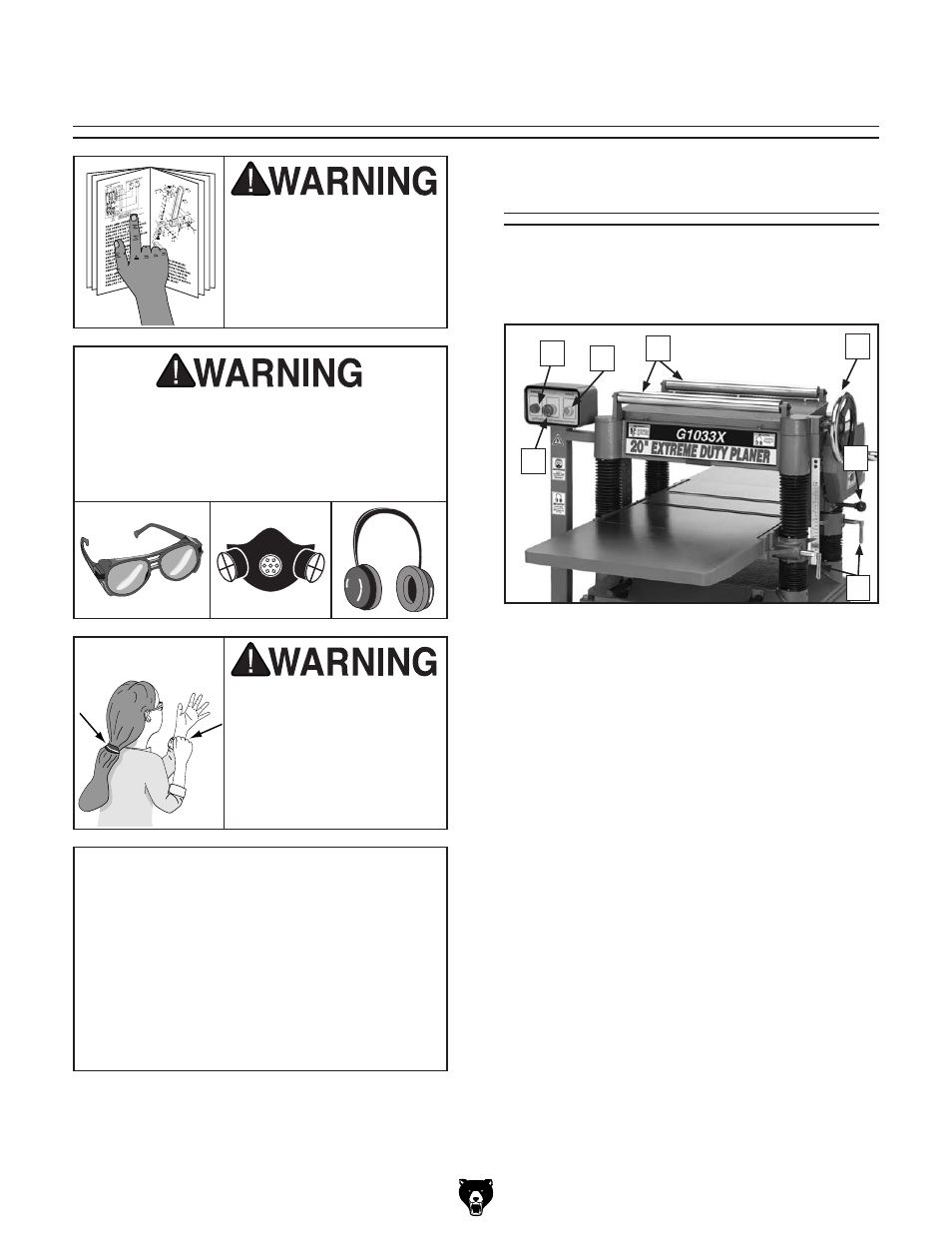

basic Controls
Use figure 13 and the following descriptions to
become familiar with the basic controls of your
planer.
A. Power Light: illuminates when machine is
energized and ready to operate.
b. Stop button: interrupts power and turns the
motor OFF. twist the button until it pops out
to re-energize the machine.
C. Start button: turns the motor ON.
D. Return Rollers: provide a convenient meth-
od for returning workpieces to the infeed side
of the planer.
E. Table Height Handwheel: Controls the ele-
vation of the table under the cutterhead.
f. feed Rate Control Knob: switches the feed
rollers between high and low feed rates or, in
the center position, stops the feed rollers.
G. Table Locks: locks the table in position so
it does not move during operations.
figure 13. Basic controls.
E
B
C
A
d
g
F
