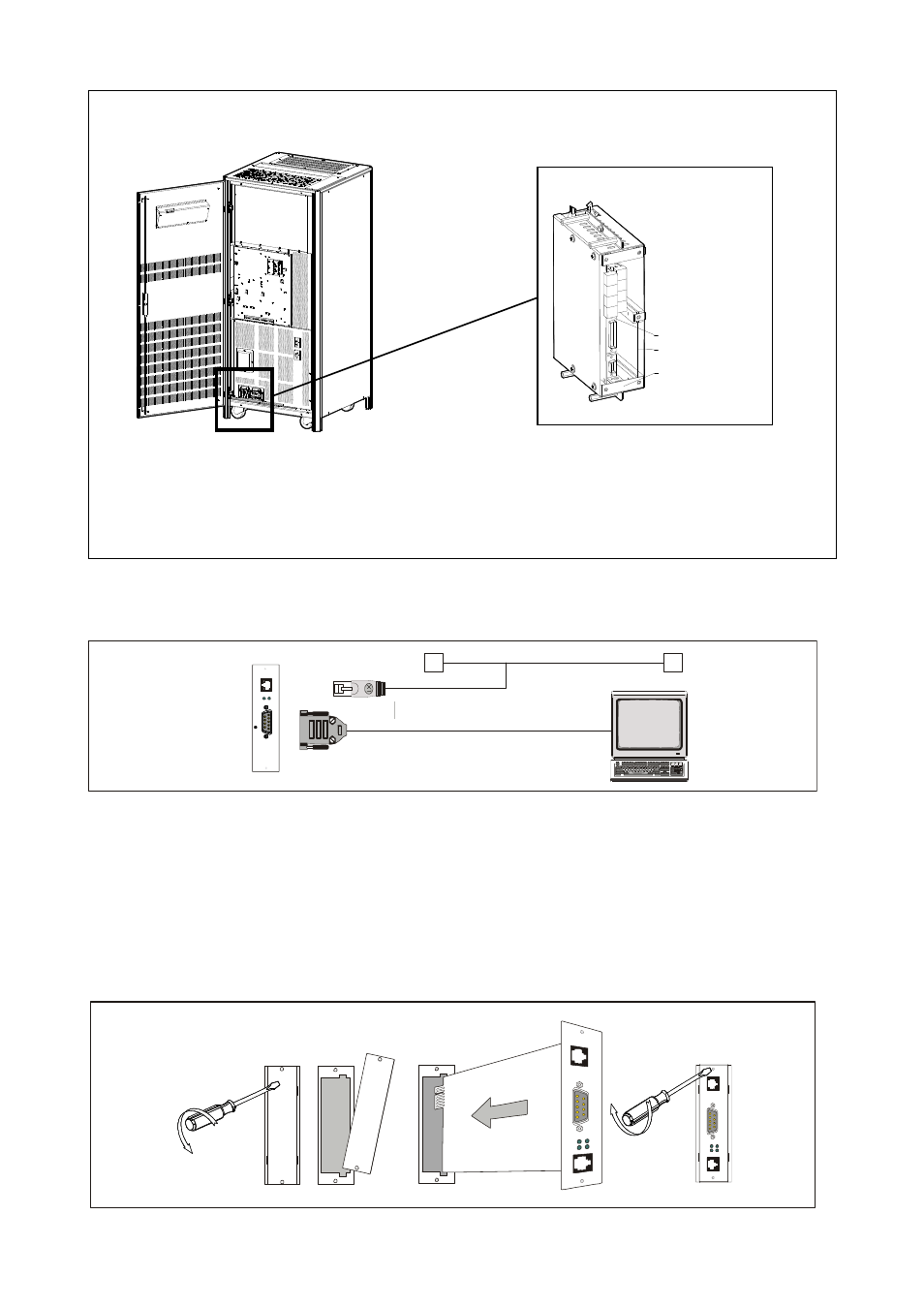

Install procedure for SG Series
SG
T 5 00
0 _ 0 5 0-
080_U
PS_G
E _03
Q1
OF
F ON
Q2
ON
OF
F
1. Change the front plate with the smaller one delivered with the Kit.
2. Insert the SNMP adapter in the options slot.
3. Fix the front plate of the SNMP adapter to the connectivity box, using the screw included in the
SNMP/Web adapter kit.
3.1.3 Connecting the card
Refer to the architecture detailed in Section 2.4.
Now, the UPS may be switched on (or back to normal mode from manual bypass).
3.2 1-PH SNMP/WEB PLUG-IN ADAPTER (P/N 1019070)
• Switch off the UPS, and wait approx. 2 minutes or switch the UPS to the manual bypass. In the
latter case, please ensure that the mains input is reliable during this period.
• Install the SNMP/WEB Interface card in the RS232 option slot. For more details about the slot please
read the UPS user manual.
Connectivity box
C N T _C
us
to m er I nt er fa c e_
01
P4
Adv. SNMP Card
Protection
Plate
