LEDs
The various front panel LEDs have the following meaning:
•
LAN / Netlink
Status Meaning
Off
No LAN connection detected
LAN connection established, no communication
On
LAN connection established, receive or transmit active Blink
• UPS / Fail
Status Meaning
OK / No Fault Off
No UPS Connection On
• Active
Status Meaning
Fault of device Off
Device OK / No fault Blink
2.3 FEATURES
Each SNMP/Web adapter provides the following features:
•
10/100 Mpbs connection speed
• Use of DHCP / BOOTP or manual configuration for the TCP/IP network settings
• SNMP Agent
• Web server
• Console interface
• UPS status / alarms / readings, event logging over different interfaces
• Digital outputs (open-collector outputs for relay drive) – 1-ph plug-in version only
• SNMP Traps and E-mail notification upon UPS event
• Advanced security features

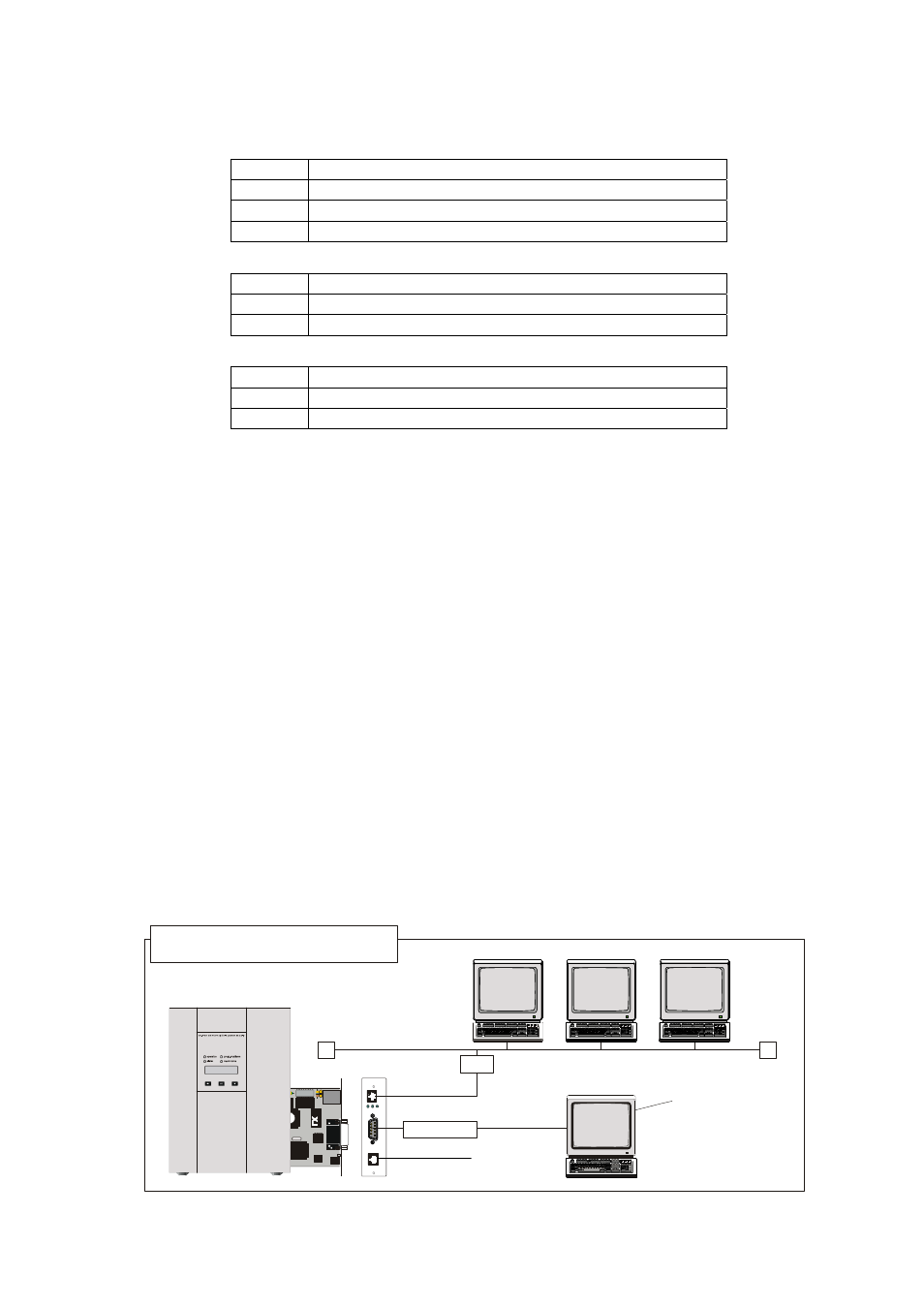

2.4 ARCHITECTURE
ARCHITECTURE DIAGRAM
UPS
Windows Linux UNIX
Ethernet
Local console
NOTE:
only required for
configuration
UTP
1:1 RS232
10/100 Mbit/s
Contact i/f
(1-ph plug-in version only)
Modifications reserved Page 12/24
ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter
