3 INSTALLATION
NOTE !
Strictly observe the ‘UPS Safety Rules’.
Read carefully the UPS ‘Operating Manual & Installation
Guide’ before installing or operating the equipment.
If any problems are encountered with the installation
procedure here described, please contact the nearest
Service Centre before proceeding.
3.1 3-PH SNMP/WEB PLUG-IN ADAPTER (P/N 1018959)
NOTE !
SitePro customers only
SitePro units produced before 2003 require an additional
protective ground connection – refer to APPENDIX A.
3.1.1 Setting the logical address
The logical address is configured through dip-switch SW1 in the following way:
Logical Address
Dip 1
Dip 2
SNMP Card 0
(1)
84
(54h)
ON
ON
SNMP Card 1
85
(55h)
ON
OFF
SNMP Card 2
86
(56h)
OFF
ON
SNMP Card 3
87
(57h)
OFF
OFF
(1) Default setup

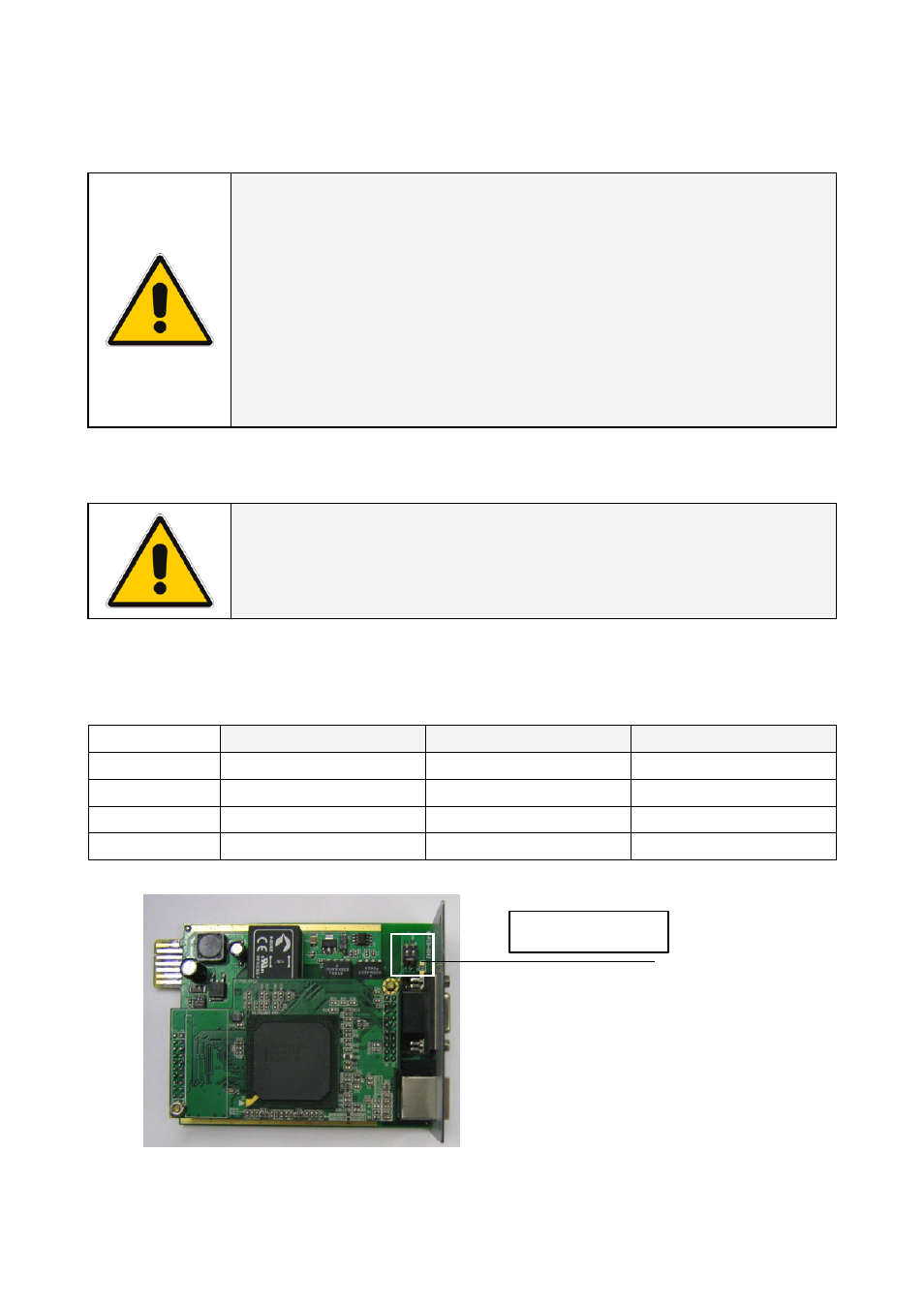

Dip-switch SW1
NOTE: The logical address is a critical setting when more than one SNMP Card is installed in the same
UPS system.
