GE Industrial Solutions Digital Energy SNMP_WEB ADAPTER - Manual (Page 11)

• 1 – RJ45 Connector Ethernet connection, 10Base-T or 100Base-TX
• 2 – LEDs Ref. specific section
• 3 – RS-232 port Local console connection (115200-N-8-1)
• 4 – Reset button HW reset
• 5 – RJ11 Connector Contact interface, open-collector output

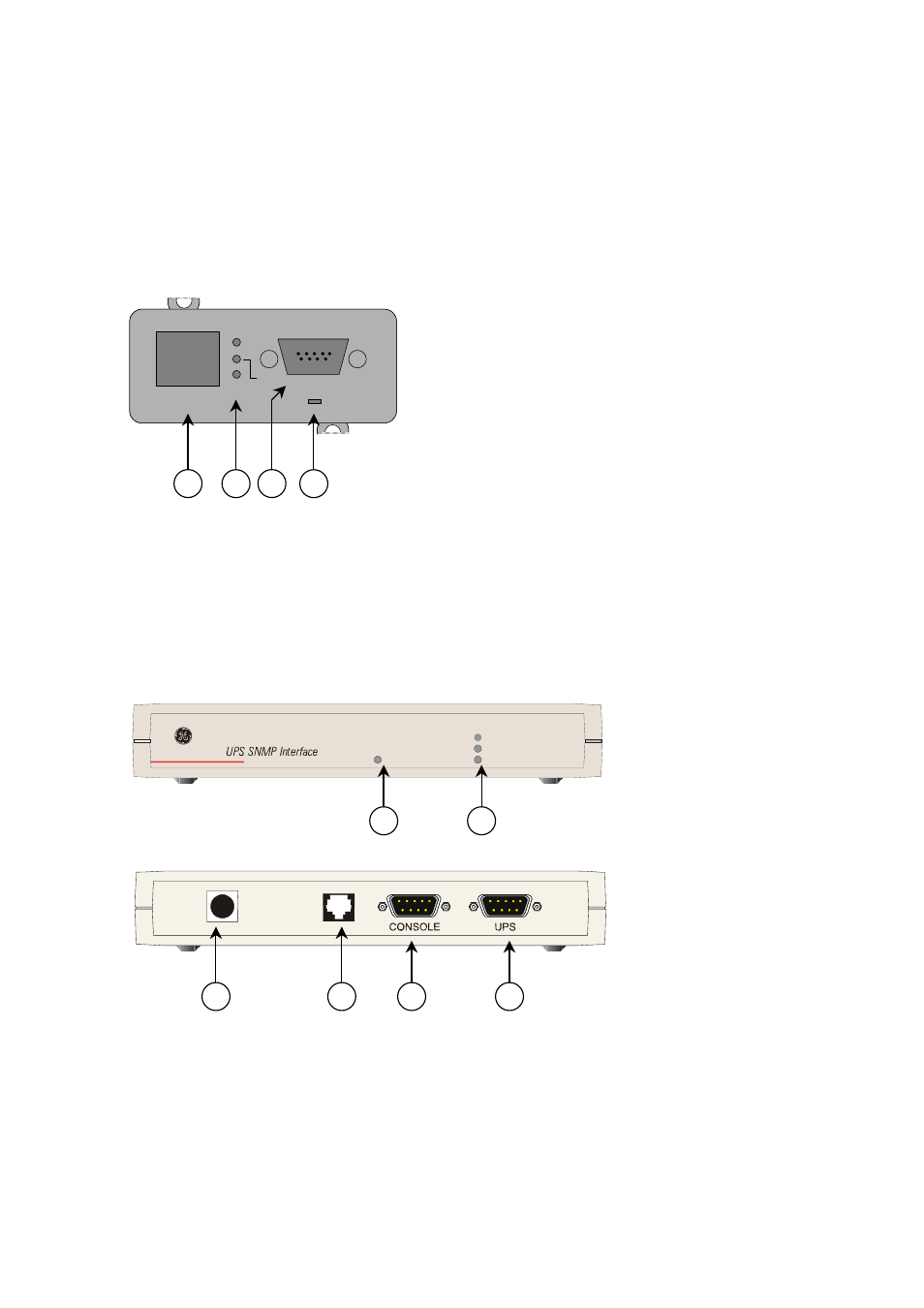

SP SNMP/Web plug-in adapter (P/N 23954)
•
1 – RJ45 Connector Ethernet connection, 10Base-T or 100Base-TX
• 2 – LEDs Ref. specific section
• 3 – RS-232 port Local console connection (115200-N-8-1)
• 4 – Reset button HW reset
1-ph SNMP/Web external adapter (P/N 1019071)
•
1 – RJ45 Connector Ethernet connection, 10Base-T or 100Base-TX
• 2 – LEDs Ref. specific section
• 3 – RS-232 port Local console connection (115200-N-8-1)
• 4 – Reset button HW reset
• 6 – Power-in AC adapter connection
• 7 – UPS port RS-232 connection to the UPS
Net link
Fault
Active reset
Front
View
2 4
3 1 6 7
Rear
View
Reset
RS-232
UTP 10/100
Active
LAN
UPS
Reset
RS-232
UTP 10/100
Active
LAN
UPS
Front
Panel –
User
Interface
View
1 3 2 4
Modifications reserved Page 11/24
ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter
