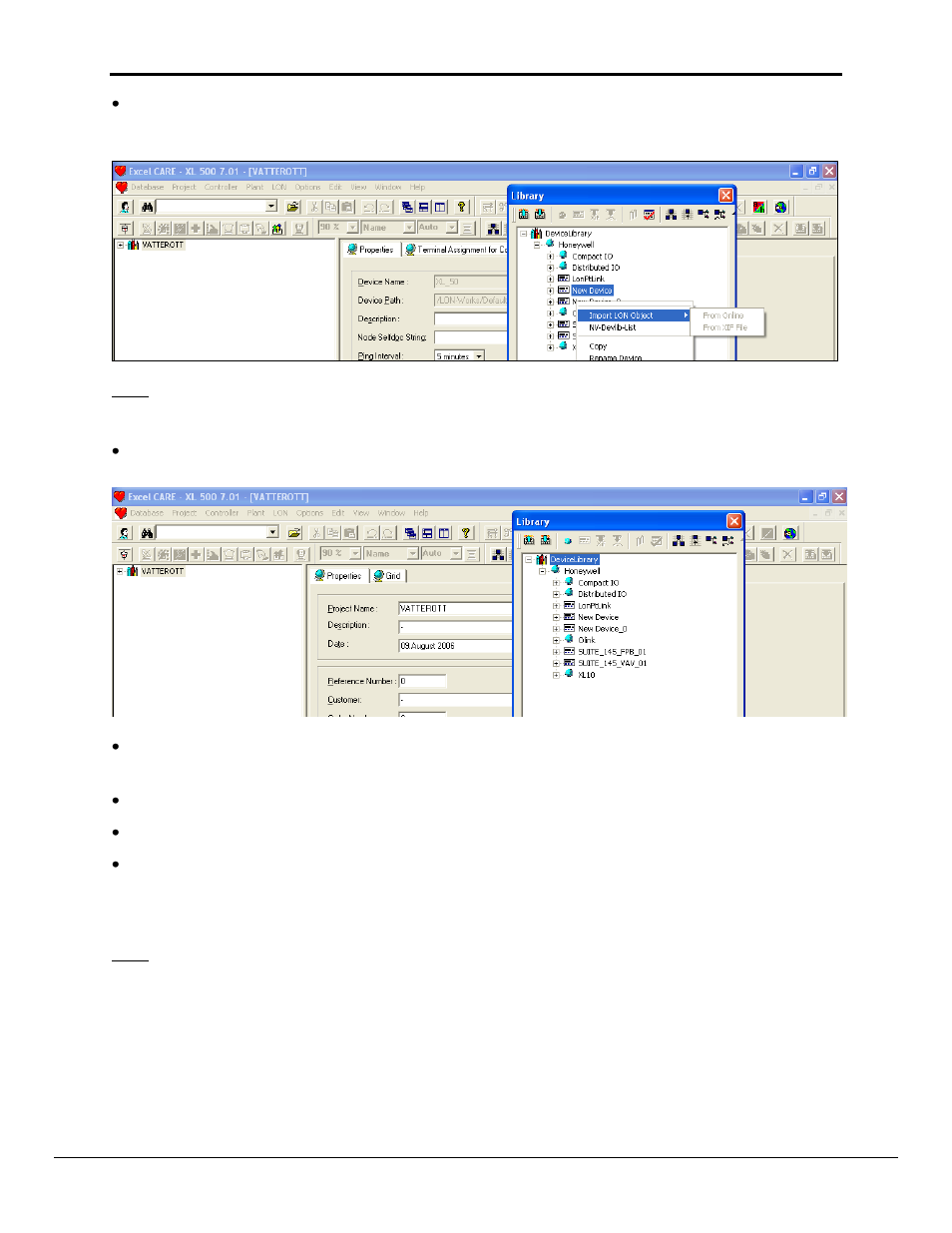

Right click on the new Lon device created in the device library and select Import Lon Object>From Online. This
will upload the PT Link configuration into the new device.
Note: All Controllers that will be connected to the PT Link must be powered up and communicating to the PT Link
before uploading the new device.
Rename the new device e.g. LonPtLink, and drag it into the default channel.
Create the pseudo points to be bound to the PT Link. Leave them as non Lon Points for now and setup any
engineering units.
Open the Controller that you are binding from in the network tree and go to the Terminal Assignments tab.
Drag the newly created LonPtLink device into the Terminal Assignment window.
Now drag the pseudo points from the XL5000 controller and drop them onto the appropriate NV’S.
The example below shows the pseudo digital 2 stat RTU_01_ENABLE in the XL50 bound to the NVI schedule force
(shcdfrc) on the PT Link. Using the autobind in Care will automatically configure the required snvt and lon nv.
Note: The schdfrc nv is the occupancy point. The pseudo point has to be set to a logical 1 for occupied and a logical
0 for unoccupied.
