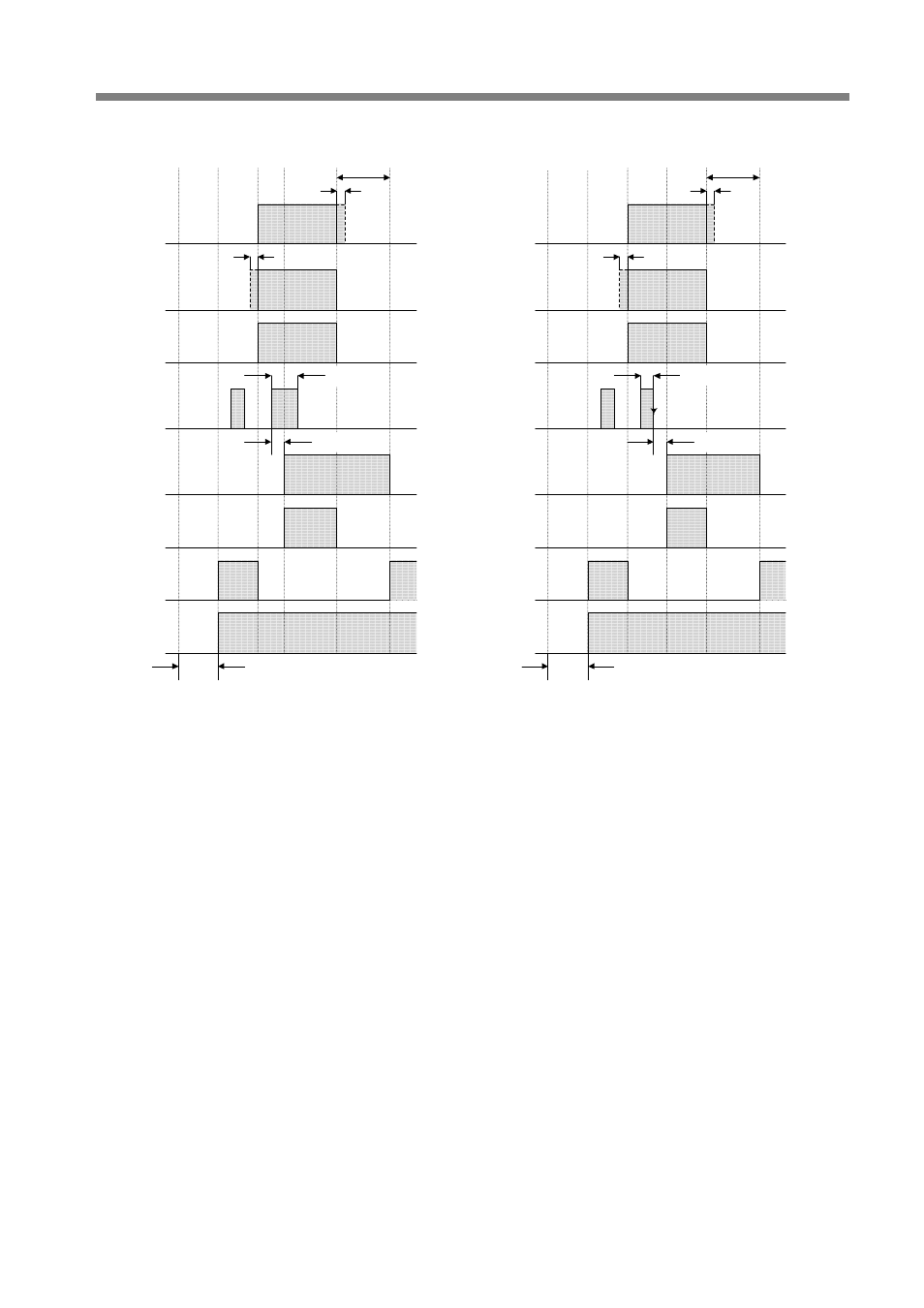

Timing chart (Logic 3)
(X2...X13 are ON in this timing chart.)
Safety input : X0
Manual start input
: X16
Safety output :
Y0,Y1,Y2,Y3
Monitor output for
X0 and X1 : Y4
Monitor output for
safety output :
Y12,Y13
RUN monitor :
Y16
Solenoid output :
Y17,Y20
Power ON Safety output ON
Off delay
time
Safety input : X1
Safety input : X0
Control start input
: X17
Safety output :
Y0,Y1,Y2,Y3
Monitor output for
X0 and X1 : Y4
Monitor output for
safety output :
Y12,Y13
RUN monitor :
Y16
Solenoid output :
Y17,Y20
Power ON Safety output ON
Off delay
time
Safety input : X1
0.1s...5s
1.Using the manual start input (X16) 2.Using the control start input (X17)
Max. 6s Max. 6s
Note Note
Note: When the input time difference at the dual channel solid state inputs (X0-X1 and X2-X3) is 0.1s or more,
an input monitor error is detected .
When the input time difference at the dual channel direct opening inputs
(X4-X5, X6-X7, X10-X11, and X12-X13) is 0.5s or more,
an input monitor error is detected.
Refer to “Logic functions” for details.
Note
Max. 0.1s
Min. 0.1s
Note
Max. 0.1s
(X2...X13 are ON in this timing chart.)
Initialization Initialization
