Start input specifications
Rated input voltage 24V DC
Input ON voltage 15.0V DC to 28.8V DC
Input OFF voltage Open or 0V DC to 5.0V DC
Number of start input terminals 2 （X16,17）
Input current 5mA per port (at rated voltage)
Type of input Sink type input (for PNP output), Type 1 （IEC/EN61131-2）
Cable length Note1 100m maximum (total wiring length per 1 input)
Allowable wiring resistance 300Ω maximum
Note1. For cables longer than 30m between SafetyOne and connected devices, use grounded
shielded cables to assure electromagnetic compatibility.

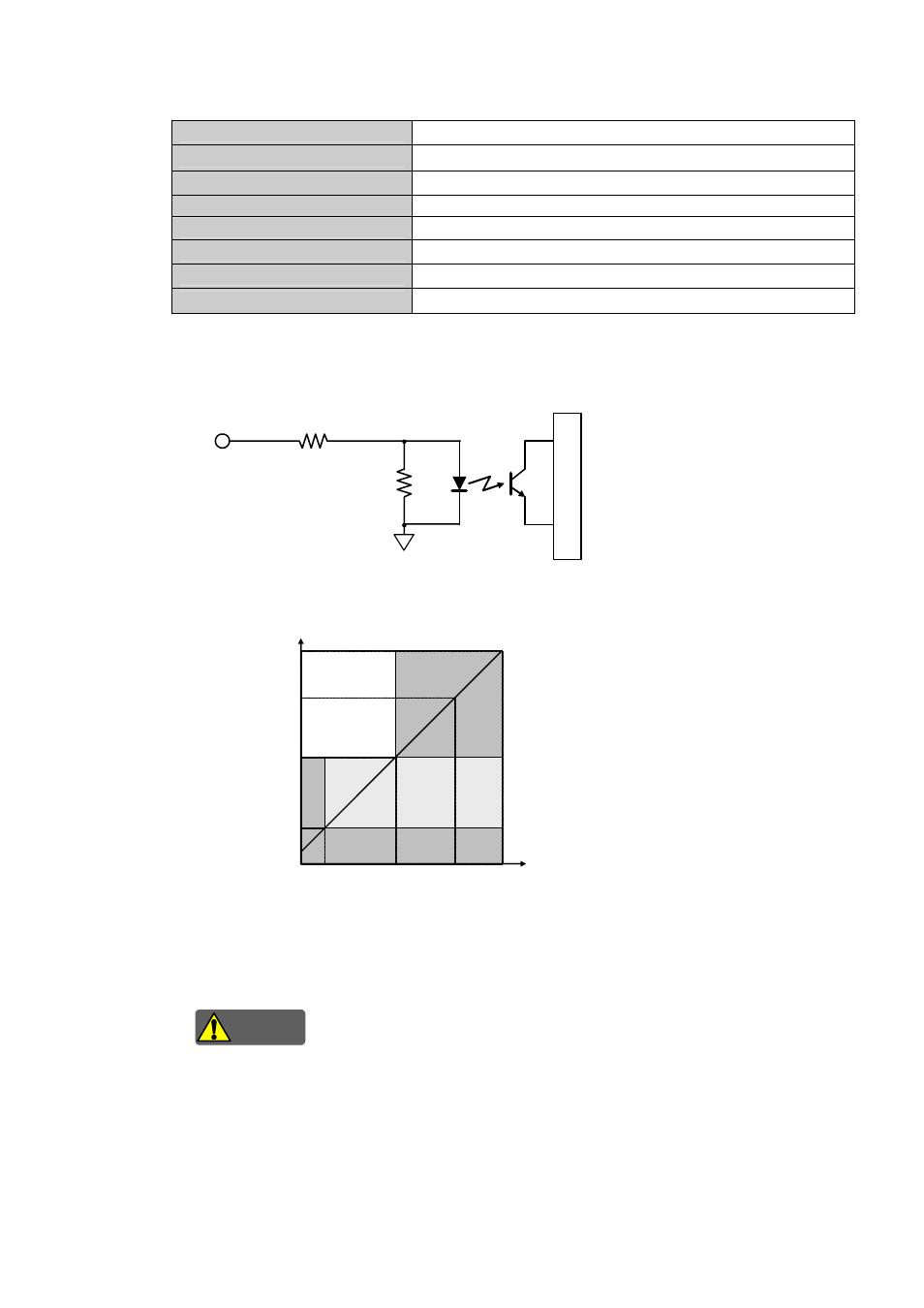

Start input equivalent circuit
Start input operating range
Operating specification of start inputs are different depending on the configured logic number.
For more details, refer to “Chapter 5 LOGIC”. But the basic input specifications are not
changed.
Warning
Do not use start inputs as safety inputs. This may cause the loss of safety functions and
possible failure in the SafetyOne or peripherals.
Voltage(V)
Current
(mA)
28.8
24
15
5
0.5 3 5 6
ON area
Transition area
OFF area
In
te
rn
a
l C
ir
c
ui
t
4.7kΩ
V-
X16, X17
