3-24 Troubleshooting and Diagnostics HP Pavilion zt1100/xz100 Omnibook xt1000
Note that the parallel port test is more thorough if you connect a loop-back connector to the port
before running the test. See the wiring diagrams below.
14
1
25
13

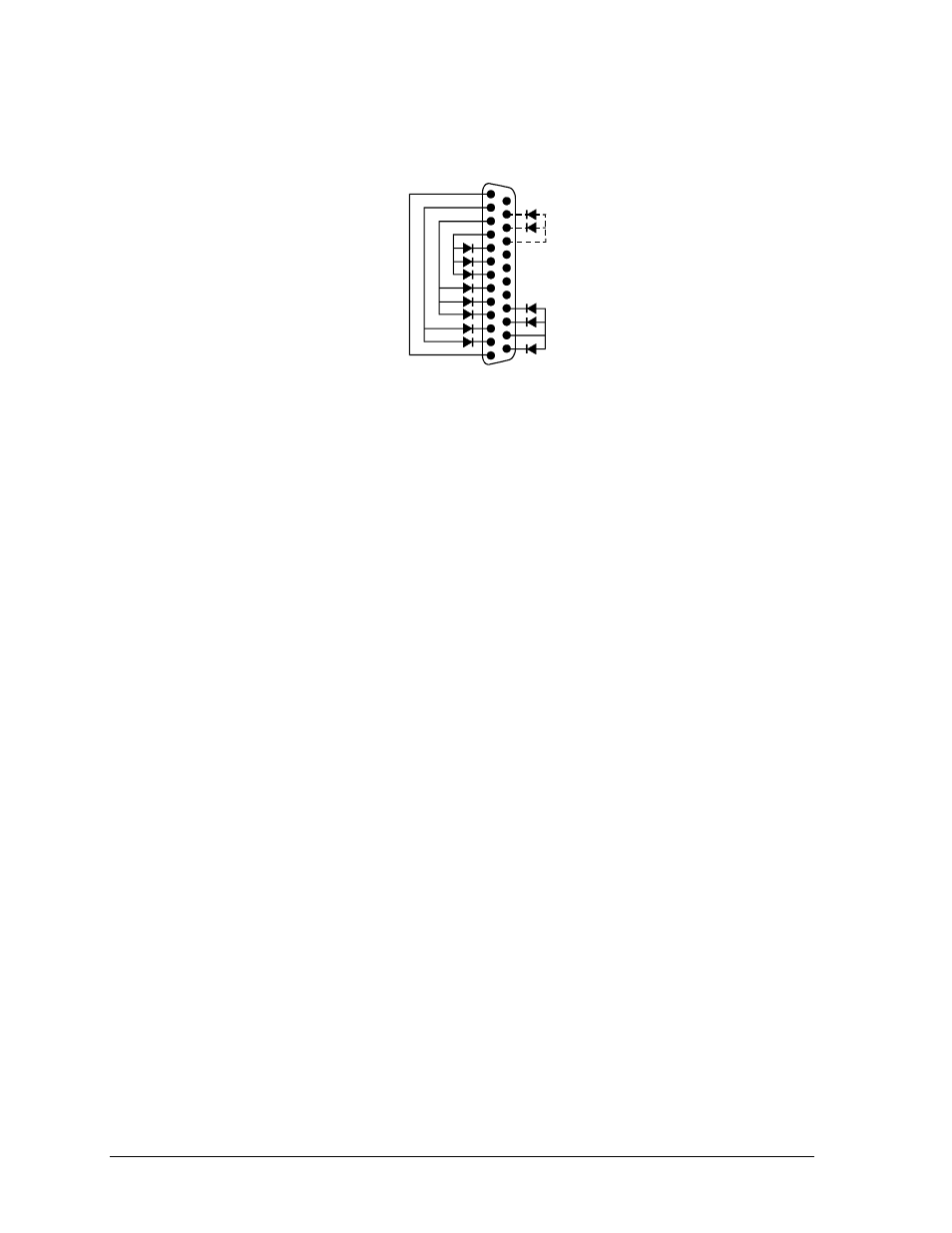

Figure 3-3. Parallel Loopback Connector
Interpreting the Results
The e-Diagtools diagnostic program returns test groups, error codes, and suggestions for repair and/or
follow-up actions. Consider these suggestions in combination with other troubleshooting information
in servicing the notebook.
