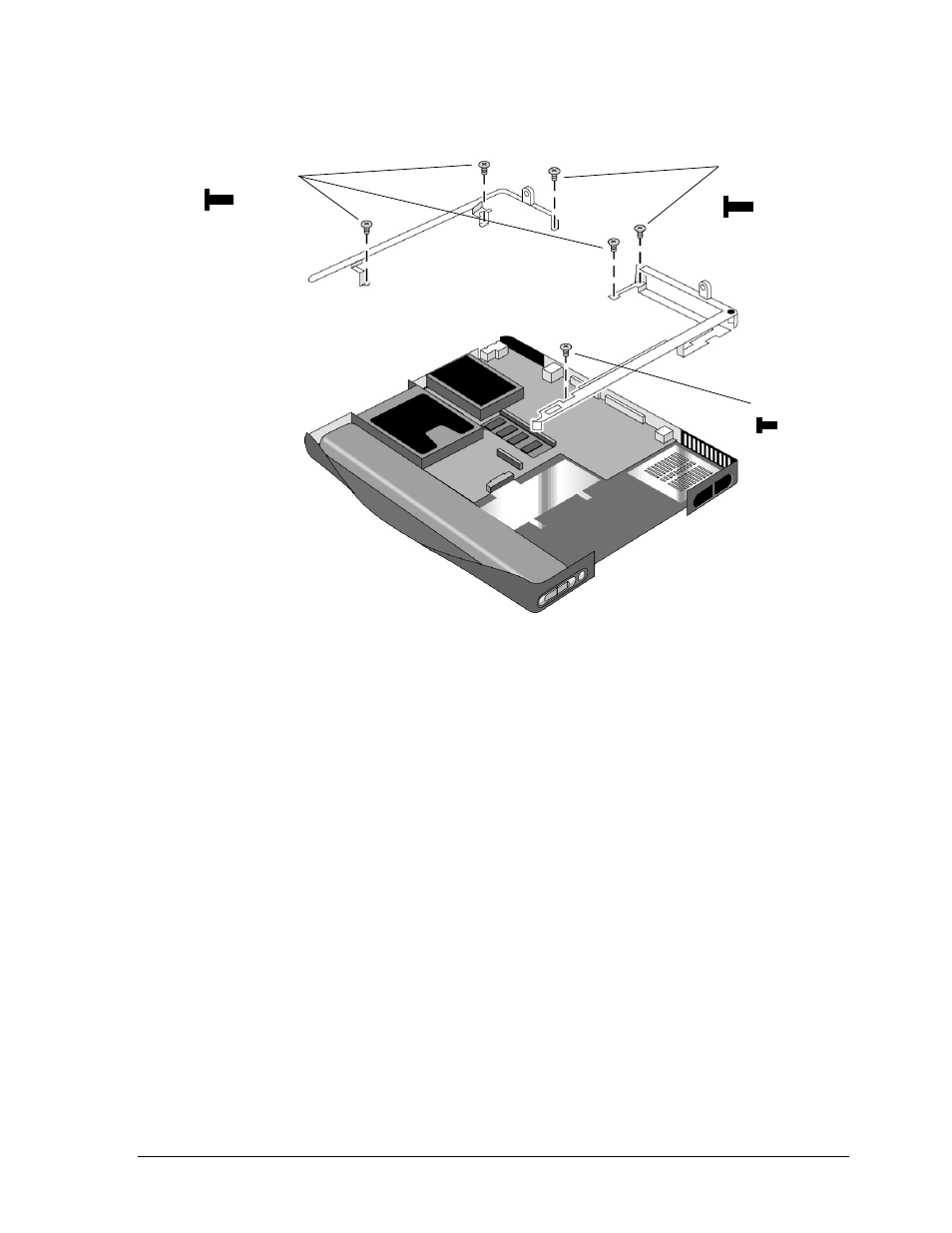

Figure 2-22. Removing the Hinge Saddles
Reassembly Notes
• Make sure the posts on the underside of the hinge saddles line up with the openings in the bottom
case, and that the holes in the front ends of the saddle fit over the alignment posts in the bottom
case.
Screw, M2×4mm
Screws,
M2.5x6mm (3)
Screws,
M2.5x6mm (2)
