HP Pavilion zt1100/xz100 Omnibook xt1000 Removal and Replacement 2-21

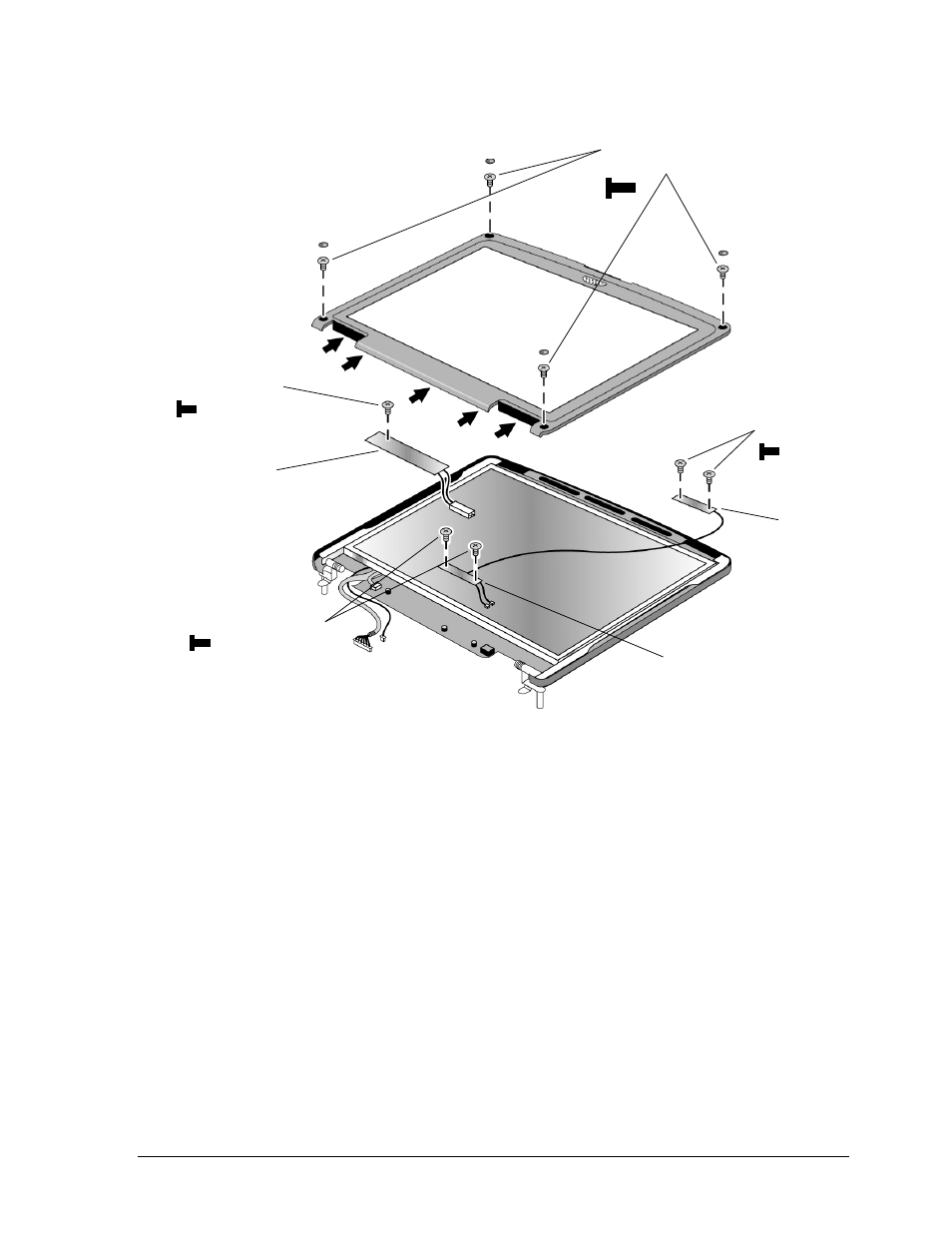

Figure 2-16. Removing Display Assembly Components
Reassembly Notes
• Make sure the alignment hole in the inverter PCA fits over the corresponding post in the display
case.
• Make sure the alignment hole in the wireless antenna fits over the corresponding post in the display
case.
• Set the bezel in place on the display, then work your way around the bezel, firmly snapping the
bezel latches shut.
• The rounded screw covers go on the screws at the top of the display bezel, and the flat covers go
on the screws at the bottom of the bezel.
Screw, M2×4mm
Screws, M2×4mm (2)
Screws, M2×4mm (2)
Screws,
M2.5x6mm (4)
Inverter PCA
Bluetooth antenna
802.11b
antenna
