2-26 Removal and Replacement HP Pavilion zt1100/xz100 Omnibook xt1000

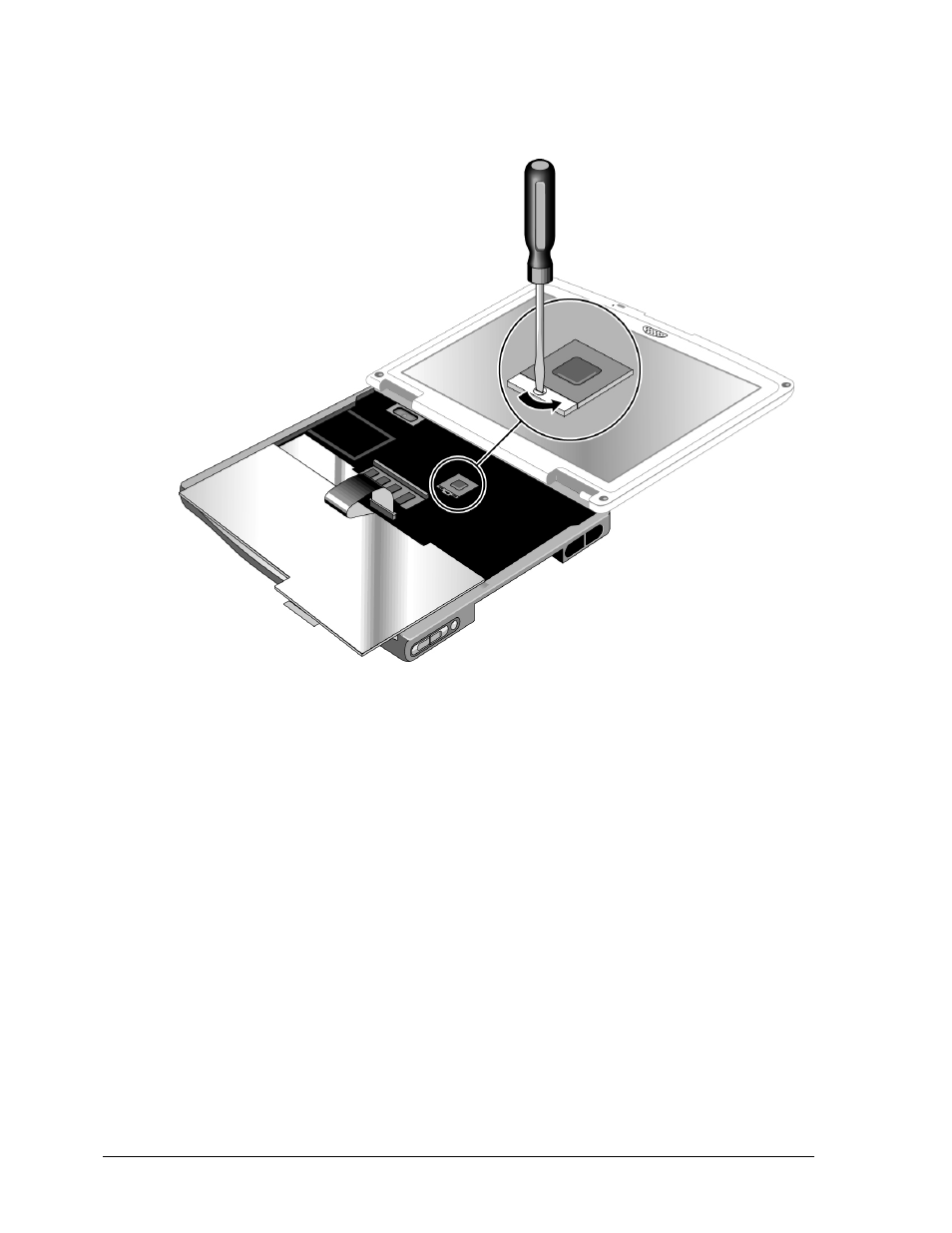

Figure 2-19. Removing the CPU Module
Reassembly Notes
• Carefully reinsert the module into its socket. Make sure the module is fully seated, and that none of
its pins are bent or otherwise damaged.
• Carefully insert the tip of the flat-blade screwdriver in the CPU module lock mechanism, and turn
the screwdriver a few degrees clockwise until the mechanism clicks into its LOCK position. (The
CPU socket moves slightly to the right when this happens.)
