Operating Instructions
153 146 91
C 9.92
Operating the attachments

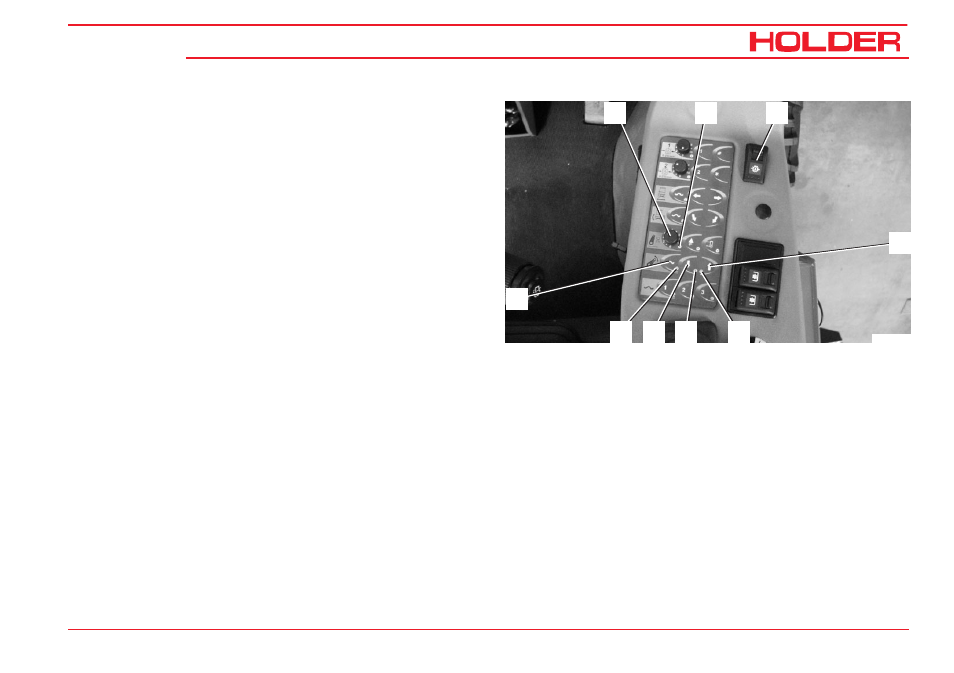

Operating the front lift with the membrane keyboard
The following movements are possible:
Turn on the master switch (3) for working hydraulics.
- Keep key (4) depressed for approx. 1 second. The red
LED indicator (5 and 2) will come on for approx. 5
seconds.
•
The front lift (attachment) will be lifted
until the LED indicator extinguishes.
You can stop the movement by pressing key (4,7) or by
moving the joystick.
-
For lowering, press key (7) for approx. 1 second. The
red LED indicator (6 and 2) will come on.
•
The front lift (attachment) will be lowered
until the LED indicator extinguishes.
The lifting and lowering speed can be controlled by turning
the adjustment knob (1).
-
Turn the rotary knob (1) to the left - slower.
- Turn the rotary knob (1) to the right - faster.
You can also turn on the float position:
-
To do so, press key (9) for approx. 1 second. The red
LED indicator (8) will come on.
•
The float position of the front lift is
turned on, ie the attachment can be moved by the
application of an external force.
- To turn it off, press key (9,7 or 4) or move the joy-
stick. The red LED indicator (8) will extinguish.
