Holder C 9.92 H - Manual (Page 32)

C 9.92 Operating Instructions
30 153 146
Description

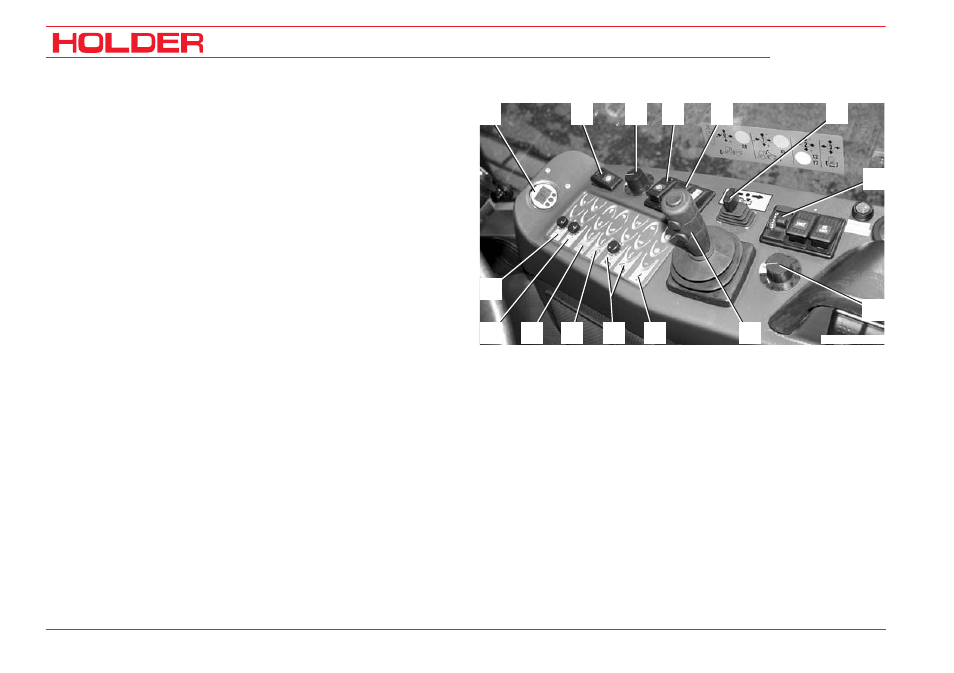

Controls on right front console
1 Pressure gauge for hydraulic accumulator*
2 Master switch for working hydraulics
3 Fine adjustment knob for attachment variable pump*
4 Switch for attachment variable pump*
5 Front PTO* switch
6 Forward/reverse switch
7 Driving program switch
8 Fine adjustment knob for ground speed (in ground
speed ranges 3 and 4)
9 Joystick for working hydraulics
10 Float positions for 3 plug-in quick couplings
11 Membrane keyboard for front lift
12 Membrane keyboard for tilt control
13 Membrane keyboard for lateral control*
14 Membrane keyboard for 2nd circuit priority flow
valve*
15 Membrane keyboard for 1st circuit priority flow valve*
* Option
