Maintenance every 1000 service hours
Lubricating the universal joints (at least
once a year)
- Turn the steering wheel right or left until the steering
stop is met.
CAUTION
Carry out services in the articulated joint area
only with the engine shut off.
- Remove the rubber protector.
- Adjust the top articulated shaft (1) by hand until the
grease nipples are easily accessible.
- Grease the top articulated shaft.
- Move centre articulated shaft (2) with starter until
grease nipples are easily accessible.
CAUTION
Never let anyone stand in the area of the articu-
lated joint when the starter is being operated.
- Grease the middle articulated shaft.
- Adjust the lower articulated shaft (3) by moving the
tractor forward or back until grease the nipples are
easily accessible.
- Grease the lower articulated shaft.
- Refit the rubber protector at the articulated joint.
ATTENTION
Do not press in too much grease when lubri-
cating the universal joints as this could dam-
age the sealing.

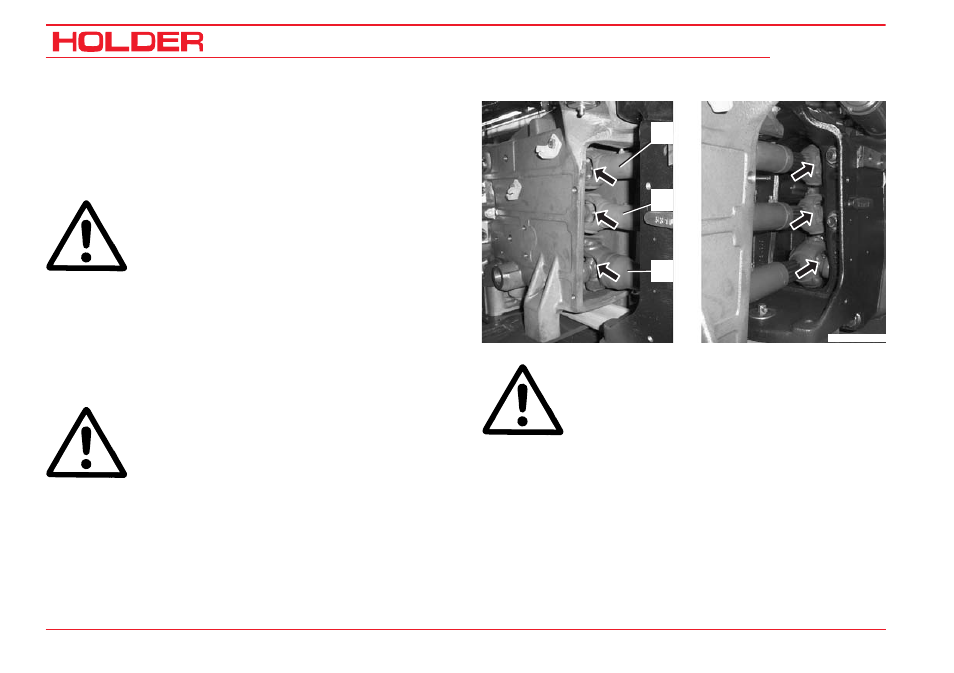

Bild_S 990_043
1
2
3
