Operating Instructions
153 146 85
C 9.92
Operating the attachments

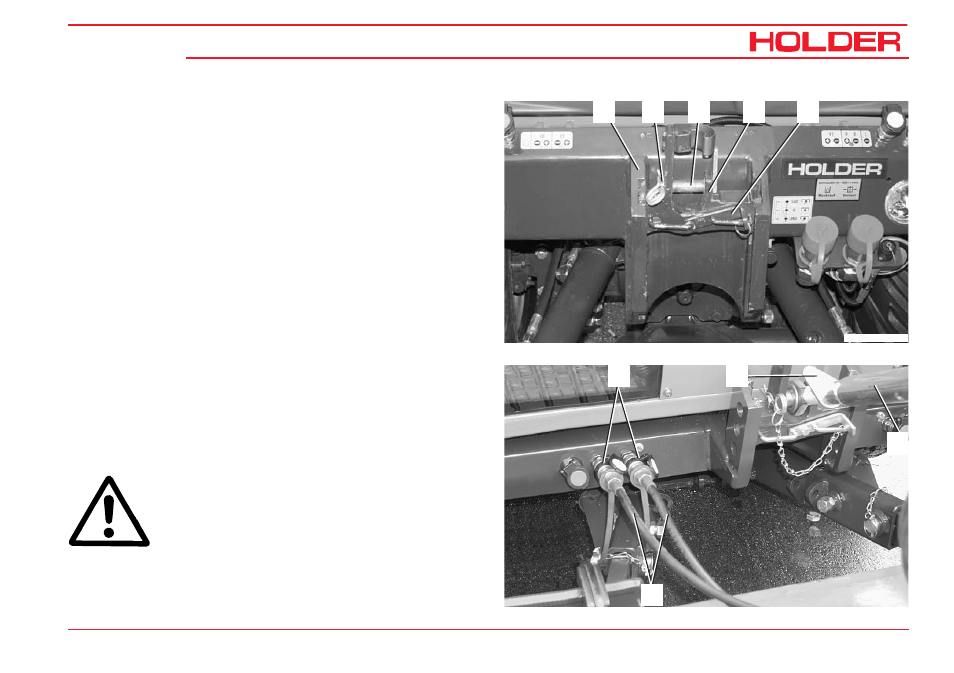

Adjusting the upper link slide and upper link
The upper link slides are height-adjustable. The required
height depends on your attachment.
1 Upper link bracket
2 Locking pin
3 Upper link pin
4 Upper link slide
5 Height adjustment lever
- Raise the height adjustment lever (5).
- Slide the upper link slide (4) into one of the 4 possible
positions.
- Release the height adjustment lever to engage the
upper link bracket.
- Pull the spring cotter (2) from the pin (3) and pull the
pin out to the side.
- Adjust the upper link arm (8) to a suitable length (by
screwing the sleeve in or out) and secure the top link
with the locking lever (7).
ATTENTION
Both threads must be screwed in equally far.
- Install the eye of the upper link arm on the pin and
secure the pin again with the spring cotter.
6
9
7
8
Bild_C992H_031
1 2 3 4 5
