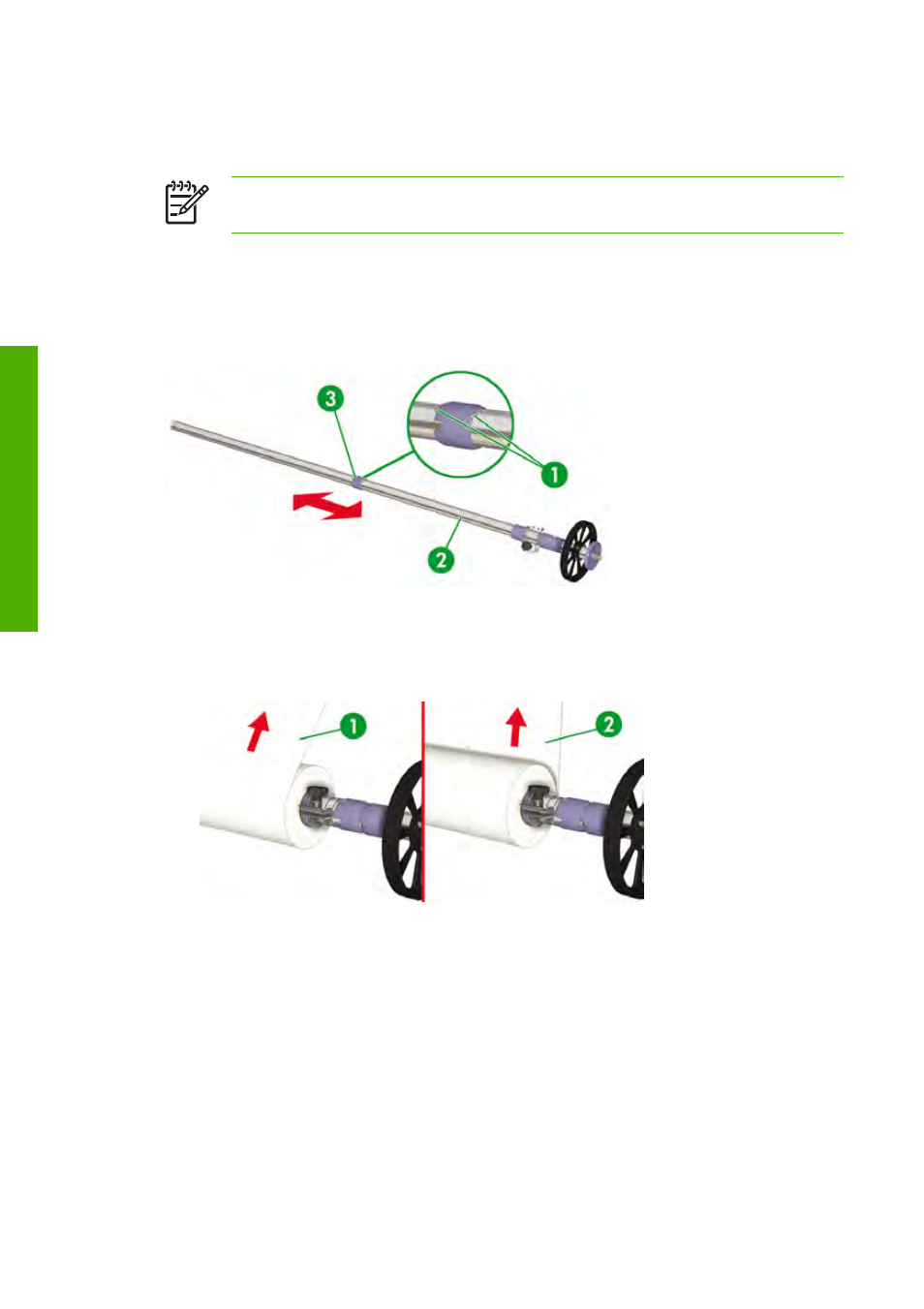

5. Position the media roll spacer on the main scroller to a position equivalent to the middle (half the width)
of the media roll you are going to load.
NOTE The media roll spacer stops the weight of the media from causing the roll to sag at
the center.
a. Replace the media roll spacer (3) onto the main scroller (2).
b. Slide the spacer (3) to the required position on the main scroller (2). There are three positions
available, each of which corresponds to the middle position of different width media rolls.
c. Replace and tighten the two locking screws (1).
6. Install the media roll on the main scroller.
a. Verify the media winding direction for the side of the media you are going to print onto, either the
inside of the media (2) or the outside of the media (1).
80 Chapter 2 How do I perform basic media operations? ENWW
