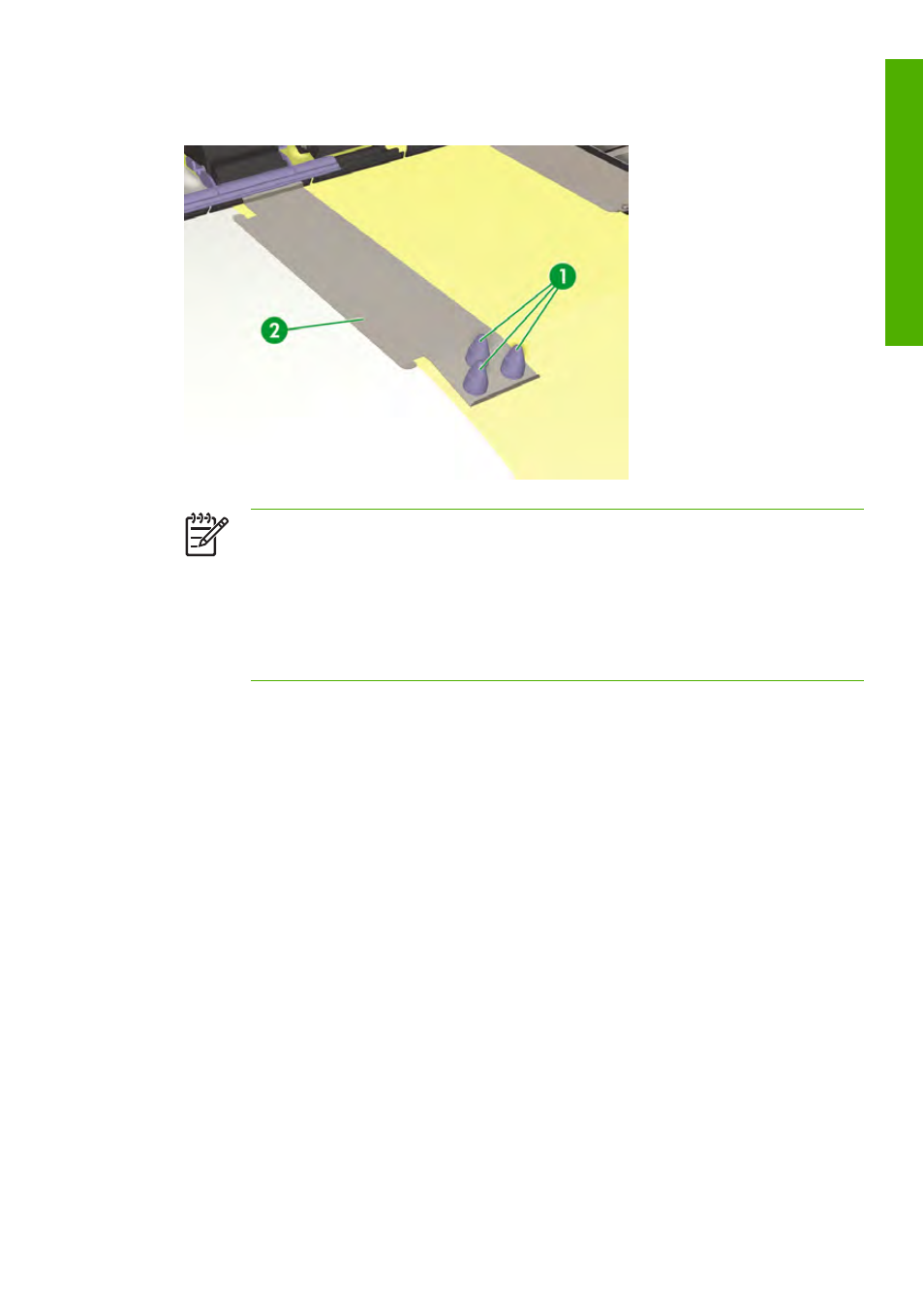

10. If the wiper side edge guard (2) floats, use the attachment magnets (1) to hold it down firmly.
NOTE Use the minimum number of magnets to hold down the plate. Too many
unnecessary magnets may disturb the media feed, causing wrinkles in the media.
Do not install magnets outside the specified area because they could touch the printhead,
causing damage to the printer.
Do not use the side edge guards if they are deformed in any way.
Clean the sides of the edge guards if they become stained with ink.
Use the liner separator bar
Whenever you are printing jobs that require the use of a liner, such as double sided printing or printing on
mesh media, you should use the liner separator bar to ensure optimum print quality. If you have never run
print jobs that require the use of a liner, the support assembly for the liner separator bar might not have
been installed on the printer in order to improve general accessibility on the take-up side. If this is the case,
you will first need to install this support assembly.
The liner separator assembly contains the following parts:
● 2 x support arms (1)
● 2 x support arm end caps (2)
● 1 x liner separator bar (3)
ENWW Use the liner separator bar 183
