Dual media rolls take-up method 4
This procedure describes how to take-up two vinyl chloride (PVC) media rolls onto separate media tubes.
1. Install two suitable empty media tubes on the main scroller, as described in Dual media rolls take-up
method 1 .

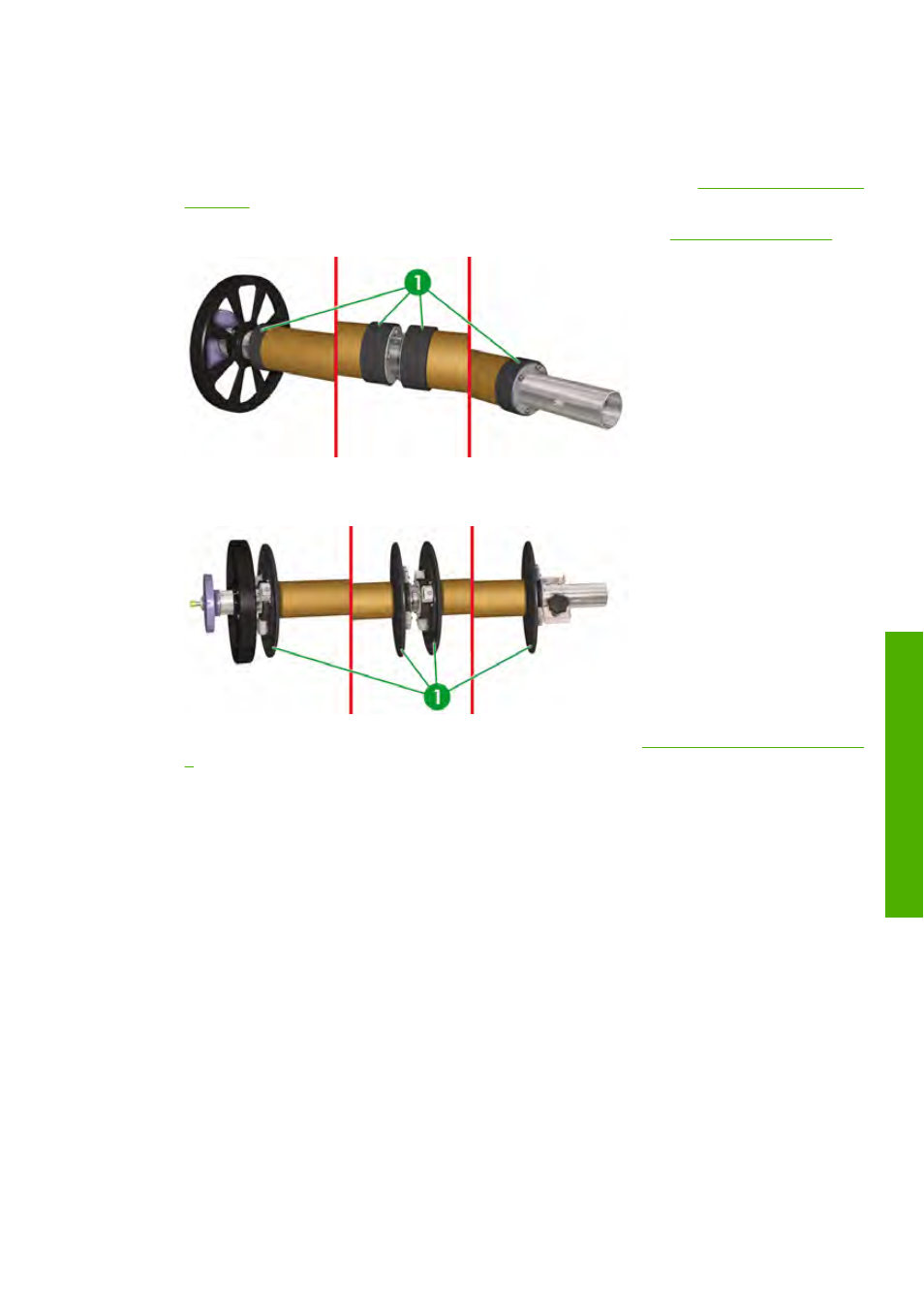

2. Install rubber spacers (1) on the flange spacers as necessary (Refer to Use media tube flanges ).
3. Temporarily install the four media tube flanges (1) on the rubber spacers at the both ends of each
media tube. You will adjust the position of these later according to the actual media width.
4. To complete the operation follow the instructions from step 3 of the Dual media rolls take-up method
1 .
Adjust the back tension of the sub-scroller
If there is an obvious difference in the amount of media feed between the main scroller and sub-scroller,
you should try to adjust the sub-scroller back tension to improve this difference in feed.
ENWW Adjust the back tension of the sub-scroller 125
