CAUTION

To use this process, the media rolls must be of the same width and diameter. If the

diameter is different, please use the sub-scroller and main scroller process.

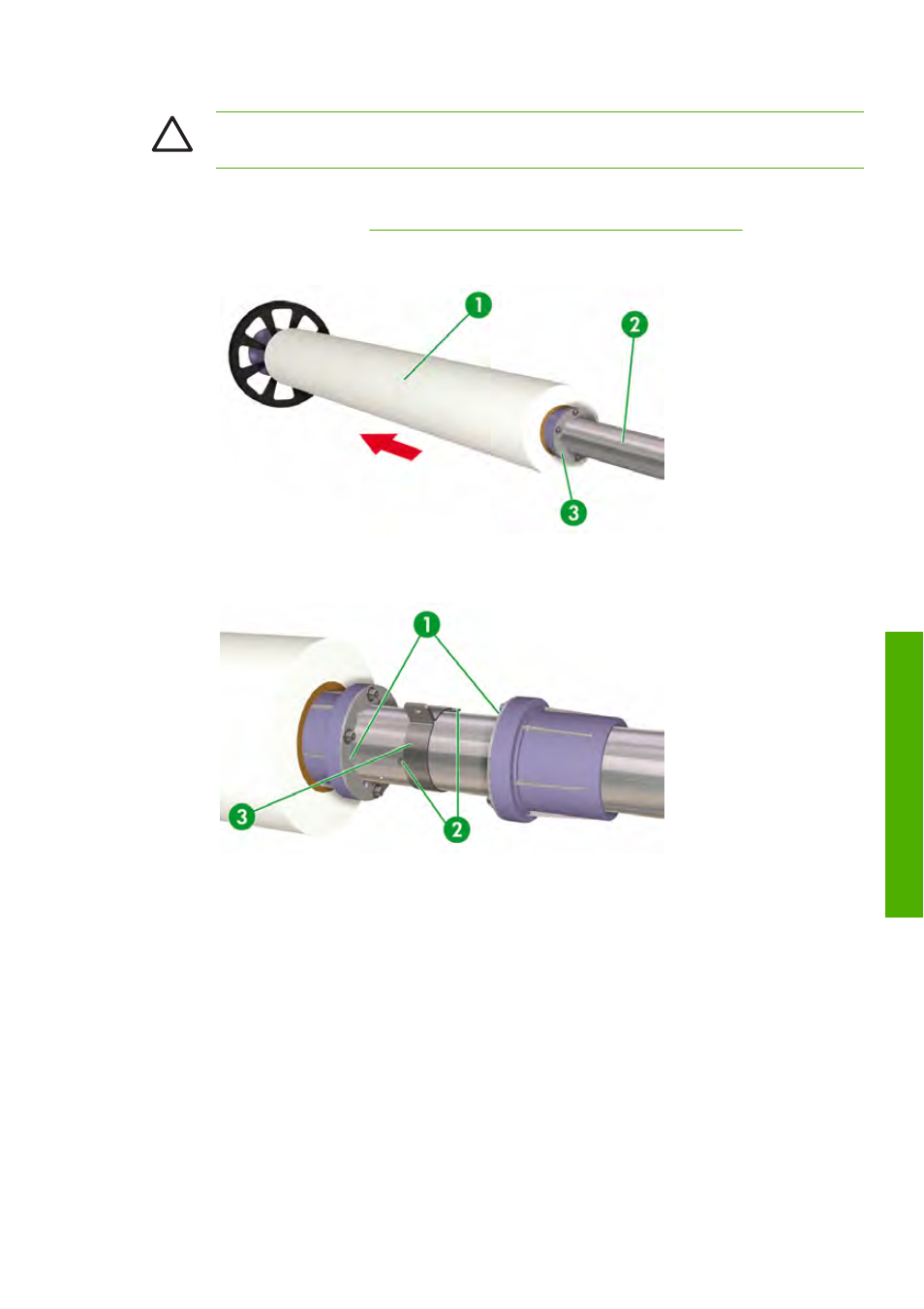

1.

Install the two media rolls on the main scroller.

a.

Follow steps 1 to 3 of

Install a media roll in the printer using the main scroller

to install the first

media roll (1) and flange spacer (3) on the main scroller (2). Do not mount the flange stopper
(not shown) at this stage.

b.

Slide the flange joint (3) and the second flange spacer onto the main scroller shaft and carefully
align the keys (2) of the flange joint (3) with one of the keyways (1) of the flange spacers.

ENWW

Install dual media rolls on the main scroller

109
