Assigning Device Types

To assign a device type:

1. In the Devices dialog box, select the Port number.

2. Click Modify. The Device Modify dialog box is displayed.

3. Choose the number of ports supported by the cascaded console switch.

4. Click OK.

5. Repeat steps 2 through 4 for each port the user wants to assign a device type.

6. Click OK in the Devices dialog box to save settings.

NOTE: Changes made in the Device Modify dialog box are not saved until you click OK
in the Devices dialog box.

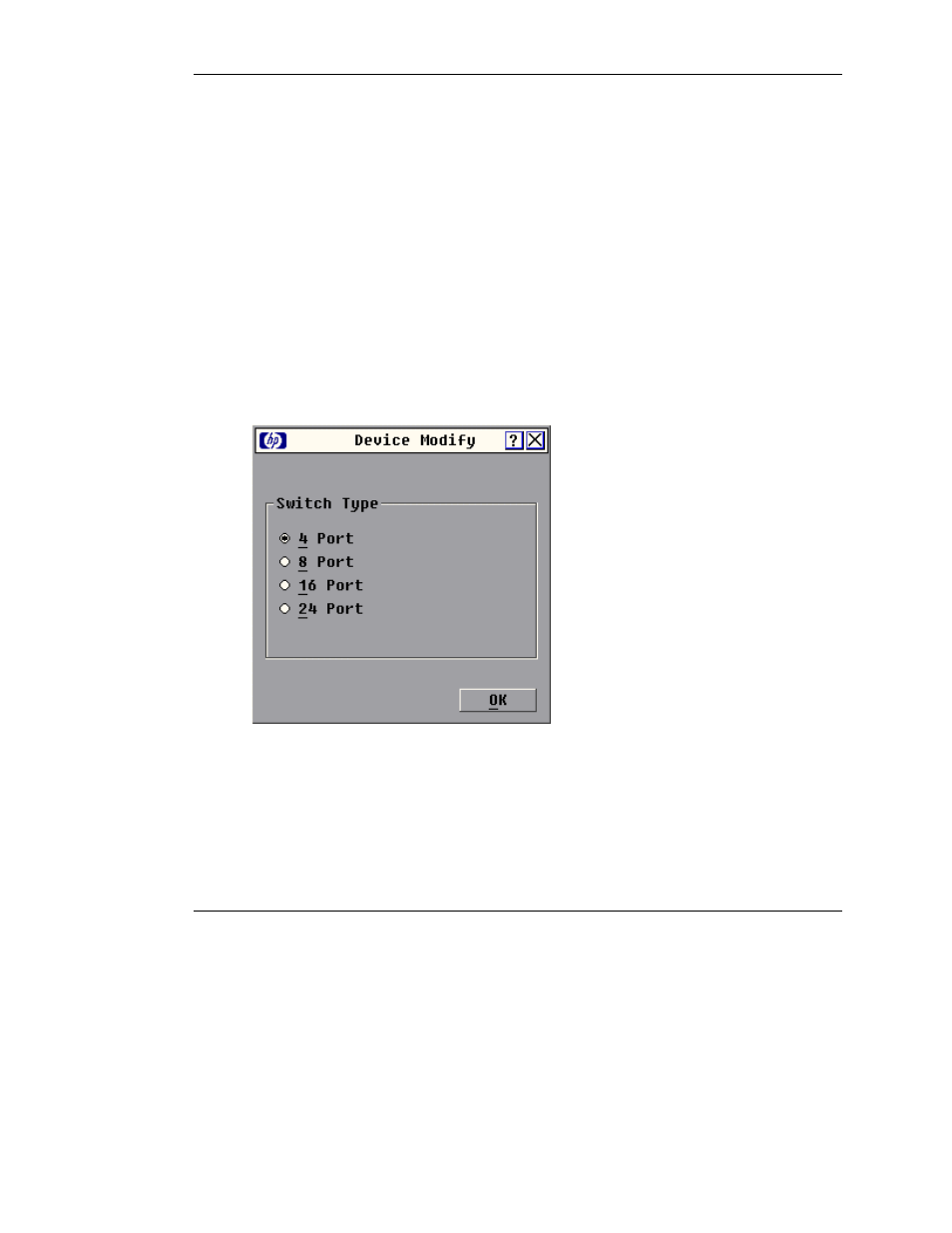

Figure 6-6: Device Modify dialog box
