Local Port Operation
HP IP Console Switch User Guide 6-13
HP CONFIDENTIAL
Writer: Amy L. Laffitte File Name: g-ch6 Local Port Operation.doc
Codename: Eagle Part Number: 263924-002 Last Saved On: 3/31/03 3:17 PM
Accessing Devices Dialog Box
To access the Devices dialog box:
1. Press the Print Scrn key. The Main dialog box is displayed.
2. Click Setup, Devices. The Devices dialog box is displayed.
NOTE: The Modify button is only available if a configurable switch is selected.

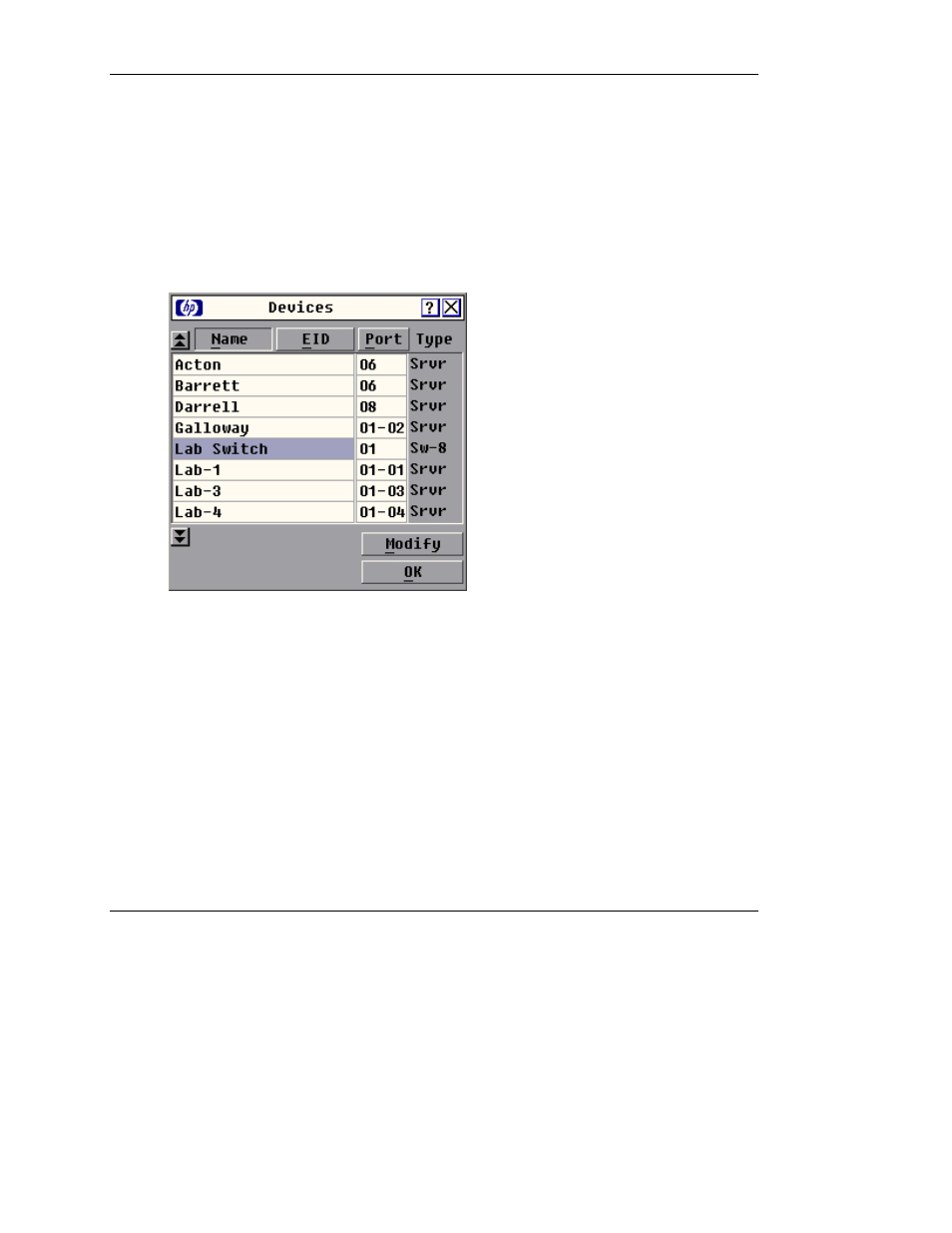

Figure 6-5: Devices dialog box
When the IP Console Switch discovers a cascaded switch, the port numbering
changes to accommodate each server under that switch. For example, if the switch is
connected to port 2, the switch port is listed as 02, and each server under it is
numbered sequentially 02-01, 02-02, and so on.
