Upgrading Firmware using TFTP
HP IP Console Switch User Guide 7-5
HP CONFIDENTIAL
Writer: Amy L. Laffitte File Name: h-ch7 TFTP Downloads.doc
Codename: Eagle Part Number: 263924-002 Last Saved On: 3/31/03 3:11 PM
2. You can use the default settings for the directory with the GET access or
PUT access rights set as indicated in the following procedure. To use the default
settings, select Use Default Settings, then click Exit.
To customize settings, select Customize Settings.
a. To add directories, click Add. The Secure TFTP Directory dialog box
is displayed.
b. Enter the path name of the directory, or click Browse, select a directory, and
then click OK.
c. To enable GET access or PUT access to that directory, select the GET
Access or the PUT Access checkbox.
d. Click OK. The added directory is displayed in the list.

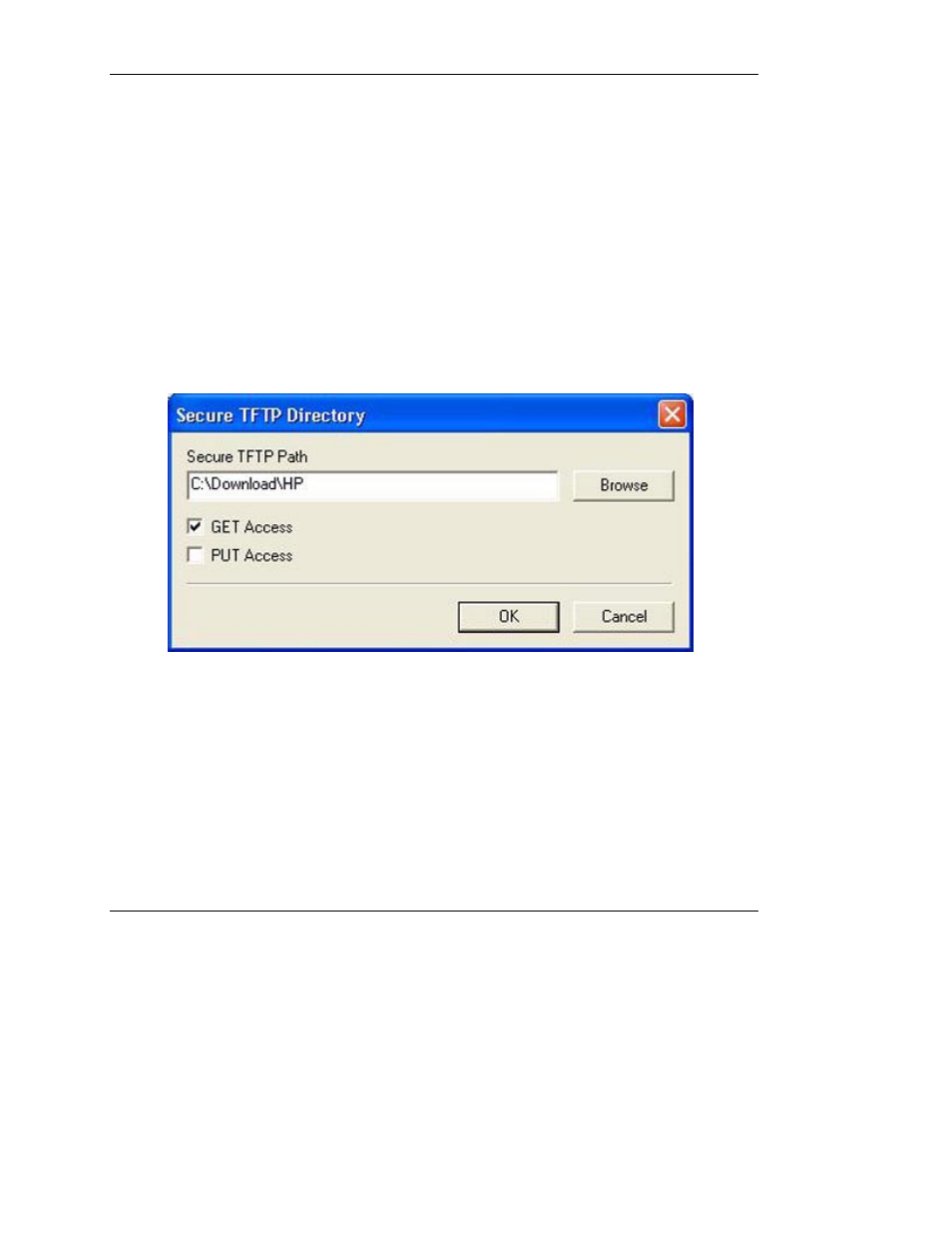

Figure 7-2: Secure TFTP Directory dialog box
