Periodic Routine Maintenance

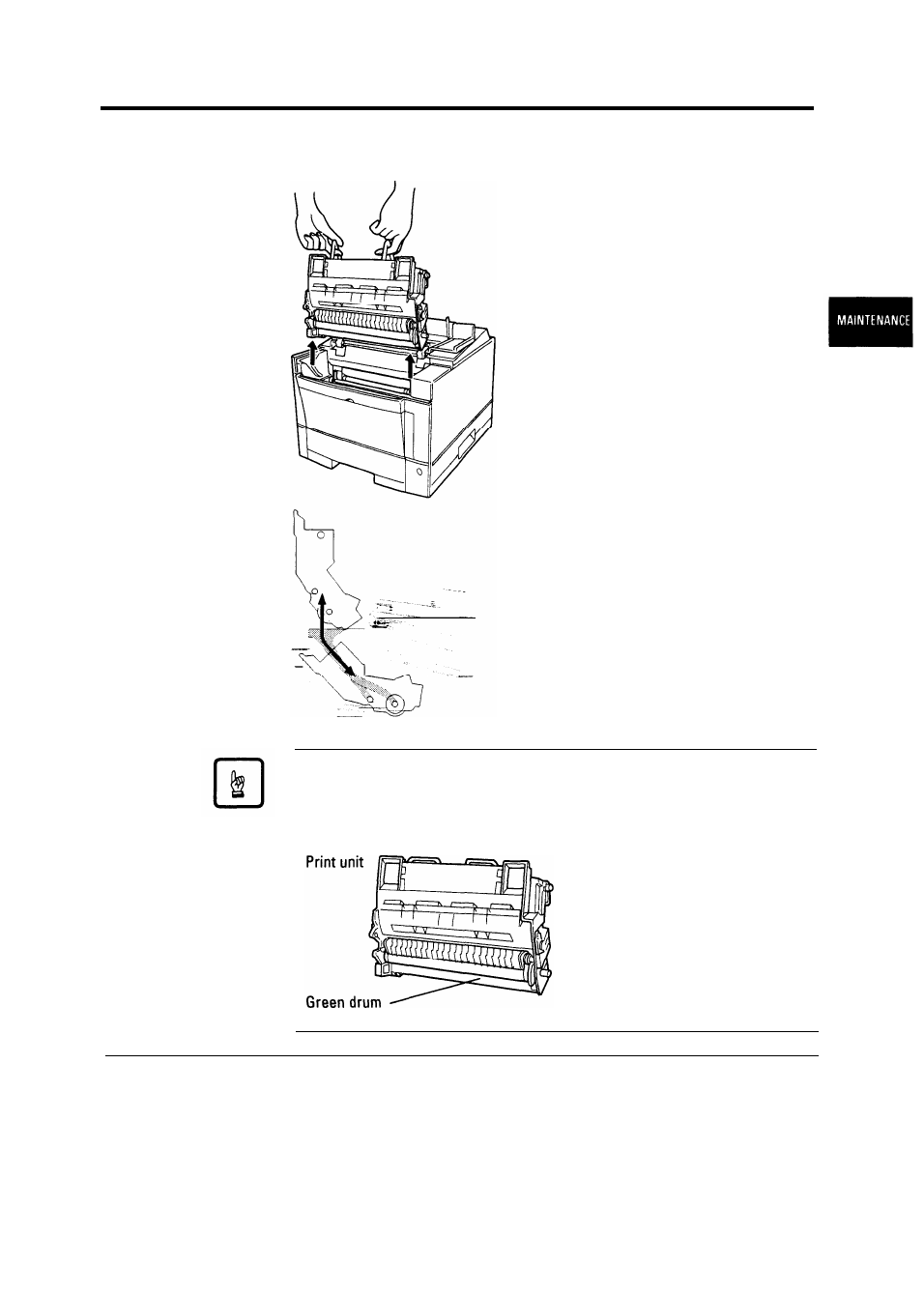

To remove the print unit, follow these steps:
1.
2.
3.
Open the upper door.
Raise the green handles of
the print unit.
Remove the print unit.
Pull the green handles at a
45” angle toward the front
of the printer. This will
disengage the print unit,
allowing easy removal.
When th e print unit begins
to move, gently lift it up
and out.
If you want to reuse the
print unit, be careful not to
scratch the green surface of
the drum against the printer
or its parts.
Notice:
If you want to re-use the print unit, do not touch or scratch the
green drum surface after removing the print unit.
To avoid spilling toner, be
sure to keep the print unit
upright and keep the toner
bottle mounted on the print
unit.
User’s Manual 4-9
