23

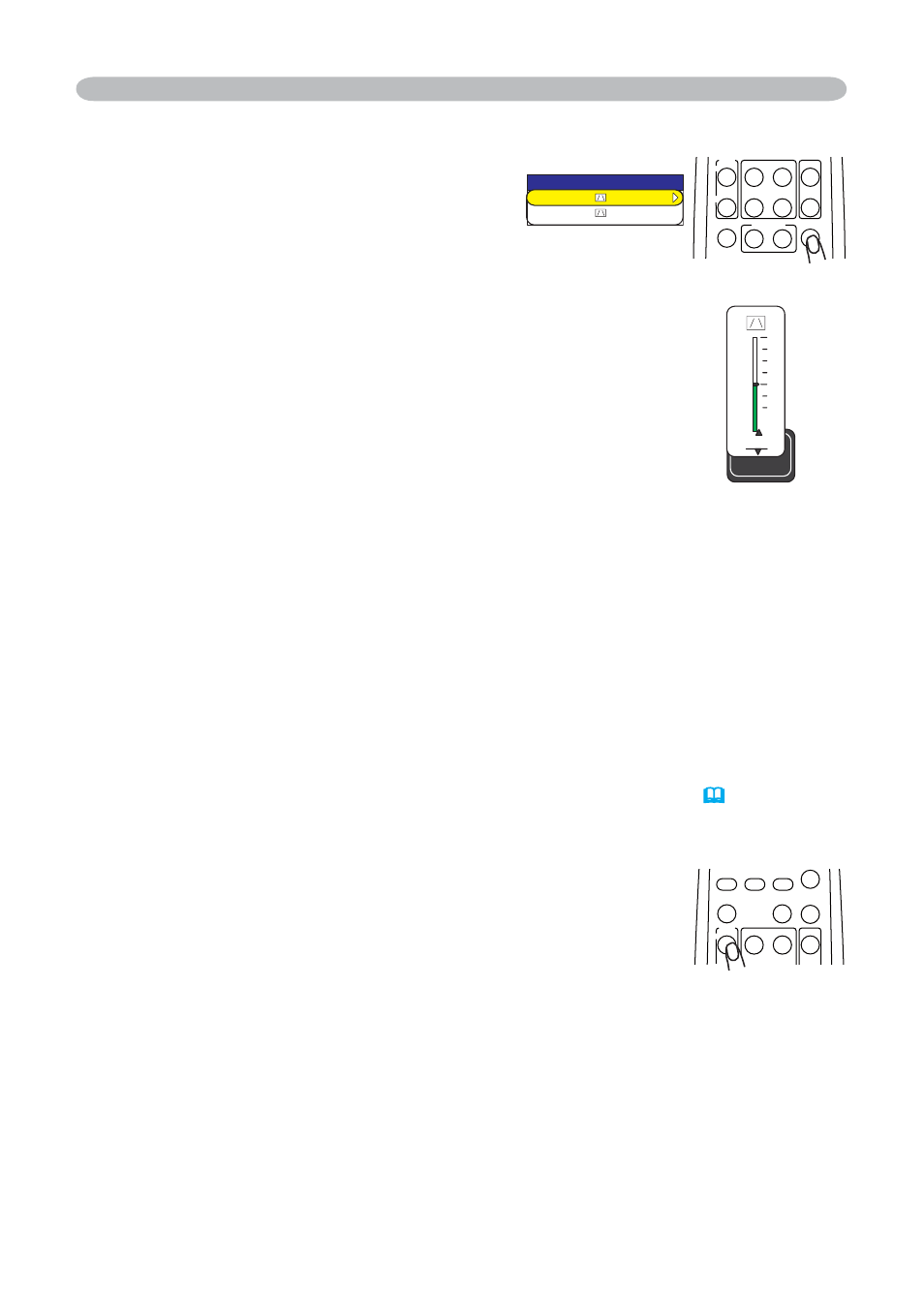

Using the magnify feature
1. Press the ON button of MAGNIFY on the remote control.
The “MAGNIFY” indication will appear on the screen
(although the indication will disappear in several seconds with
no operation), and the projector will enter the MAGNIFY mode.
2. 8VHWKHFXUVRUEXWWRQVŸźWRDGMXVWWKH]RRPOHYHO
To move the zoom area, press the POSITION button in the MAGNIFY mode,
WKHQXVHWKHFXUVRUEXWWRQVŸźŻŹWRPRYHWKHDUHD$QGWR¿QDOL]HWKH
zoom area, press the POSITION button again.
To exit the MAGNIFY mode and restore the screen to normal, press the OFF
button of MAGNIFY on the remote control.
Ɣ7KHSURMHFWRUDXWRPDWLFDOO\H[LWVWKH0$*1,)
changed, or when the display condition is changed.
Ɣ$OWKRXJKLQWKH0$*1,)
will be restored when the projector exits the MAGNIFY mode.
Operating
Correcting the keystone distortions
1. Press the KEYSTONE button on the
remote control. A dialog will appear on the
screen to aid you in correcting the distortion.
2. 8VH WKH FXUVRU EXWWRQV Ÿź WR VHOHFW
$872 RU 0$18$/ RSHUDWLRQ DQG SUHVV WKH EXWWRQ Ź WR
perform the following.
1) AUTO executes automatic vertical keystone correction.
2) MANUAL displays a dialog for vertical keystone correction.
8VHWKHEXWWRQVŸźIRUDGMXVWPHQW
To close the dialog and complete this operation, press
the KEYSTONE button again. Even if you don’t do
anything, the dialog will automatically disappear after
a few seconds.
Ɣ7KHDGMXVWDEOHUDQJHIRUFRUUHFWLRQZLOOYDU\DPRQJLQSXWV)RUVRPHLQSXWWKLV
function may not work well.
Ɣ:KHQ9,19(57RU+ 9,19(57LVVHOHFWHGWRWKH0,5525LWHPLQWKH
SETUP menu, if the projector screen is inclined or angled downward, the Auto
Keystone function may not work correctly.
Ɣ:KHQWKH]RRPDGMXVWPHQWLVVHWWRWKH7(/(WHOHSKRWRIRFXVWKLVFRUUHFWLRQ
may be excessive. This function should be used when the zoom adjustment is
set to the WIDE (wide-angle focus) whenever possible.
ƔWhen vertical degree is almost 0 degree, the automatic keystone distortion
correction may not work.
ƔWhen vertical degree is almost ±30 degree, the automatic keystone distortion
correction may not work well.
ƔThis function will be unavailable when Transition Detector is on ( 50).
HOME PAGE UP
PAGE DOWN END
FREEZE
OFF
ON
MAGNIFY
MUTE
VOLUME
KEYSTONE MY BUTTON
1 2
HOME PAGE UP
PAGE DOWN END
VIDEO RGB SEARCH
ON
MAGNIFY
ASPECT AUTO BLANK
MUTE
VOLUME
-';5610'
#761':'%76'
/#07#.
-';5610'
