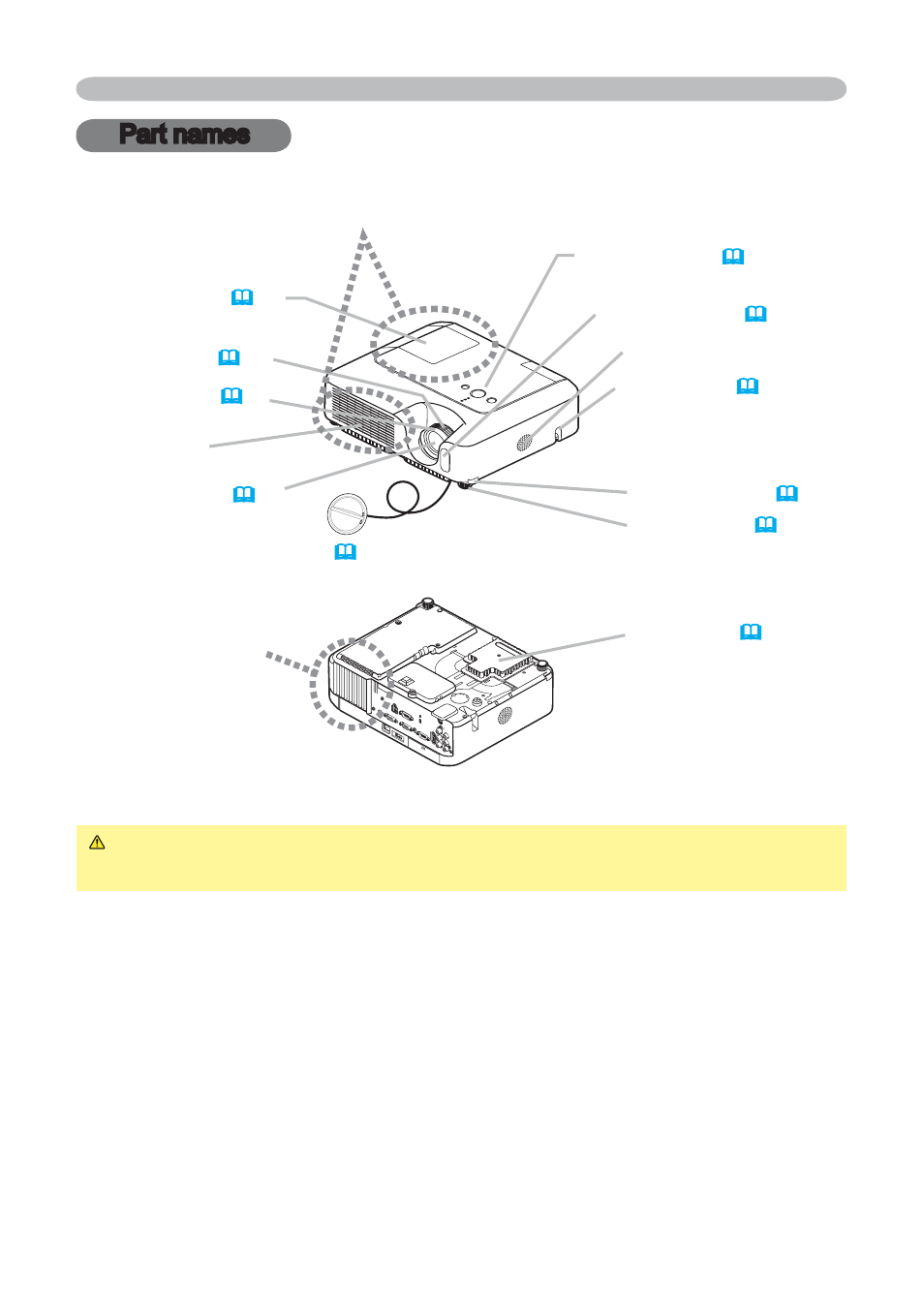

Part names

Part names

Lens (

19)

Filter cover (

59)

$LU¿OWHUDQGLQWDNHYHQW
are inside.)

Elevator button (

10)

Elevator foot (

10)

Remote sensor (

18)

Zoom ring (

21)

Focus ring (

21)

Vent

Projector

Lamp cover (

58)

(Lamp unit is inside.)

Bottom side

Speaker

Lens cover (

4)

Security bar (

11)

(Use for attaching a
commercial anti-theft
chain or wire.)

Control buttons (

7)

WARNING

Ź'XULQJXVHRULPPHGLDWHO\DIWHUXVHGRQRWWRXFKDURXQGWKH

lamp and vents of the projector. (

Ì) It could cause a burn.

AUDIO IN3

AUDIO IN

2

C

B

/P

B

C

R

/P

R

AUDIO IN

1

RGB IN

1

RGB IN

2

SD CARD

AU

X I/O

DC

5V

0.5

A

LAN

CONTR

OL

RGB OUT

AUDIO OUT

USB

VIDEO

Y

S-VIDEO

CLOSE

OPEN

Ì

Front-Right side

М
