This section explains how to connect multiple PCs.
4.1. Utilize “MIU Live Viewer” – Advanced -
4.1.1. Connect multiple PCs with one projector (Multiple PCs
connection)
A projector can be connected with up to 4 PCs to display multiple windows.

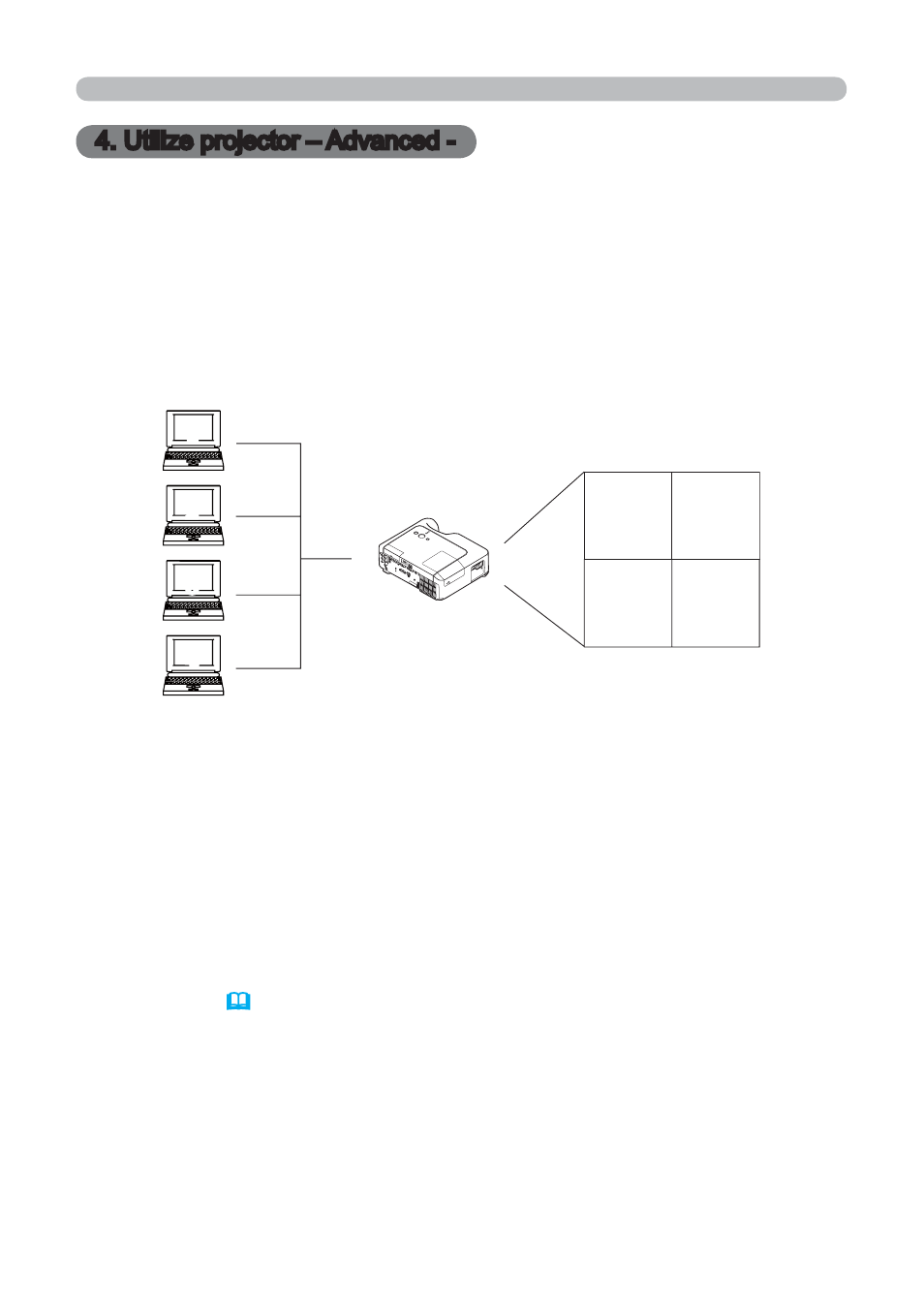

Fig. 4.1.1.a Multiple PCs connection outline
Followings are required for multiple PCs connection.
- From 2 to 4 PCs (“MIU Live Viewer” installation is required to all
PCs to connect.)
- Projector: 1 unit
- Straight LAN cable: Required qty*
- Ethernet hub
* It is required to make all wireless PCs enabling wireless communication when
doing multiple PCs connection as wireless LAN connection. SD-Link11g card for
projector is required. If it is communicated by Infrastructure mode, access point
is necessary. (
16)
