Figure B–14 shows the orientation of each of the removable me-
dia drives in the bracket and the position of the screws holding
the drive bracket in place. The same bracket can be used on all
three drives.
CD-ROM Drive
Floppy Drive
DDS Drive

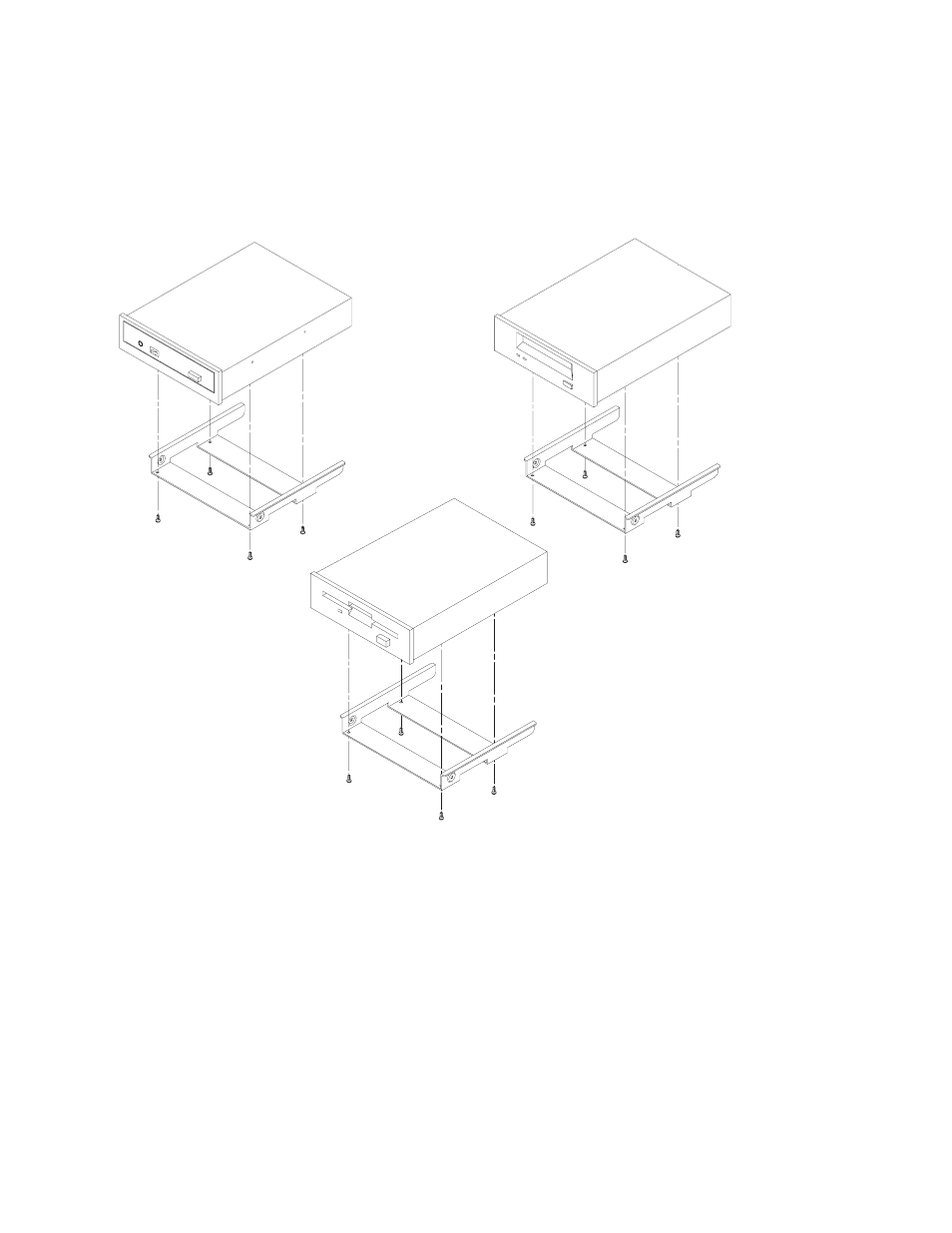

Figure B–14.Attaching Removable Drive Mounting Bracket and Drive Orientation
