DMX_Protocol Tab
The Protocol sub-tab displays the current DMX value being received from a console for
each parameter after any conversion, such as internal self test or protocol conversion.
The DMX parameters are grouped into general categories, each with a separate tab. For more
information on individual parameters and their DMX value ranges, see Appendix A: DMX Protocol
on page A-237.

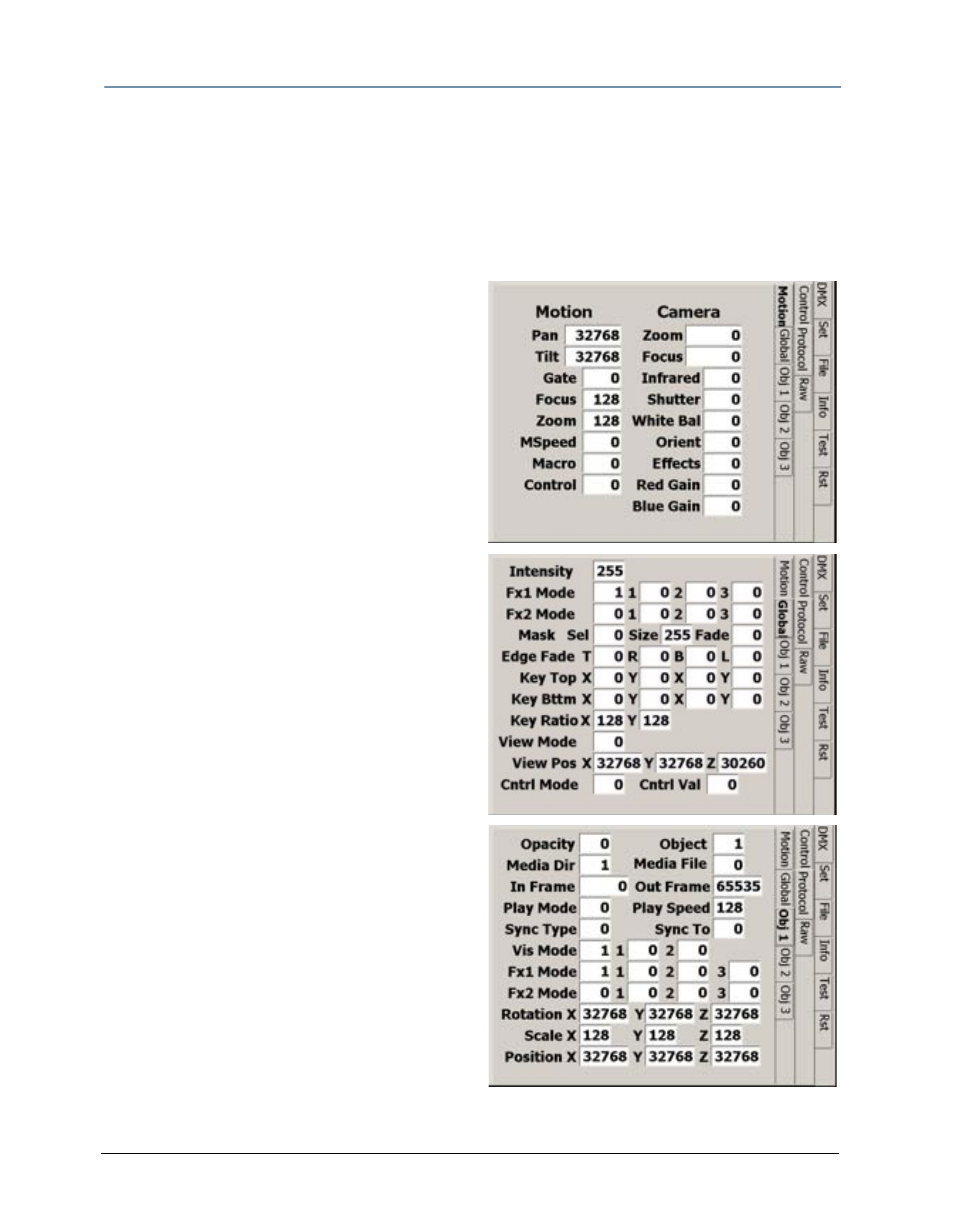

DMX_Protocol_Motion Screen
The Motion sub-tab displays parameters
associated with fixture movement, projector
control and integrated camera functionality.
For more information on specific Motion and
Camera parameters, see:
• Chapter 14: Fixture Motion Functions
• Chapter 15: Live Video Input and Control
DMX_Protocol _Global Screen
The Global sub-tab display the current values for
parameters that affect the composite image.
For more information on specific Global
parameters, see Chapter 11: Global Functions.
DMX_Protocol _Obj Screens
Obj 1, Obj 2, and Obj 3 sub-tabs display
parameters values affecting a single object’s
content. For more information on specific
Graphic Function parameters, see:
• Chapter 7: Graphic Functions: Defining
• Chapter 8: Graphic Functions: Rotation,
• Chapter 8: Graphic Functions: Opacity and
Effects;
